Description
USB 2.0 Extender with CAT5E or CAT6, Black
This USB 2.0 Extender Hub is a 4 port USB 2.0 high speed extension hardware. It allows the user to expend higher performance USB 2.0 peripheral devices from your computer and enable USB 2.0 connections up to 480 Mbps over 60 m (198 FT) with Cat 5e/6 cable.
The USB 2.0 extender hub allows up to four of almost any type of USB device to be placed at remote locations away from the host computer system. This product is a plug and play device, without the need of additional software drivers. The USB2.0 Extender 4 port Hub supports all USB 2.0 and 1.1 devices from printers, scanners, audio devices, keyboards, and other low-powered USB devices.
Features
Features
- Compliant with the Standard USB Specification 2.0
- Support for any high-speed (480 Mb/s), full-speed(12Mb/s) or low-speed (1.5Mb/s) with USB devices
- Operates with all major PC platforms and OS such as Windows OS 2000/ Vista/7/8/10, Mac OS, Linux OS or higher
- True plug and play. No software driver required
- Extend USB device up to 60 M(198 feet) over Cat 5e/6 cable
- Number of devices can be increased using additional US
Applications
- Printers
- Web Cameras
- Microphones
- Keyboards
- Scanners
- Mouses & More
Specifications
Specifications
| Master Unit | Upstream Port | USB Type A Male |
| Downstream Port | Female RJ45 Jack | |
| Power | Bus-Powered | |
| Remote Unit | Upstream Port | USB Type A Female |
| Downstream Port | Female RJ45 Jack | |
| Power | Self-Powered (DC 5V, 2A) | |
| Master Built in Cable Length | 1 Foot | |
| Interconnect Cable | Standard CAT5e/ 6 Network Cable | |
| Max Cable length | 60 Meters or 198 Feet | |
| Operating Temperature | 0°C ~ 40°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Certification | FCC Class B, CE | |
Additional Information
Additional Information
To learn more about our USB Cables here is a link to a page containing more information on our premium USB Cables.
Device Installation
Step 1: Use a per-terminated CAT5e or CAT6 cable to connect the two dongles together.
Step 2: Use a USB A/B (A/Mini B) cable to connect from USB extender dongle receiver to the device.
Step 3: Connect the USB extender dongle transmitter to USB A input on PC and power on the device.

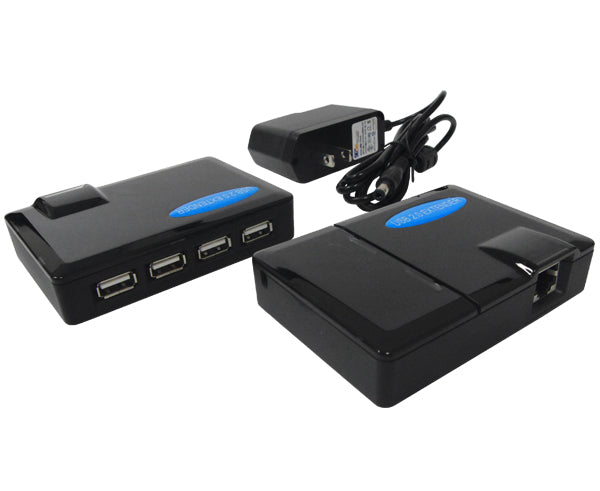

What's in the Box
What's in the Box
- Master Unit with 1 Feet Cable Attached
- Remote Unit
- AC Powered (DC 5V.2A)
