Description

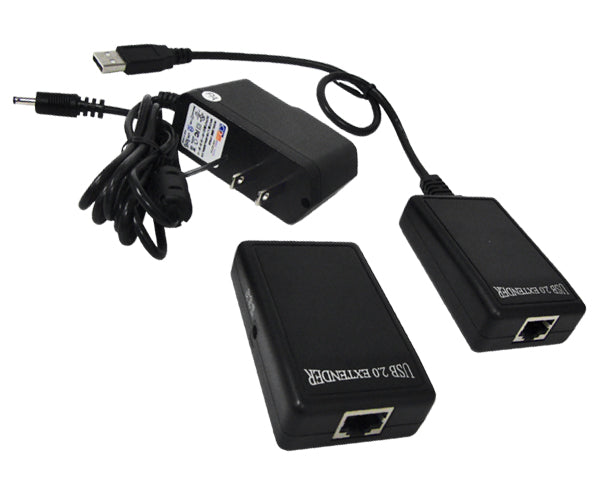

Single Device USB 2.0 Extender with CAT5E or CAT6, Black
This USB 2.0 Extender allows you to extend your USB device up to 60 meters or 198 feet away from your computer and connect up to 480Mbps. This extender is comprised of both master and remote units, which can be connected together to extend the USB connecting distance over a standard CAT5e or CAT6 cable. This product provides dependable, long-lasting USB device performance over long distances, and requires no software installation. This USB 2.0 extender is ideal for use with USB peripherals including all USB device types from keyboards, mice, audio devices and any other USB 2.0 or USB 1.1 devices.
Features
Features
- Compliant with the Standard USB Specification 2.0
- Support for any high-speed (480 Mb/s), full-speed(12Mb/s) or low-speed (1.5Mb/s) with USB devices
- Allows a USB device to have its cable length extended up to 60 meters (198 feet) with CAT5e or CAT6
- Operates with all major PC platforms and OS such as Windows OS 2000/ Vista/7/8/10, Mac OS, Linux OS or higher
- True plug and play. No software driver required
Applications
- Printer
- Web Camera
- Microphone
- Keyboard
- Scanner
- Mouse & More
Specifications
Specifications
| Master Unit | Upstream Port | USB Type A Male |
| Downstream Port | Female RJ45 Jack | |
| Power | Bus-Powered | |
| Remote Unit | Upstream Port | USB Type A Female |
| Downstream Port | Female RJ45 Jack | |
| Power | Self-Powered (DC 5V, 2A) | |
| Master Built in Cable Length | 1 Foot | |
| Interconnect Cable | Standard CAT5e/ 6 Network Cable | |
| Max Cable length | 60 Meters or 198 Feet | |
| Operating Temperature | 0°C ~ 40°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Certification | FCC Class B, CE | |
Additional Information
Additional Information
To learn more about our USB Cables here is a link to a page containing more information on our premium USB Cables.
Device Installation
Step 1: Use a per-terminated CAT5e or CAT6 cable to connect the two dongles together.
Step 2: Use a USB A/B (A/Mini B) cable to connect from USB extender dongle receiver to the device.
Step 3: Connect the USB extender dongle transmitter to USB A input on PC and power on the device.
What's in the Box
What's in the Box
- Master Unit with 1 Feet Cable Attached
- Remote Unit
- AC Powered (DC 5V.2A)
- User Guide
