Description
Multiple Conductor 600V PLTC/Water Block/Sunlight Resistant CL3/FPL Rated
Description

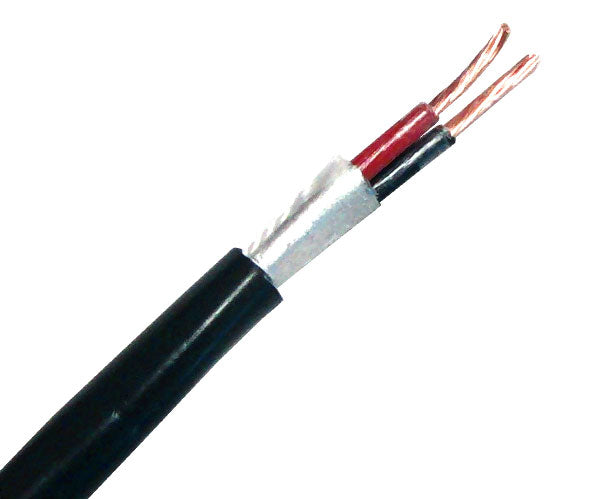

Shielded 16/2 Water Block Cable
Our water-resistant communication cable is ideal as a multi-conductor alarm wire, catering to security systems, intercom systems, sound/audio systems, and power-limited controls. This shielded direct burial cable is crafted with stranded bare copper conductors, PVC/nylon insulation, water block tape, aluminum polyester foil with drain wire, and a black PVC jacket. It also offers resistance to sunlight.
Explore our portfolio of high quality security cables
Shielded
Unshielded
Shielded
Unshielded
Water Block
Applications
Our Bulk Security Alarm Cables, also known as alarm wire, has been designed to meet the installation requirements for alarm systems. Our stock has a wide variety of high quality alarm cables to meet all your needs. Our bulk security cables come with both riser and plenum rated jacket. Be sure to check the building code requirements before purchasing alarm cable. The alarm cable also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.
Where to use Plenum Security Alarm Cable
A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.
Features
Features
- Low Voltage Process Control Circuits
- Power-Limited Circuits
- Power-Limited Fire
- Security Systems
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
- Indoor or Outdoor Use
Applications
- Shielded Direct Burial
- Water Block Tape
- Sun Resistant
- 16/2 AWG - 7 Strand Bare Copper Conductors
- PVC/NYLON Insulation
- 600V PLTC
- Black PVC Jacket
- Qty: 1000 Ft
- Conductor Jacket Color:
- Black
- Red
Specifications
Specifications
Technical Specs: | |
|---|---|
| Conductor: | Bare Copper |
| Insulation: | PVC / NYLON |
| Jacket: | PVC |
| NEC Articles: | 725/760 |
| Voltage Rating: | 600 Volts |
| Temp. Rating: | -39°C to 90°C Dry / 75°C Wet |
| Applications: | Low Voltage Process Control Circuits | Power-Limited Circuits | Power-Limited Fire Protective |
| AWG / Cond | Strand | Outer Jacket Thickness | Nominal OD | Available Putups | ||
| 16/2 | 7 | .040 Inches | 1.02 mm | .328 Inches | 8.33 MM | 500 ft / 1000 ft |
Additional Information
Additional Information
How to Select CM, CMR and CMP Cable?
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
Why Plenum?
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
What's in the Box
What's in the Box
- Security Alarm Cable - Water Block, Sun Resistant Direct Burial, CL3/FPL Rated, 16/2 AWG Stranded (7), Shielded, Black
- 1000 Ft
