1000ft White Shielded Security Alarm Cable: Plenum (CMP) - 18/4 AWG
Description

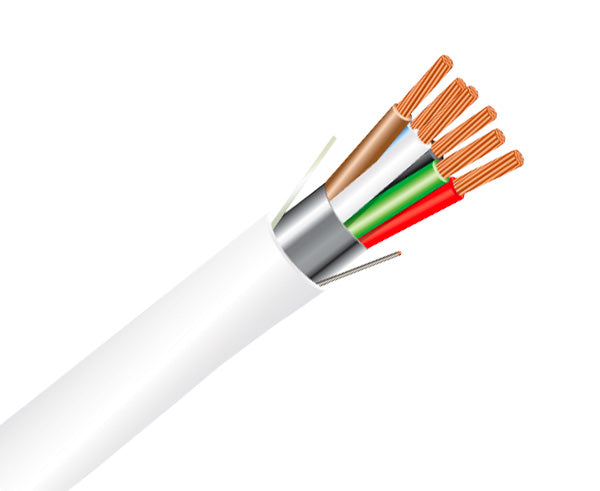

Security Alarm Cable 18/4 (7 Strand) Plenum CMP Rated Shielded 1000' ft
Our 18 AWG 4-Conductor Security Alarm Cable, tailored for security systems, suits intercoms, power limited controls, and sound/audio systems. Made in the USA, it boasts 7 strands of bare copper and a shielded Plenum CMP Rated white jacket. Supplied in 1000 ft. increments, this cable blends quality with convenience.
Our Bulk Security Alarm Cables, or alarm wire, are intricately crafted to meet installation needs. With riser and plenum rated jackets available, we cater to diverse requirements. Ensure compliance with building codes before purchase. Featuring print legends for quick identification, these cables save installation time, making them a preferred choice for various applications.
Explore our portfolio of high quality security cables
Shielded
Unshielded
Shielded
Unshielded
Water Block
Applications
A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.
Features
Features
- 18 AWG 4 Conductors
- 7 Stranded Bare Copper Conductors
- Low Smoke PVC Insulation
- AL Foil Shielded
- Low Smoke White PVC Jacket
- Sequential Footage Marking
- CL3P, CMP FT6 Rated
- ETL Listed
- RoHS Compliant
- NEC Articles
- 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
- 14-12 AWG: FPLP, CL3P
Residential Or Commercial Applications
- Security Systems
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 18 AWG |
| Insulation | PVC |
| Nominal OD | 4.85mm |
| Outer Jacket Diameter | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | White |
| Number of Strands | 7 |
| Inner Conductor Diameter | 1.2mm |
Electrical Characteristics |
|
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information |
|
|---|---|
| Standards | ETL | RoHS | CMP | CL3P |
| Applications | Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls |
| Jacket Printing | 22 AWG 6C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
Additional Information
Additional Information
How to Select CM, CMR and CMP Cable?
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
Why Plenum?
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
What's in the Box
What's in the Box
- Qty 1 pack (1000 ft): Security Alarm Cable - Plenum (CMP) - 22/6 AWG, CL3P, Stranded (7 Strand), Shielded, White
