Description

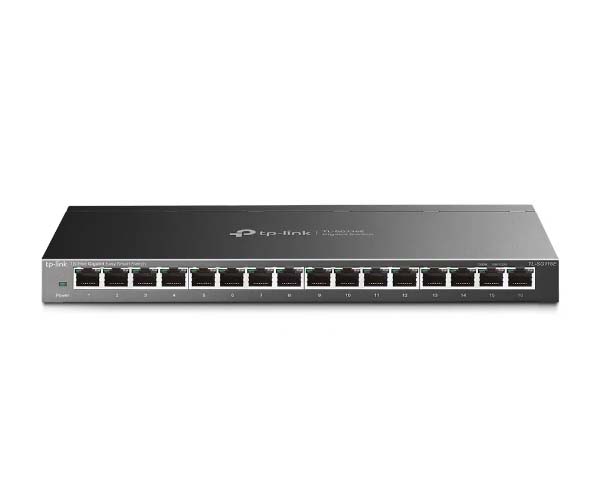

16-Port Gigabit Unmanaged Pro Ethernet Switch
What This Product Does
The TL-SG116E Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG116E can always help you deal with your business quickly and easily.
IGMP Snooping
Administrators can designate the priority of traffic based on QoS to ensure that voice and video applications remain clear and lag-free. IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

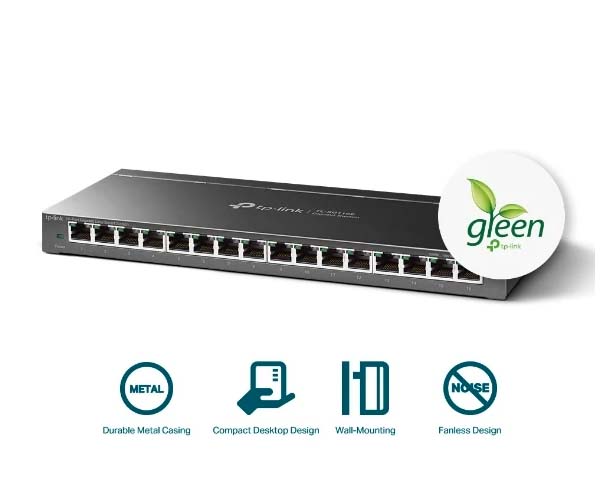

Durable Metal Casin
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Go Green With Your Ethernet
TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Features
Features

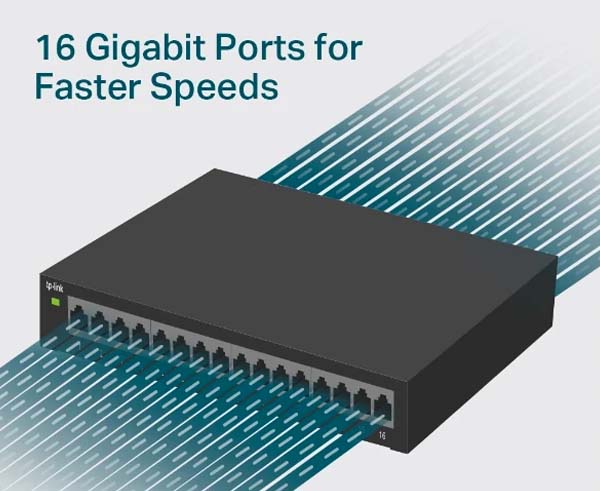

- 16 10/100/1000Mbps RJ45 ports

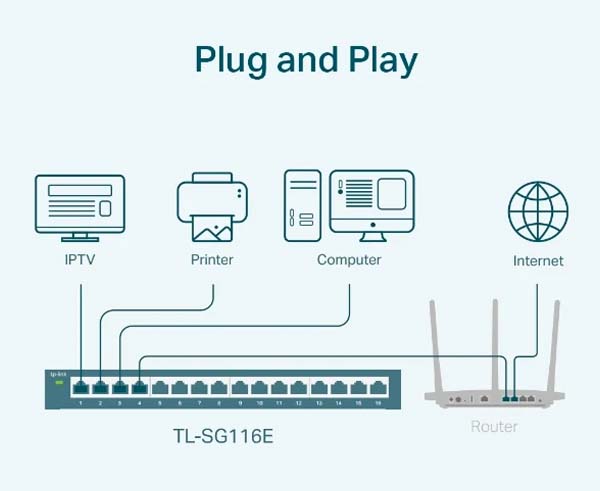

- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Specifications
Specifications
| HARDWARE FEATURES |
||
|---|---|---|
| Interface | 16 x 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX | |
| Fan Quantity | Fanless |
|
| Power Supply | External Power Adapter (Output:12 VDC / 1.0A) |
|
|
Dimensions ( W x D x H ) |
11.3 x 4.9 x 1.02 in (286 x 111.7 x 25.4 mm) | |
| Max Power Consumption | 9.19 W(220V/50Hz) | |
| Max Heat Dissipation | 31.36BTU/h | |
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity | 32 Gbps | |
| Packet Forwarding Rate | 23.81 Mpps | |
| MAC Address Table | 8K |
|
| Packet Buffer Memory | 4.1 Mb | |
| Jumbo Frame | 9 Kb | |
| GENERAL | ||
|---|---|---|
| Certification | FCC, CE, RoHS | |
| Package Contents |
TL-SG116E Power Cord Installation Guide Rubber Feet |
|
| System Requirements | Microsoft® Windows® for running Utility | |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our switches please visit our overview page. Our Switches can be combined with a wide array of products.

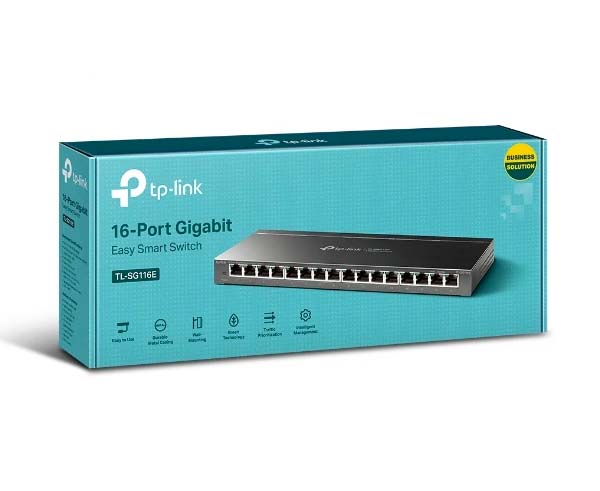

What's In The Box
What's In The Box
- 1 x TL-SG116E
- 1 x Power Cord
- 1 x Installation Guide
- 4 x Rubber Feet
