Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
by Jonard Tools
$299.95
SKU: FLS-50
Description
Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
Designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single mode fiber measurements.
Features
Features
- Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
- Highly stable output power and wavelengths
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths
- Flush button design makes it easy to use and prevents dust from entering the unit
- Shatter-resistant sleeve protects the light source from falls or other damage
- Backlit LCD screen provides a clear display, ideal for dark places
Specifications
Specifications
| Connector Types | 1.25 mm LC and 2.5 mm FC/SC |
| Wavelengths (nm) | 1310, 1550 |
| Typical Output Power | -7 dBm |
| Output Stability | ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr |
| Operating Temperature | -10 ± 60°C |
| Spectral Width | ≤ 10 nm |
| Modulation Frequencies | CW / 270 Hz / 1 kHz / 2 kHz |
| Battery Type | (3) AA 1.5V alkaline batteries |
| Storage Temperature | -25 ± 70°C |
| Dimensions | 7" x 3 3/16" x 1 1/4" (17.78 cm x 8.10 cm x 3.18 cm) |
| Weight | 0.67 lb (304.18 g) |
| UPC # | 811490018655 |
Additional Information
Additional Information
What's In The Box?
What's In The Box?
- Fiber Optic Light Source
- FC Adapter
- LC Adapter
- SC Adapter

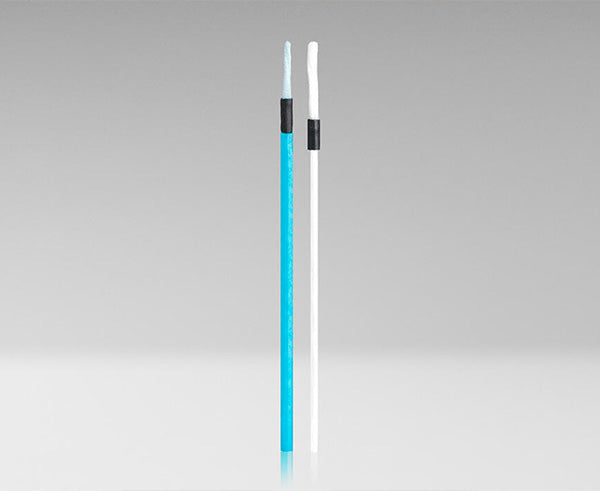

- (2) Cleaning Swabs
- (3) AA Batteries (required for operation)
- Storage Pouch
