Description

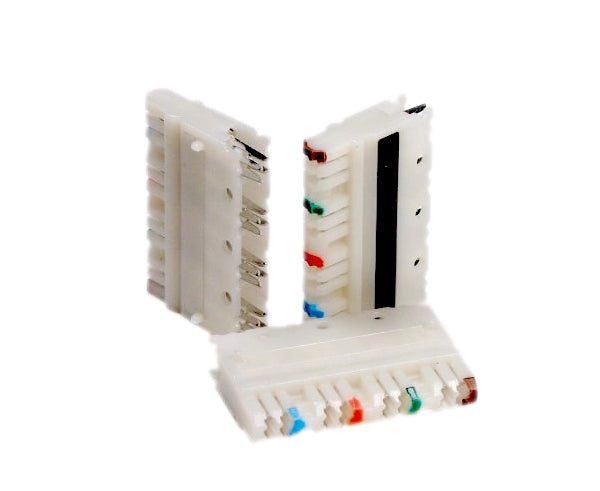

CAT6 610 Connecting Block Clip, 610 Type - 4-Pair
These 4-Pair CAT6 Connecting Block Clips, from Dynacom, work directly with the 610 wiring blocks and the 610 Connecting Blocks by interconnecting two different cables. One cable may be directly terminated on the connecting block and then covered and secured by the top. The 4-Pair Connecting Block Clips have the capability of simply plugging in to the 4-Pair Connecting Block on the 610 wiring block. These CAT6 4-Pair Connecting Block Clips' terminals are color coded for T568B specifications. The 4-Pair Connecting Block Clips in conjunction with CAT6 4-Pair Connecting Blocks can significantly improve the number of connections a 610 wiring block can hold.
Additional Related Items
To complete your network, we have all the products you need, with full end to end solutions for Telco voice systems. We carry a wide array of Punch Down Wiring Blocks, Backboards, and CAT3 Cable.
If you are looking to quickly and easily install your CAT3 network or voice system, we have Pre-Wired Punchdown Blocks, Pre-Loaded Surface Mount Boxes, and Ethernet Splitters.
We also carry Telco tools and equipment for testing the integrity of a CAT3 network such as Telephone Line Testers, Punch Down Termination Tools and Professional Tool Kits.
We also carry a large assortment of items that work with Telco voice systems such as: Amphenol cables, Bridge Clips, Modular Cable, and other accessories that will help make your installation fast, smooth and organized.
Features
Features
- For Use with 610 Punchdown Style Wiring Block
- CAT6 4-Pair
- Color Coded for T568B
Specifications
Specifications
| Specs | |
|---|---|
| A | 1.22 inch |
| B | 0.8 inch |
| C | 0.24 inch |
| Configuration | 4-Pair |
| Termination Type | 610 Punchdown |
| Temperature Range | |
|---|---|
| Storage | -40º to +70ºC |
| Operation | -10º to +60ºC |
| Relative Humidity (Operational) | Maximum Noncondensing 93% |
| Electrical | |
|---|---|
| Insulation Resistance | 500 MΩ min. @ 100V d.c |
| Dielectric Withstanding Voltage | 1000V RMS @ 60Hz for 1 min |
| Spring Wire Contact Resistance | 20 mΩ Max |
| IDC Contact Resistance | 2.5 mΩ Max |
| Mechanical | |
|---|---|
| Total Contact Force | 800 Grams for A 8 Wire Leads Minimum |
| Retention | 50N (11 Ibf) for 60s ± 5s |
| Insertion / Extraction Life | 750 Cycles Minimum |
| IDC Wire Gauge | 22 ~ 26 AWG |
| Physical | |
|---|---|
| Housing / Bezel | High-Impact, Flame-Retardant Plastic, UL-94V0 |
| Spring Wire | Phosphor Bronze Alloy Plated with 50 Micro-inch of Gold Over 70~100 Micro-inch of Nickel |
| IDC | Brass Plated with 100 Micro-inch of Sn |
Additional Information
Telco Block Accessories
Telco blocks are utilized to connect phone systems to data networks. There are two popular forms of telco blocks: the 66 block and the 110 block. The 66 block is quite common in modern phone systems, as they simplify connecting multiple phone lines. The 66 block is also referred to as B-blocks, M-blocks, and as split-50 blocks. We also have Cable Distribution Spools, or mushroom posts for managing your cross connect wire. It is designed for mounting onto walls or other surfaces to help support and guide your cross connect wire. Our cable distribution spools are also ideal for CAT3 cable for telephone applications.
To learn more about our Telco Block Accessories please visit our overview page. Our CAT6 Connecting Blocks can be combined with a wide array of products such as:
- 66 Block Wood Backboard
- CAT5E 110 Field Termination Kits
- CAT6 610 Connecting Block Clips
- Mushroom Board
- 66 Wiring Block
What’s In The Box
What’s In The Box
Minimum Order Requirement:- Qty 1 - Package of (105) 4-Pair CAT6 Connecting Block Clips
