This unit requires a SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.
Description
What This Product Does
How This Product Works

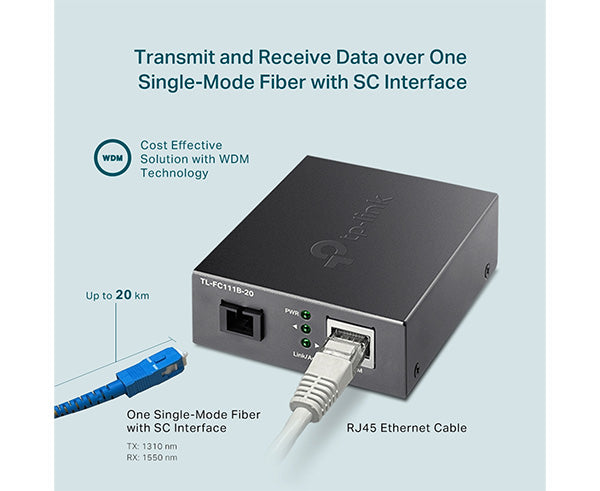

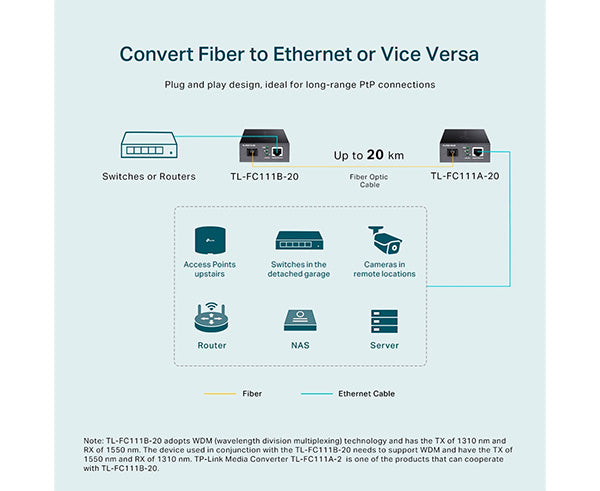

TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.
Features
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX Standards
- Auto-negotiation of Half-duplex/Full-duplex Transfer Mode
- 9/125 μm SMF (Single Mode Fiber)
- Bidirectional WDM Communication on a Single Fiber
- Ranges up to 20km (12.4 Miles)
- Work with TL-FC111B-20 as a Pair
Specifications
Specifications
|
Standards and Protocols |
IEEE802.3, IEEE802.3i, IEEE802.3u |
|
Operating Temperature |
0˚C to 50˚C (32˚F to 122˚F) |
|
Storage Temperature |
-40˚C to 70˚C (-40˚F to 158˚F) |
|
Operating Humidity |
10% to 90% RH Non-condensing |
|
Storage Humidity |
5% to 90% RH Non-condensing |
|
Interface |
1× 100 Mbps SC Fiber Port 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
|
Network Media |
100BASE-Tx: 2-pair UTP/STP of Cat. 5 or Above (≤100 m) |
|
Power Supply |
External Power Adapter: 5 V/0.6 A |
|
LED |
PWR, Link/Act |
|

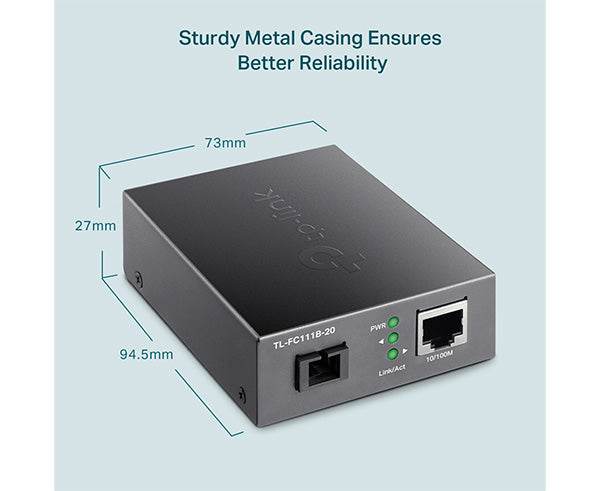

Dimensions ( W x D x H ) |
94.5*73*27 mm |
|
Wave Length |
1310 nm TX, 1550 nm RX |
|
Standards and Protocols |
IEEE 802.3, IEEE 802.3i, IEEE802.3u |
|
Basic Function |
Auto-negotiation of Half-duplex / Full-duplex Transfer Mode Full-duplex Flow Control (IEEE 802.3x) Half-duplex Flow Control (Backpressure) Extends Fiber Distance up to 20km (12.4 miles) |
|

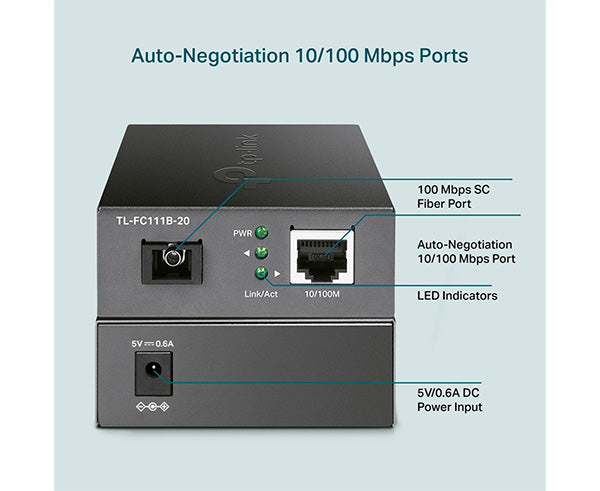

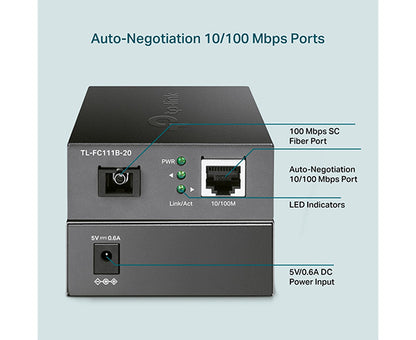

Ports |
1x 100M Single SC/UPC Port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
|
WDM TX |
1310 nm |
|
WDM RX |
1550 nm |
|
Network Media 10BASE-T |
UTP Category 3, 4, 5 Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |
|
Network Media 100BASE-T |
UTP Category 5, 5e Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |
|
Network Media 100BASE-FX |
Single Mode Fiber |
|
LED Indicators |
PWR, Link/Act |
|
Dimensions (W*D*H) |
3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
|
Power Supply |
External Power Adapter: 5 V/0.6 A |
|
Safety & Emission |
FCC, CE, RoHS |
|
Fiber Type |
9/125 μm Single Mode Fber (≤20 km) |
|
Environment |
Operating Temperature: 0℃~50℃ (32℉~122℉) |
What’s In The Box
What’s In The Box
- Media Converter TL-FC111B-20
- Power Adapter
- Installation Guide
