Description
10-Port Gigabit Easy Smart Switch with 8-Port PoE+
The TL-SG1210MPE 10-Port Gigabit PoE+ Compliant Managed Network Switch is compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123W PoE power budget for the eight Gigabit PoE+ ports means it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Multiple Application Scenarios
The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

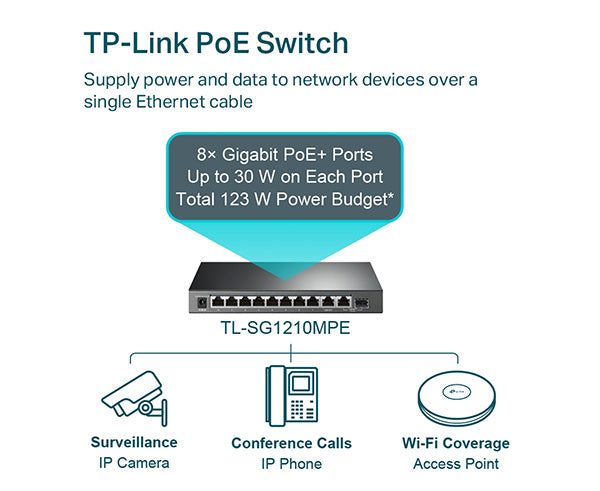

Dedicated 8 PoE+ Ports (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget* for the 8× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

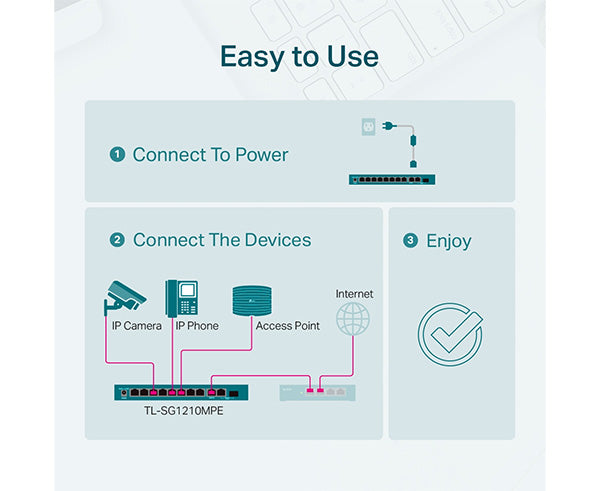

Easy to Use
-
Plug In
-
Connect Devices
-
Enjoy
Value-Added Features Bring Unexpected Experiences
- QoS for a Lag-Free Experience - Ensures smooth traffic for latency-sensitive applications, such as voice and video
-
IGMP Snooping for Multicast Optimization - Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
-
VLAN for Security - Helps to create network with higher security and better overall performance by dividing network into smaller groups
Making Management Easy
TL-SG1210MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1210MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Features Guarantee Stable Operation

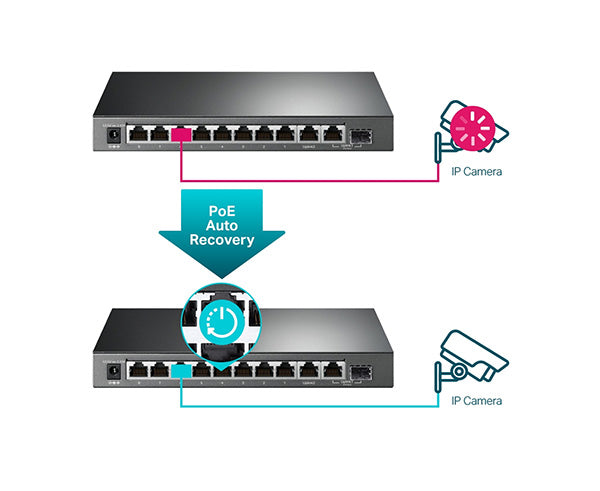

- System Self-Healing with PoE Auto Recovery - The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
- Intelligent Power Management to Prevent Power Overload -Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 123 W. This protects the device from power overload operation.
- Great Compatibility with PD Detection - Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1210MPE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.
Features
Features
- 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Learn more about TP-LINK PoE technology >
Specifications
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z |
| Interface | 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/2.43 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W |

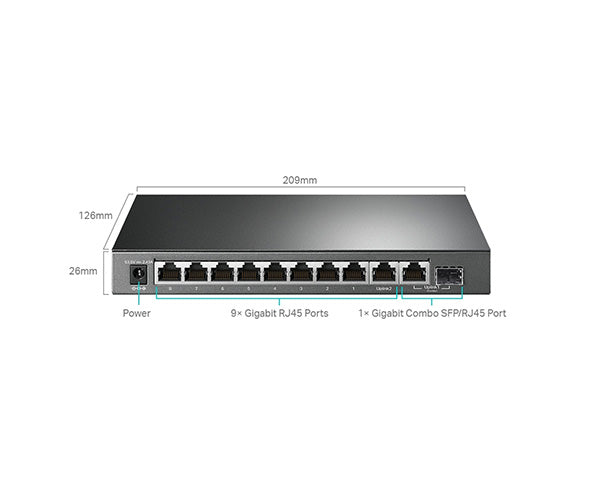

| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | 7.66 W (220V / 50Hz with no PD connected) 141.54 W (220V / 50Hz with 123 W PD connected) |
| Max Heat Dissipation | 26.12 BTU/h (220V / 50Hz with no PD connected) 482.65 BTU/h (220V / 50Hz with 123 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4 K |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| PoE | Extend Mode** PoE Auto Recovery |
| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
What's In The Box
What's In The Box
- TL-SG1210MPE
- Power Adapter
- Installation Guide
- Rubber Feet
