Description

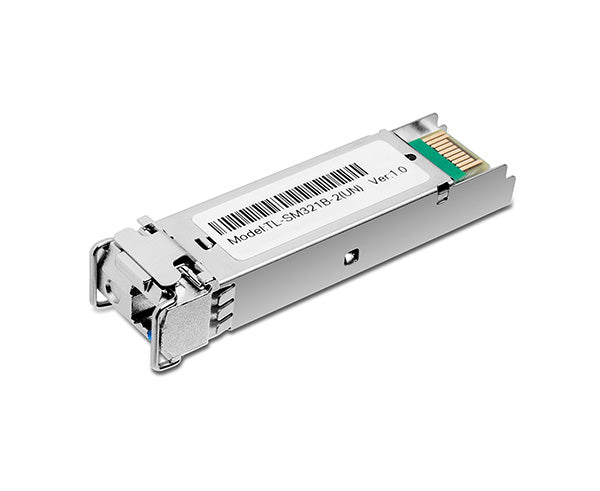

1000Base-BX WDM Bi-Directional SFP Module
What This Product Does

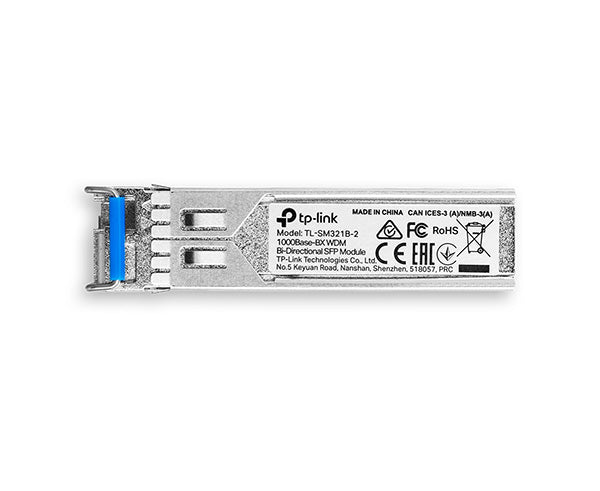

TP-LINK´s TL-SM321A-2 and TL-SM321B-2 is designed to work in a pair to create a on-site gigabit fiber communication up to 2km (2,000 meters). With one single-mode fiber, the pair of modules can create a full-duplex gigabit path between your switches, ;storage devices, and server.

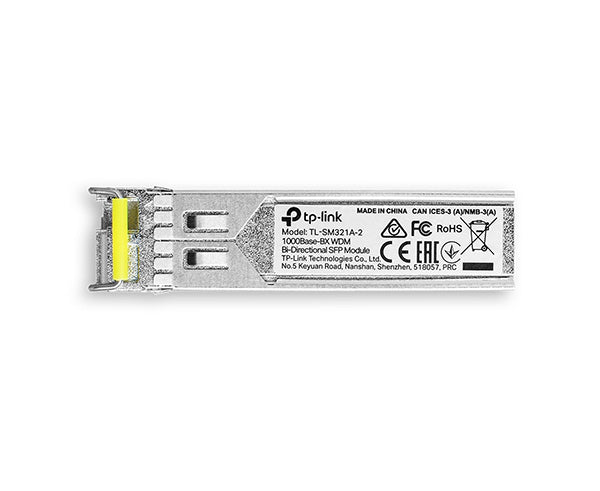

The TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single Mode Fiber).
Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.
TP-Link's TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
Features
Features
- Designed for On-site Gigabit Fiber Communication
- Up to 2 km Transmission Distance with 9/125 μm SMF (Single Mode Fiber)

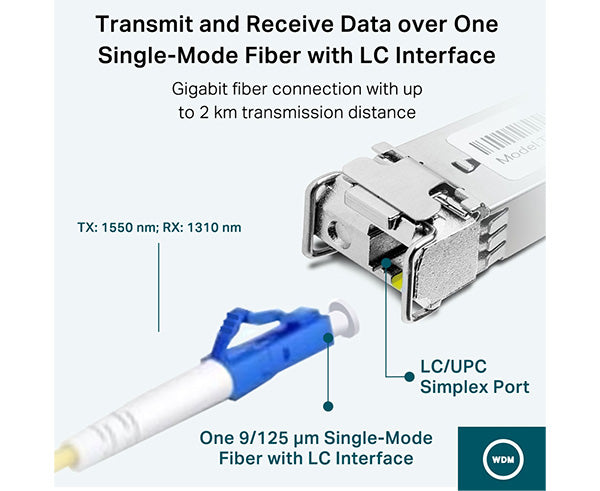

- Bidirectional WDM Communication on a Single Fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable Module Design
- TL-SM321A-2 and TL-SM321B-2 Works as a Pair
Specifications
Specifications
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | TX: 1550 nm RX: 1310 nm |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Fiber Type | 9/125 μm Single Mode |
| Max. Cable Length | 2km |
| Data Rate | 1.25Gbps |
| Port Type | LC Simplex |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
What's in the Box?
What's in the Box?
- Qty 1 - SFP Module TL-SM321A-2 / TL-SM321B-2
- Qty 1 - Installation Guide
