Description

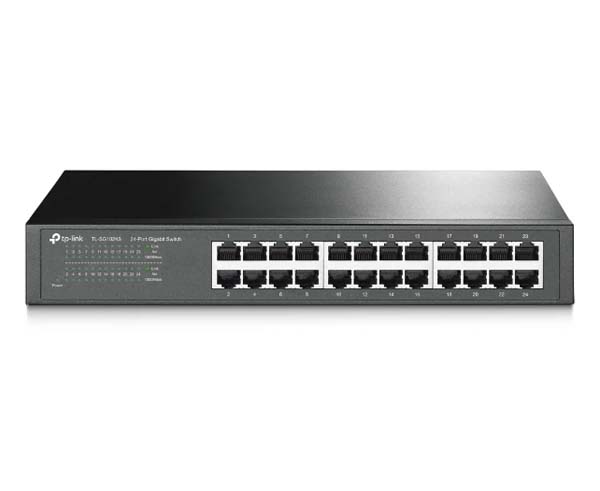

24-Port Gigabit Ethernet Switch Desktop/Rackmount
The TL-SG1024S Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024S can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024S Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file traAll 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024S forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024S work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Features
Features
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Specifications
Specifications
| HARDWARE FEATURES | ||
|---|---|---|
| Interface | 24 x 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX |
|
| Fan Quantity | Fanless | |
| Power Supply | 100-240VAC, 50/60Hz | |
| Dimensions (W x D x H) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
|
| Mountable | Rack Mountable | |
| Max Power Consumption | 13.6 W | |
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity | 48 Gbps |
|
| Packet Forwarding Rate | 35.7 Mpps |
|
| MAC Address Table | 8 K |
|
| Green Technology | Yes | |
| Jumbo Frame | 10 KB |
|
| GENERAL |
||
|---|---|---|
| Certification | FCC, CE, RoHS | |
| Package Contents |
24-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount kit Rubber Feet
|
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:
- CAT6 Ethernet Cables
- CAT6A Ethernet Cables
- CAT5E Ethernet Cables
- PoE Splitter, Fast Ethernet, 1 Port
What's In The Box
What's In The Box
- Qty 1 - 24-Port Gigabit Desktop/Rackmount Switch
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Rackmount Kits
- Qty 1 - Rubber Feet
