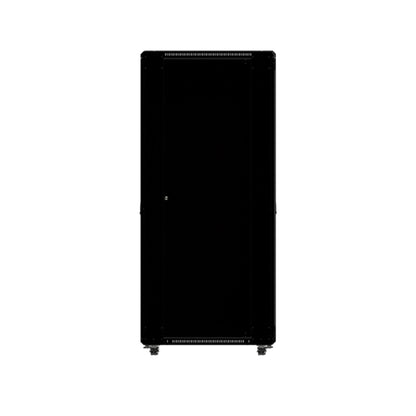

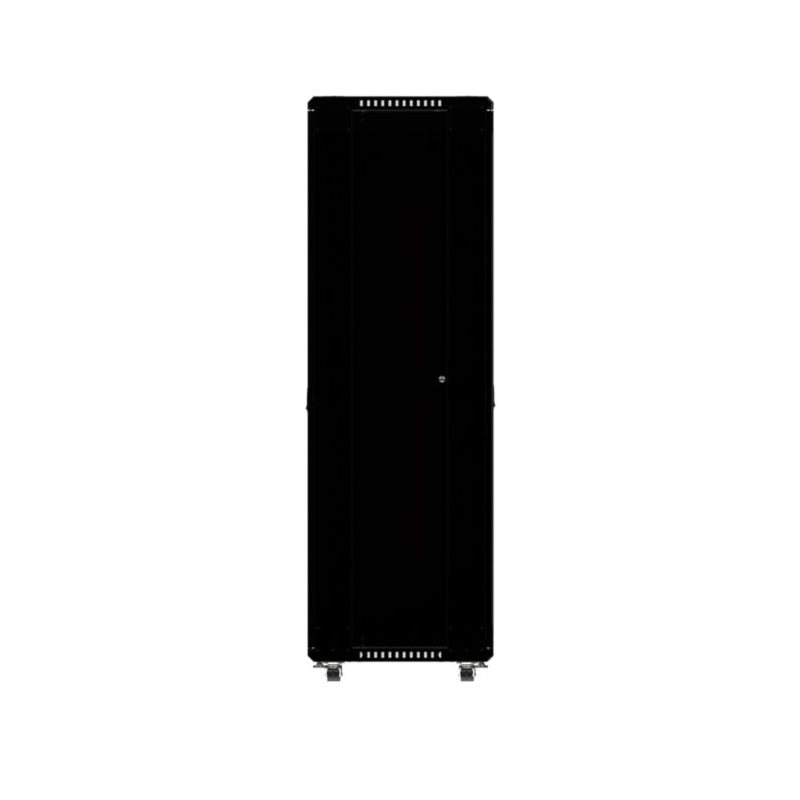

45U LINIER® Server Cabinet - Vented/Vented Doors - 3107 Series
Enclosures 9U and above require freight shipping. Please call us at 951-824-1571 for shipping details.
Cage nuts and rack screws are required for installation of patch panels and other components.
Description

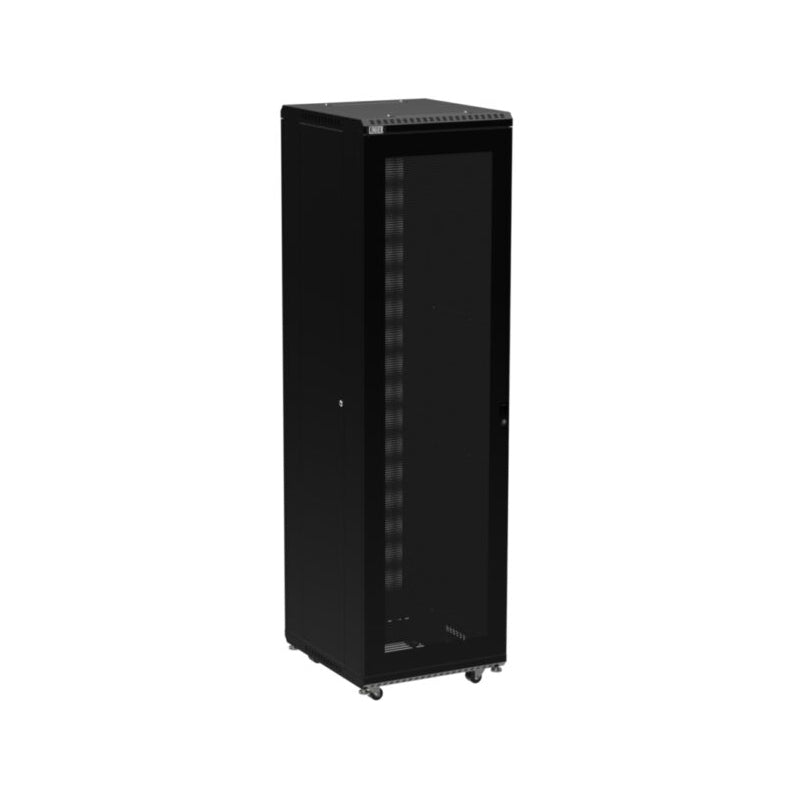

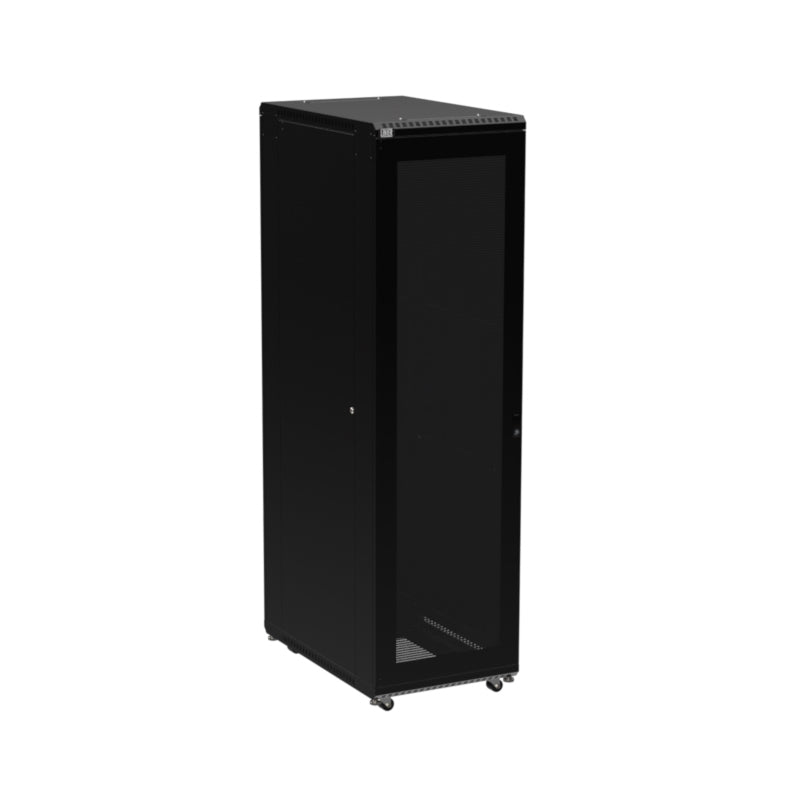

45U LINIER® Server Cabinet - Vented/Vented Doors
The 3107 series is one of Kendall Howard's best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!

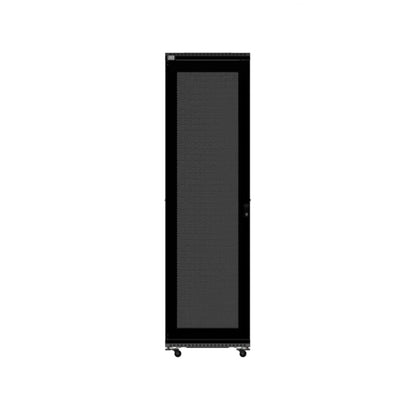

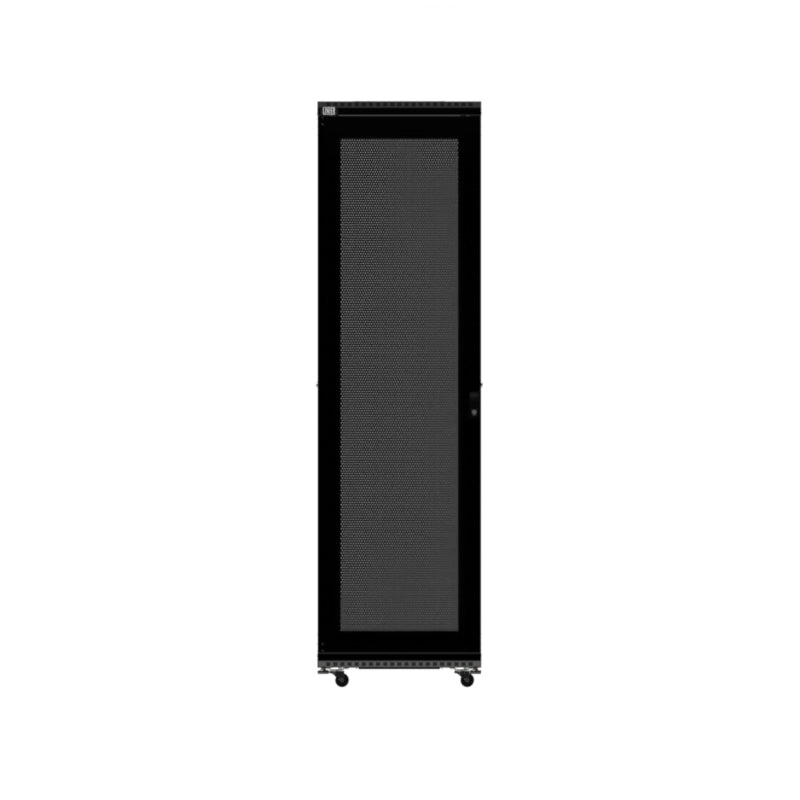

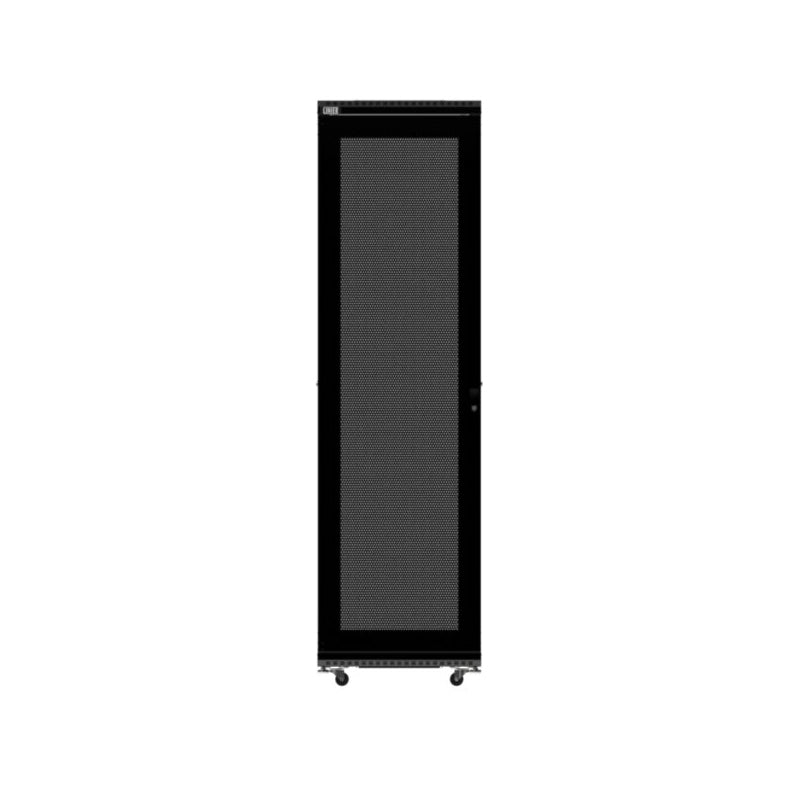

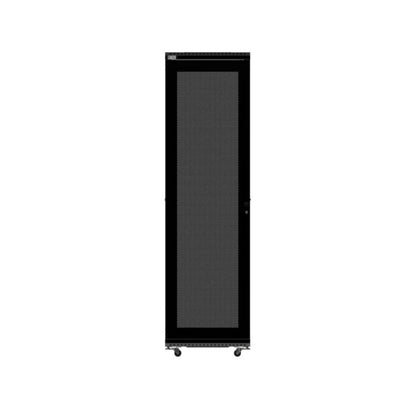

- Includes two locking vented doors
- Removable locking side panels
- 24” depth (Also available with a 36” depth)
- Other sizes available: 22U, 27U, 37U, and 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)

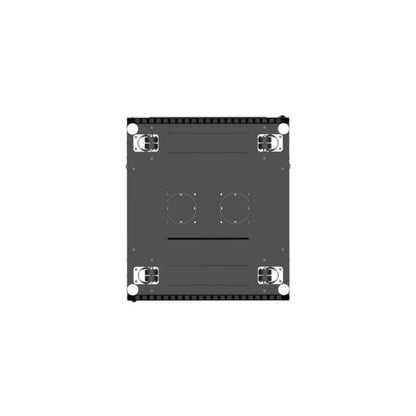

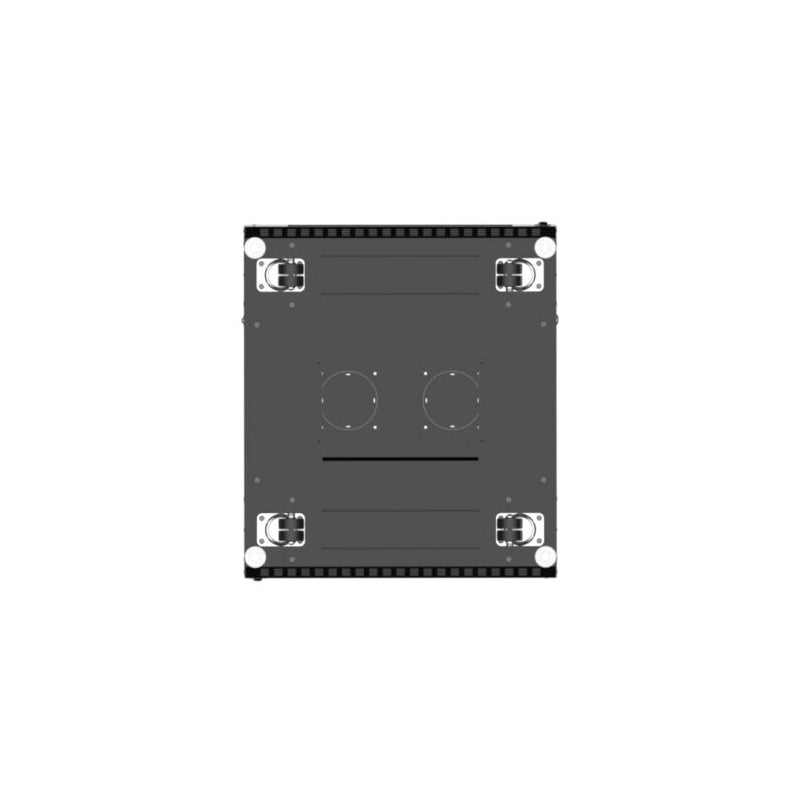

- Top includes removable laser knockouts
- Includes two sets of adjustable cage nut style mounting rails
- Includes preinstalled casters and levelers
- 5-Year Limited Warranty
Features
Easy Installation

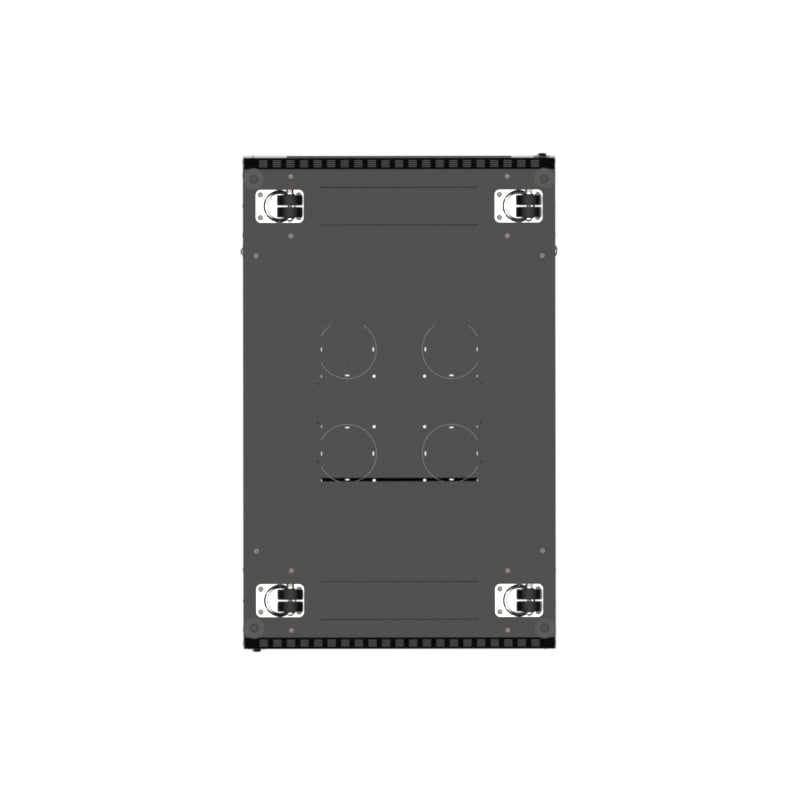

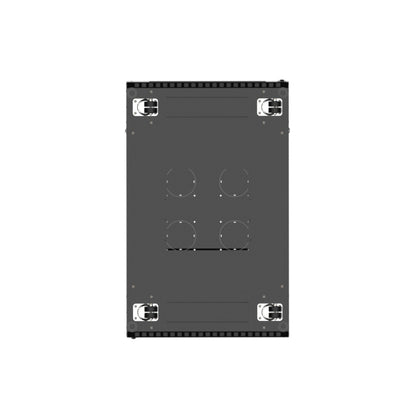

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Removable Cable Access Panels

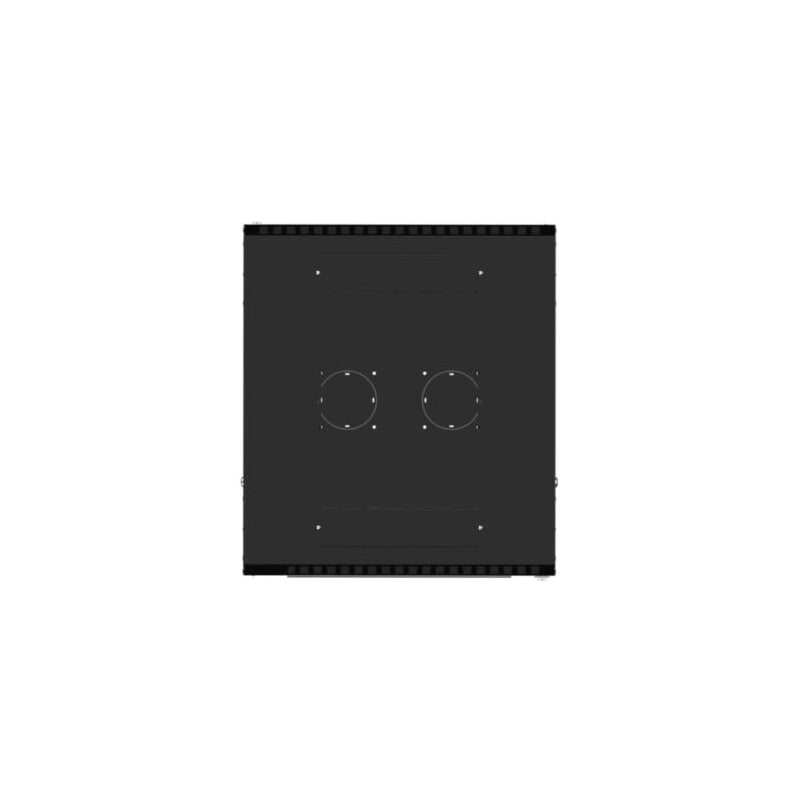

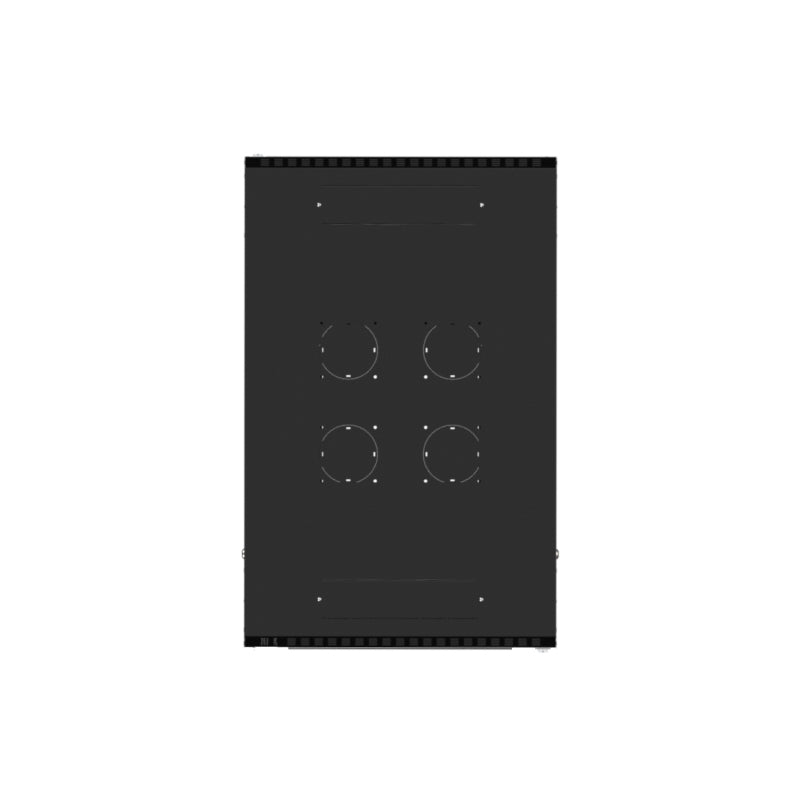

The top of the server cabinet includes removable laser knockouts for cable access and added versatility.
Locking, Removable Side Panels
For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.
Adjustable Rails
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.
Secured System
Both doors are equipped with locks to help protect and secure your valuable equipment.
Specifications
|
Width |
24" or 36" |
|
Depth |
27" (24" usable depth) or 38" (36" usable depth) |
|
Height |
86" with Castors |
|
Weight |
24" - 150 lbs. 36" - 150 lbs. |
|
Material(s) |
(CRS) Cold Rolled Steel |
|
Color/Finish |
Medium Texture Black |
Additional Information
Free Standing Server Cabinets Accessories
Server cabinets are an excellent means of providing both physical and environmental protection for your network equipment. We offer free standing server cabinets with either a vented or tempered glass door. We offer the LINIER® line of free standing server cabinets by Kendall Howard suitable for server storage, battery backups, and switching banks.
To learn more about our Free-Standing Enclosure Racks please visit our overview page. Kendall Howard's Server Enclosures can be combined with a wide array of products such as:
What's in the Box?
What's in the Box?
- Qty 1 - LINIER® Server Cabinet - Vented, Vented Doors
