Description

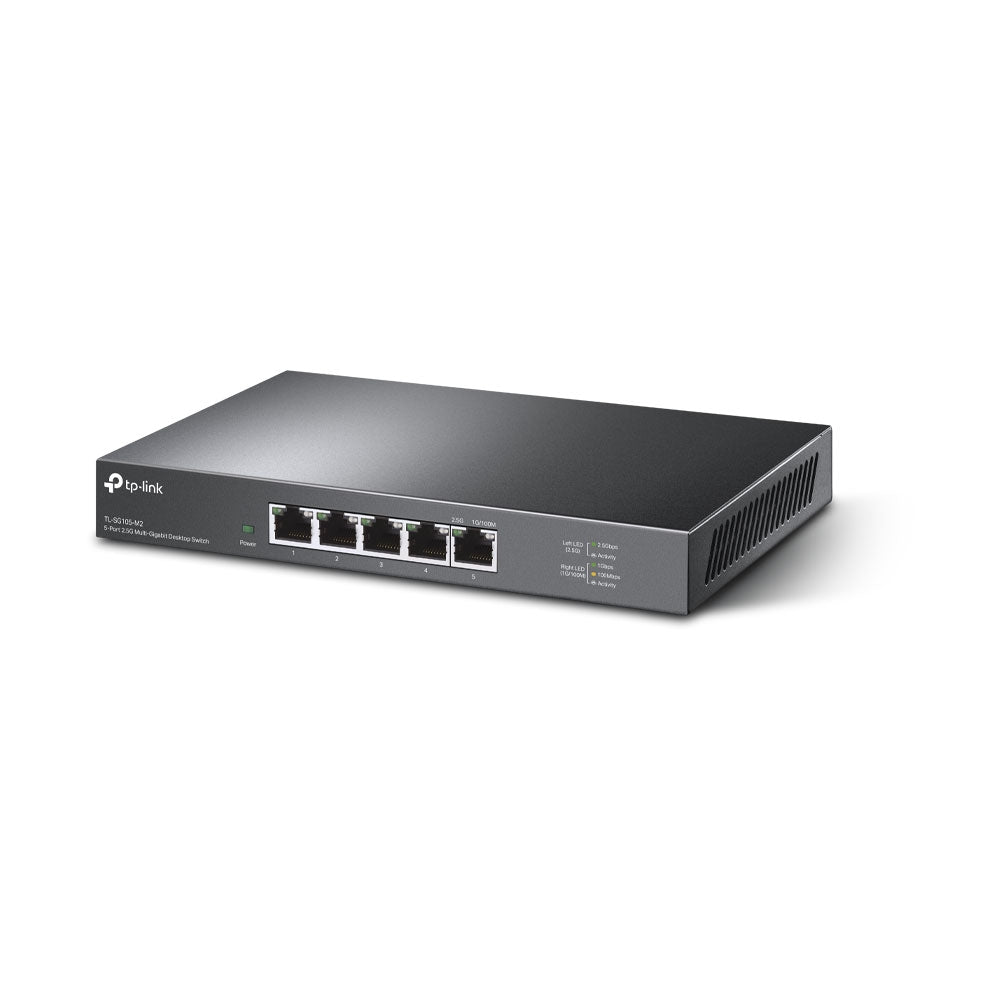

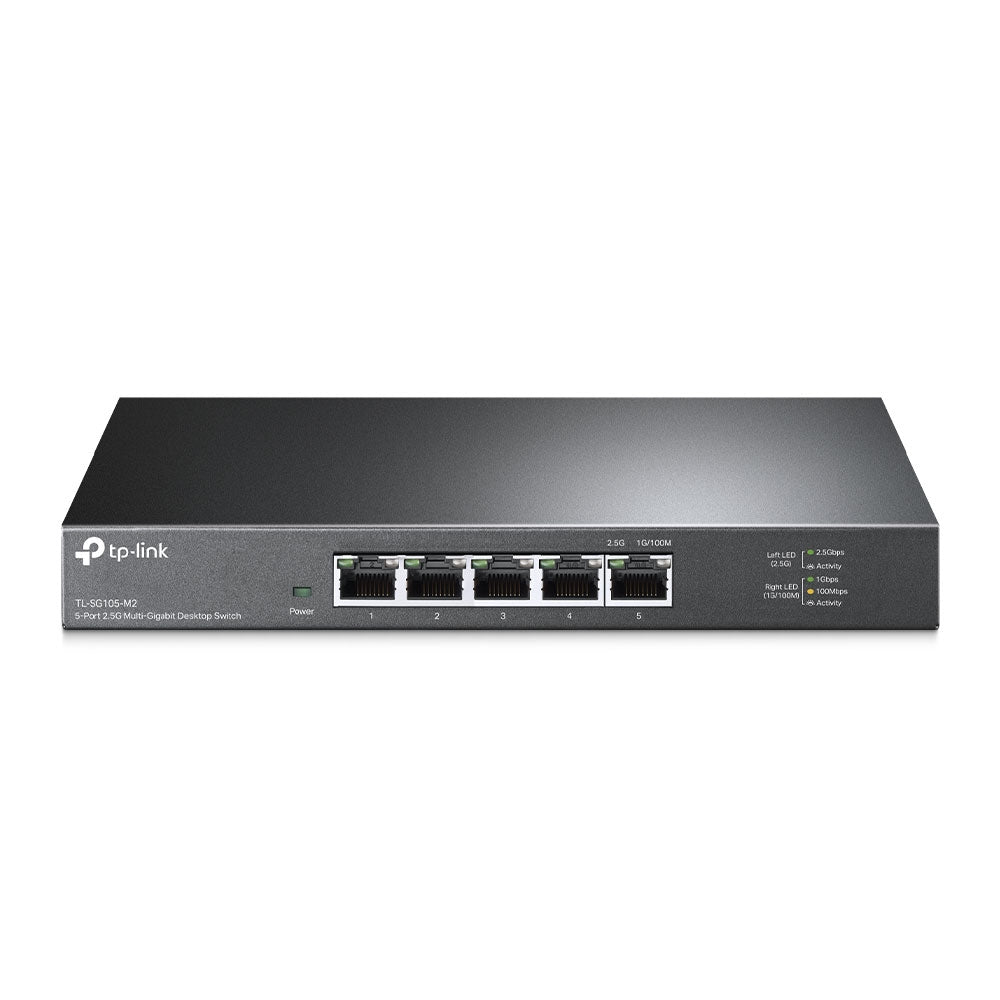

5-Port Desktop Ethernet Switch, 10/100/1000Mbps, Metal Case
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and DevicesAs the flagship 2.5G products, the 5/8-Port desktop switches with 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.
Powerful Performance for Smooth LAN PartiesNever host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Silent Operation with Industry-Leading Fanless DesignThe revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.
Features
Features
- Eight 2.5 Gbps Ports - 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.
- Super-Fast Connections - Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios - Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling - Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**
- Silent Operation - Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play - Allows for easy deployment without the need for a technician.
- Metal Casing - Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specifications
Specifications
| HARDWARE FEATURES |
||
|---|---|---|
| Interface | 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX | |
| Fan Quantity | Fanless | |
| Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) | |
| LED Indicator |
System Power Link/Act indicators per port built into each RJ-45 port |
|
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) | |
| Max Power Consumption | 12.11 W | |
| Max Heat Dissipation | 41.32 BTU/h | |
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity | 25 Gbps | |
| Packet Forwarding Rate |
18.6 Mbps |
|
| MAC Address | 16 K |
|
| Packet Buffer Memory | 1.5 Mb |
|
| Jumbo Frame | 10 KB | |
| GENERAL |
||
|---|---|---|
| Certification | CE, FCC, RoHS |
|
| Package Contents |
• 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 • Power Adapter • Installation Guide • Rubber Feet |
|
| Environment |
• Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
|
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Switches can be combined with a wide array of products such as:
- CAT6 Ethernet Cables
- CAT6A Ethernet Cables
- CAT5E Ethernet Cables
- PoE Splitter, Fast Ethernet, 1 Port
What's In The Box
What's In The Box
- Qty 1 - 5 Port 2.5G Desktop Switch
- Qty 1 - Power Adapter
- Qty 1 - Installation Guide
