RG6 Coaxial Cable, Quad Shield Plenum, CMP, 18 AWG CCS, CATV, 70% / 55% AL Wire Braid, White, 1000ft
Description
RG6 Quad Shielded Plenum Coaxial Cable, 18AWG Copper Clad Steel (CCS) Center Conductor
Our RG6 Quad Shielded Plenum Coaxial Cable is ideal for installation of CATV surveillance cameras and radio frequency applications. Its CL2P-rated jacket allows for in-wall placement. With a 75-ohm impedance, the RG6 Quad Shielded Plenum Coaxial Cable is not intended for high-Gigahertz applications.
This cable is compatible with our CN2-7885-RG6P F-Type RG6 Connector
Applications
Plenum Quad Shielded Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Plenum Coaxial Cable also provides protection of the signal from external electromagnetic interference. Plenum Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.
Product Quality

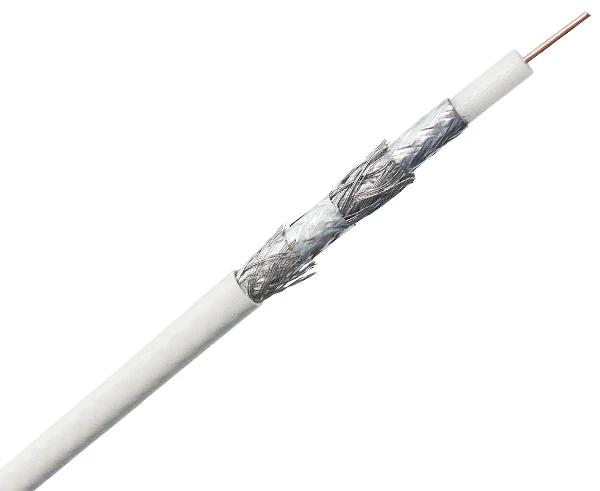

This Quad Shielded Plenum Coaxial Cable consists of a 18 AWG solid copper clad steel (CCS) center conductor that transmits the signal. It is surrounded with a Fluorinated Ethylene-Propylene (FEP) dielectric insulation, and 100% AL Foil + 70% AL Wire Braid / 100% AL Foil + 70% AL Wire Braid shielding. This is covered with a Plenum CMP jacket. Our cables are UL listed, ETL Verified and RoHS Compliant.
Where to use Plenum Coaxial Cable
A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as TV, VCR, DVR, satellite receivers in commercial settings such as schools and hospitals. It is also used with security cameras, and GPS Systems. Since this RG6 Plenum Coaxial ATV transmission or surveillance system and helps eliminate signal loss.
Why Plenum?
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
RG6 Coaxial Cable Options |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
CCTV |
CATV |
||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor+ Messengar |
Single Conductor |
| Solid BC (CM) |
Solid BC (CM) |
Plenum BC (CMP) |
Plenum Siamese BC (CMP) |
Plenum BC (CMP) |
Plenum CCS (CMP) |
Solid BC (CMR) |
Solid CCS (CMR) |
Solid CCS (CMR) |
Outdoor CCS (CMX) |
Features
Features
- Suitable for Digital HDTV Applications, Cable Television (CATVP),
Audio/Video, and Digital Satellite Installations and Outdoor TV Antennas - Sweep-Tested to 3.0 GHz
- 75 Ohm
- 18 AWG Solid Copper Covered Steel (CCS) Conductors
- Foamed FEP Dialectric Core
- AL Foil Bonded + 70% AL Wire Braid / AL Foil + 55% AL Wire Braid
- UL Listed
- ETL Verified
- Plenum CMP Rated Outer Jacket
- Meets Current NEC Guidelines, CATVP, CMP
- RoHS Compliant
- Supplied 1,000ft on Wooden Spool
- Supplied in White
Specifications
Specifications
Physical Characteristics |
|
|---|---|
| Conductor Size: | 18 AWG |
| Conductor Material: | Copper Clad Steel (CCS) |
| Dielectric Material: | Foam FEP |
| Shielding Material: | 100% AL Foil + 70% AL Wire Braid 100% AL Foil + 55% AL Wire Braid |
| Outer Jacket Material: | Plenum CMP |
Electrical Characteristics |
|
|---|---|
| Nominal Impedance: | 75 Ohm |
| Nominal Velocity of Propagation: | 83% |
| Nominal Capacitance: | 16.3 Pf/ft |
Additional Information
Additional Information
To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.
To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.
What's in the Box
What's in the Box
- Qty (1) - RG6 Quad Shield Plenum CMP Coaxial Cable, CATV, 18 AWG CCS, White, 1000ft on Wooden Spool
