MC Cable Connector with insulated throat for 3/8" Flex - Snap2It TM With Ground

$3.06
SKU: 40RASTG
Options
Various lead times may apply to this product. Please contact us for more details.

UL Listed CSA

Some items may require minimum order quantities which can be changed in your shopping cart.

Description

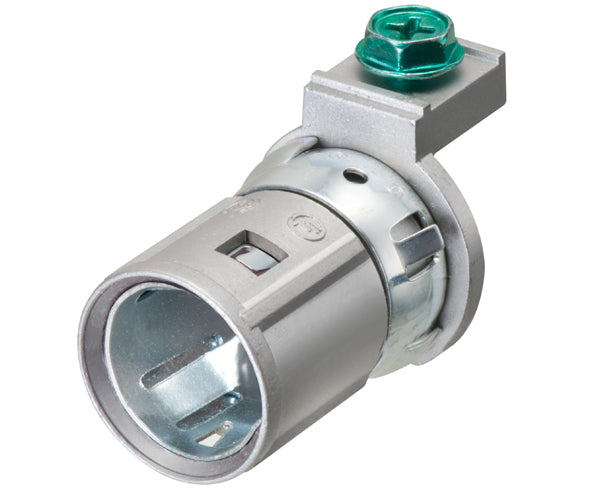

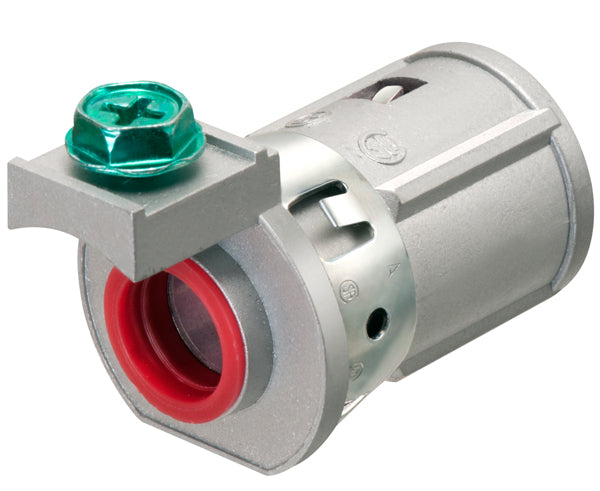

MC Cable Connectors with insulated throat for 3/8" Flex with ground

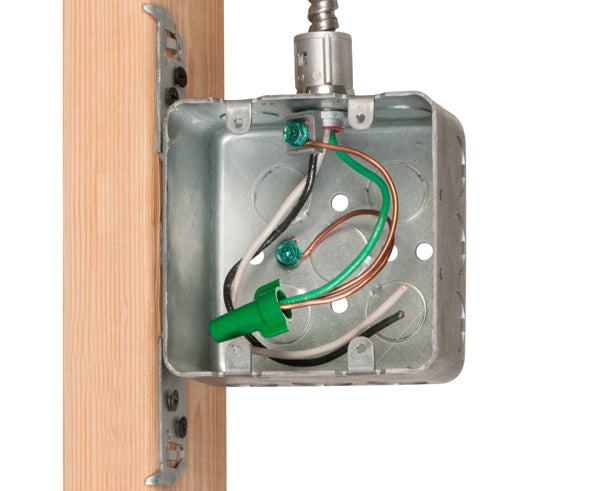

Arlington's new one-piece retrofit SNAP2IT™ fitting with a ground is easy to use in retrofit or new construction applications. Supporting a wide variety of cables, this fitting is ideal for adding additional circuits to a load center. you also get the same labor-savings in a retrofit installation!

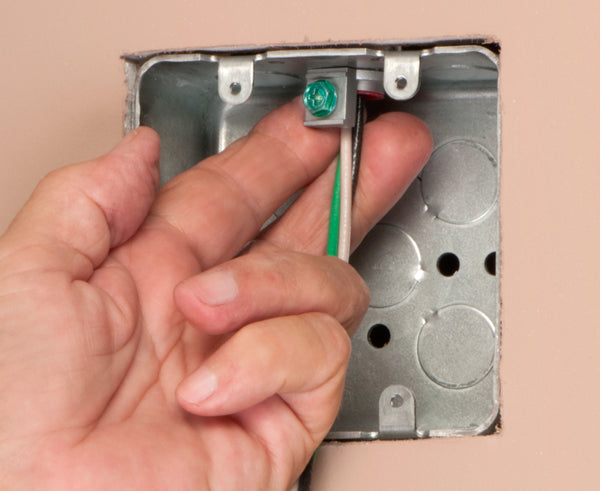

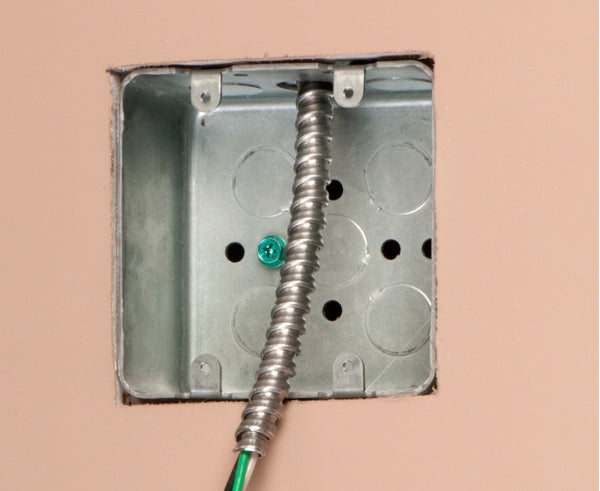

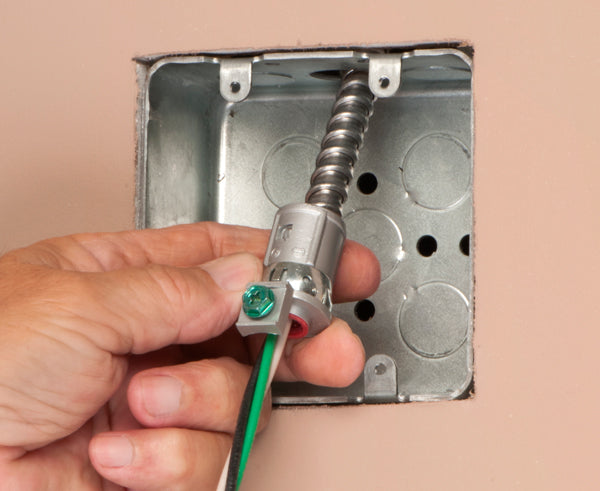

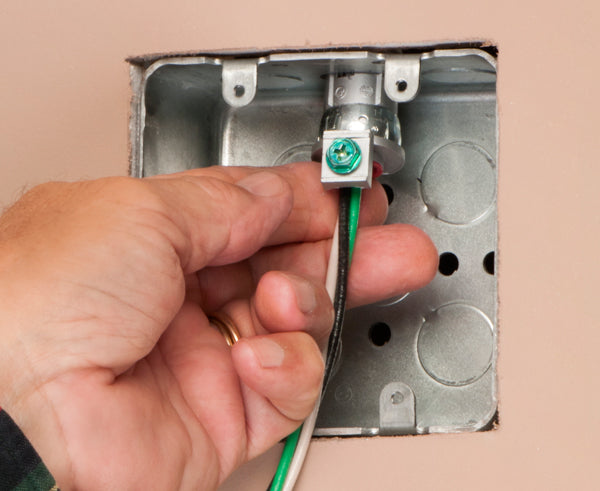

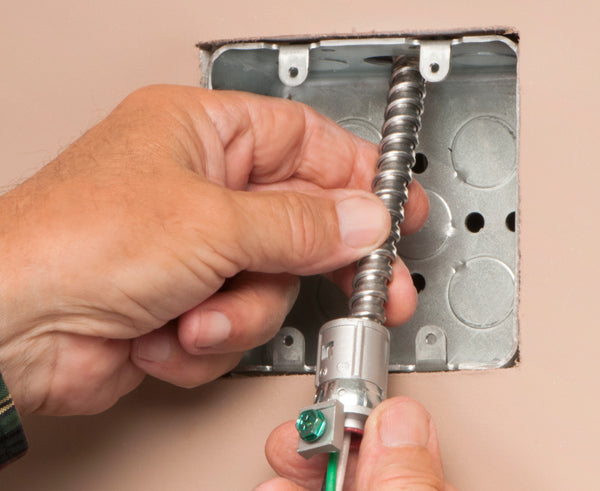

The installation of this product is quick and easy with no tools required, to install in an installed box, pull the cable/conduit through the knockout. slip the fitting onto the cable, then snap the assembly into the box and you are done.

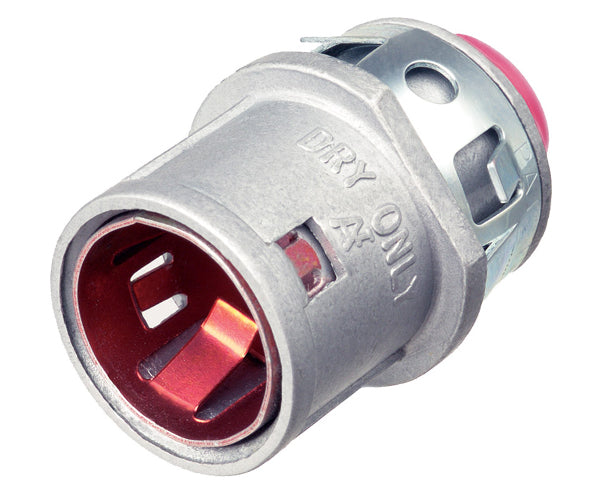

Standard Tang versus Open Tang ( Red Tinting )

Features

Features

  • Widest total cable ranges - These retrofit SNAP2IT™ connectors accommodate cables from 14/2 to 10/3.
  • Widest variety of cables for AC, MC, HCF, MC continuous corrugated aluminum cable, MCI-A cables (steel and aluminum), AC90, ACG90 and FLEX
  • Super-secure installation - No pull-out!
  • Fully assembled one-piece design with insulated throat
  • Built-in ground

Specifications

Specifications

item Number Cable Types Diameter Range Cable Range
38RASTG MC/HCF/AC Steel & Aluminum 0.405 to 0.605 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
38RASTG MCI-A Steel & Aluminum 0.440 to 0.550 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
38RASTG AC90, ACG90 0.440 to 0.550 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
38RASTG Flexible Metal conduit Steel & Aluminum (RWFMC) 3/8* 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG MC/HCF/AC Steel & Aluminum 0.480 to 0.580 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG MCI-A Steel & Aluminum 0.480 to 0.580 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG AC90, ACG90 0.480 to 0.550 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG Flexible Metal Conduit Steel & Aluminum (RWFMC) 3/8* 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3

*CSA Listed With anti-short bushing ONLY

Additional Information

Additional Information

Installation Instructions

  Installation Instructions

What's in the Box?

What's in the Box?

  • Qty 1 - retrofit SNAP2IT™ connectors
