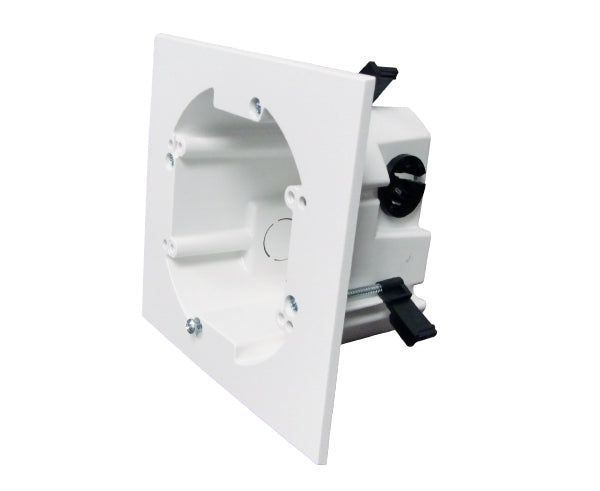

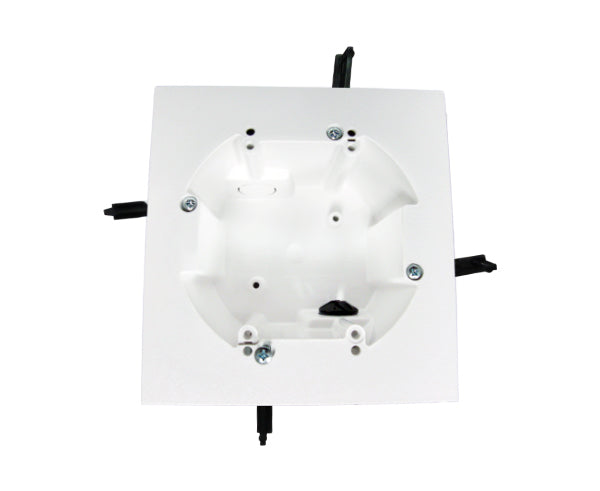

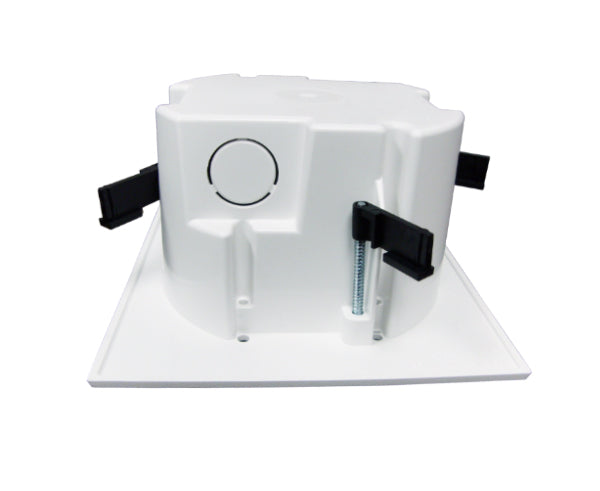

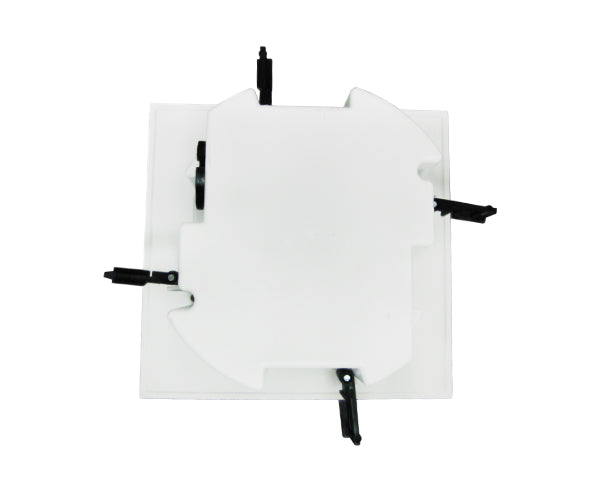

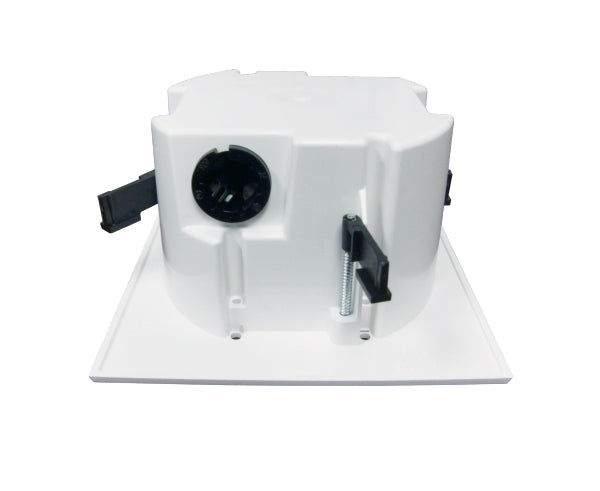

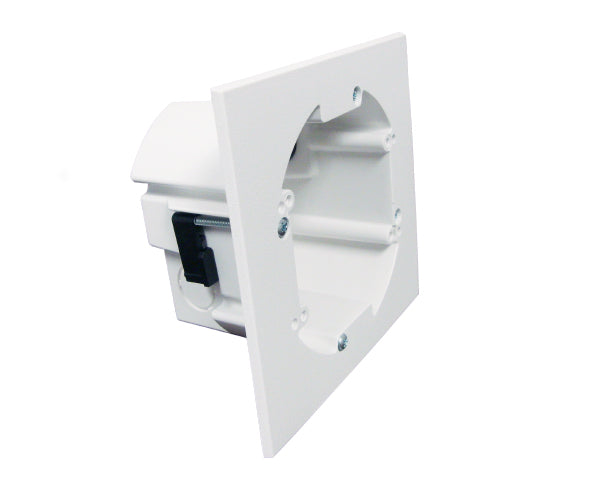

Round Electrical Drywall Box Fixture, Two (Dual) Gang

$12.41
SKU: FD2RP

UL Listed CSA logo Made in USA

Description

Round Electrical Drywall Box Fixture, Two (Dual) Gang

This Drywall Fixture is a two (Dual) gang bracket that would be used on existing construction. It was designed to install low or high voltage installations. This bracket provides fast installation with the use of a hole saw. This is the easiest and fastest installation of a wiring bracket. It is even faster than our LV1 mounting bracket. This bracket installs in less than a minute with a hole saw! The two-gang bracket installs with a 4.5" hole saw. The bracket does have a paintable front surface (optional). It adjusts to fit 1/4" to 1-1/2" wall thicknesses using the mounting wings which hold the bracket securely against the wall when screws are tightened. This bracket will work with any standard, midsize, or maximum wall plate. This low voltage mounting bracket is easy to level ™ even after it's installed and allows for easy access to cables, just reach through the opening to pull cables from behind the wall.

Features

Features

  • Easiest and fastest installation of low and high voltage wiring devices
  • Faster than our LV1 mounting bracket, FD2RP installs in less than a minute with a hole saw!
  • Two(Dual)-gang FD2RP installs with a 4.5" hole saw
  • Paintable front surface (optional)
  • Adjusts to fit 1/4" to 1-1/2" wall thicknesses
  • Mounting wings hold the bracket securely against the wall when screws are tightened
  • Finishes with any standard, midsize, or maximum wall plate
  • Easy to level ™ even after it's installed

Specifications

Specifications

Dual Gang

Round Electrical Drywall Box Fixture, Two (Dual) Gang

Adjusts to fit wall thickness Number of mounting wings Gangs Install Method
1/4" to 1-1/2" 4 Two (2) 4.5" Diam. Hole Saw
Dimension "A" Dimension "B" Dimension "C"
20 14
10

Additional Information

Additional Information

Round Drywall Electrical Fixture Box Installation Instructions

Instructions

What's in the Box

What's in the Box

  • Qty 2 - (Dual) Gang Round Non-Metallic Drywall Mounting Brackets
  • Qty 4 - Mounting Wings
