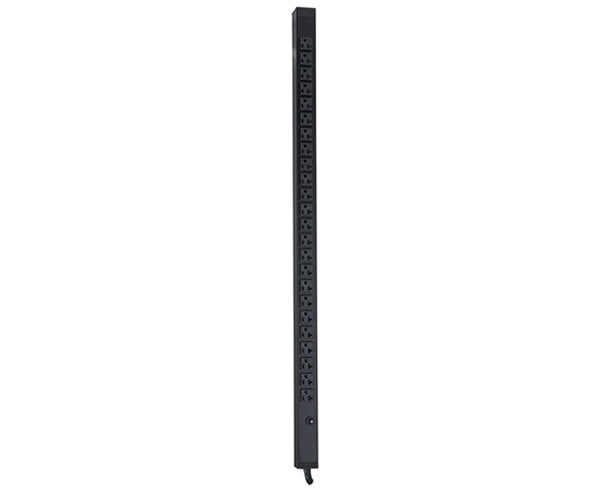

Basic Rack Mount PDU - 20A, 100-120V, 1.9kW w/NEMA 5-20R (Vertical)
Descriptions
Basic Rack Mount PDU - 20A, 100-120V, 1.9kW w/NEMA 5-20R (Vertical)
Primus Cable Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.
NPNB-VPB-L522420V features (24) NEMA 5-20R outlets protected by a single 20A circuit breaker, a reset button in the event of an overload, and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA L5-20P twist-lock plug connects to an external power supply, while the versatile mounting design allows outlets to face any of three directions.
Features
Features
- 24 NEMA 5-20R outlets

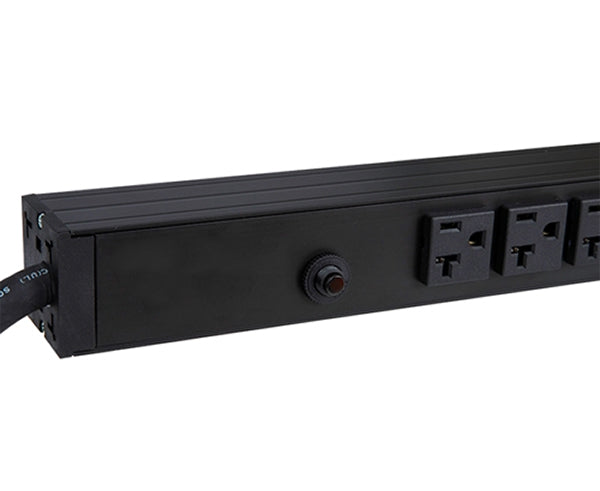

- Single 20A circuit breaker w/reset button
- Switchless design prevents accidental shutdowns
- Includes button mounts for vertical mounting to Primus Cable network and server cabinets, as well as tool-less mounting brackets that allow outlets to face the front, rear, or side.
- Conforms to UL 60950-1 and is RoHS compliant
Specifications
Specifications
|
OVERVIEW |
||
|---|---|---|
|

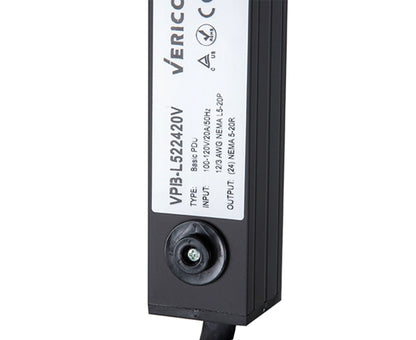

Item Number |
NPNB-VPB-L522420V |
|
|
PDU Type |
Basic |
|
|
Form Factor |
Vertical (zero U) |
|
|
UPC Code |
846788117338 |
|
|
OUTPUT |
||
|
Rated Output Voltage |
120V Single Phase |
|
|
Output Recepticles |
(24) NEMA 5-20R |
|
|
Overload Protection |
(1) 20A Circuit Breaker |
|
|
INPUT |
||
|
Rated Input Voltage |
120V Single Phase |
|
|
Max. Input Current |
20A |
|
|
Frequency |
50/60 Hz |
|
|
Power Capacity |
1.9 kW |
|
|
Plug Type |

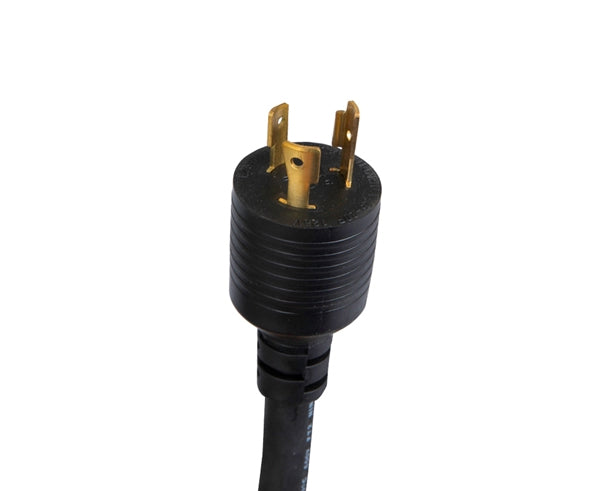

NEMA L5-20P Twist-lock |
|
|
Cord Type |
12/3 AWG |
|
|
Cord Length |
10 ft (3.05 meters) |
|
|
PHYSICAL |
||
|
Unit Width |
38.9 inches (989mm) |
|
|
Unit Height |
1.7 inches (44.0mm) |
|
|
Unit Depth |
1.7 inches (44.0mm) |
|
|
Unit Weight |
4.9 lbs (2.2 kgs) |
|
|
Shipping Length |
43.3 inches (1,098.6mm) |
|
|
Shipping Width |
4.0 inches (101.6mm) |
|
|
Shipping Depth |
3.0 inches (76.2mm) |
|
|
Shipping Weight |
5.4 lbs (2.4 kgs) |
|
|
Chassis Material |
Anodized Aluminum (black) |
|
|
Mounting Options |

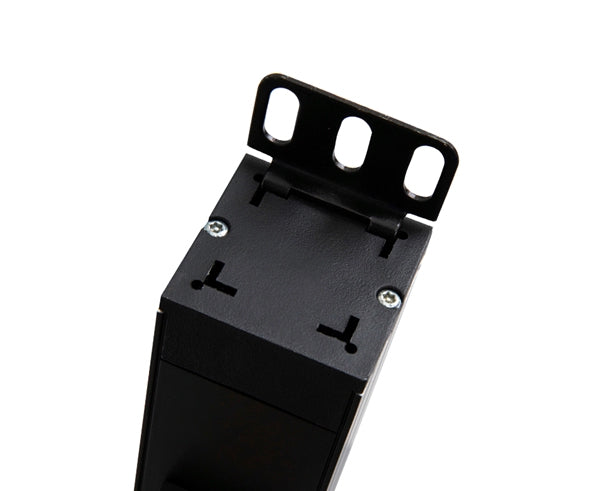

1) Pre-installed button mounts 2) Tool-less 4-way mounting brackets |
|
|
ENVIRONMENTAL |
||
|
Operating Temperature |
30° to 140° F (0° to 60° C) |
|
|
Operating Relative Humidity |
0 - 95% |
|
|
Operating Elevation |
0 - 13,123 ft (4,000 meters) |
|
|
SPECIAL FEATURES |
||
|
Breaker Reset |
Push button on front |
|
|
COMPLIANCE |
||
|
Certifications |
• Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme • RoHS |
|
What's in the Box?
What's in the Box?
- Qty 1 - Basic Rack Mount PDU - 15A, 100-120V, 1.4kW w/NEMA 5-15R Outlets (Vertical)
