Breakout Riser Multimode OM1 Fiber Optic Cable, Indoor/Outdoor

(We do not offer credits or returns for this item.)

If you would like to inquire about our custom fiber cable options such as terminated ends, pulleyes, and custom cut lengths, please call or email us.

Please call for shipping quote

Description

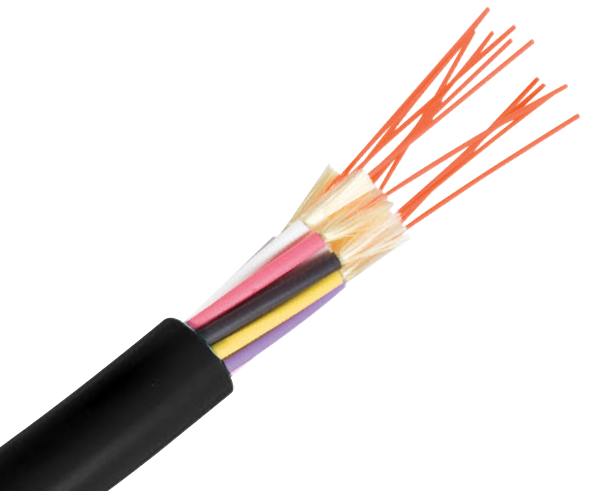

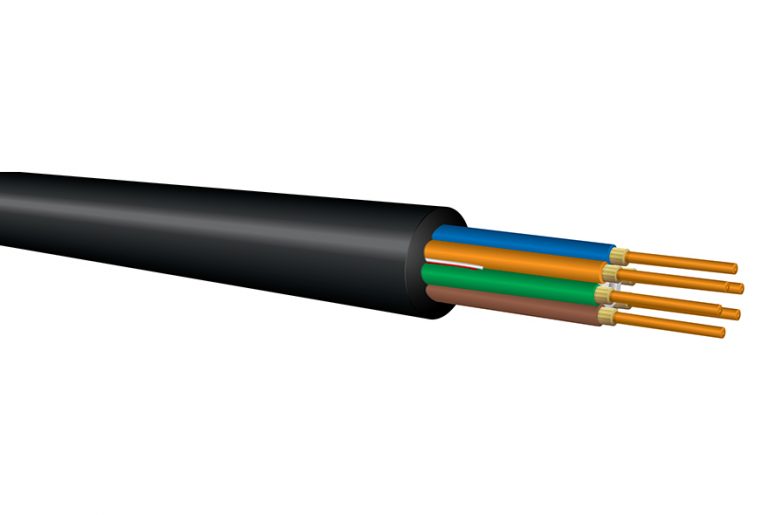

Breakout Fiber Optic Cable, Multimode, 62.5/125 OM1, Indoor/Outdoor, Riser

The Breakout Riser OFNR MultiMode 62.5/125 OM1 Fiber Cable is perfect for demanding installations needing robust fiber optic design for maximum protection. It's the easiest to install for direct termination of connectors to sub-units and direct runs to panels/equipment. With direct termination, it adds strain relief for better connector retention during adjustments. UL Listed per NEC sections 770.179(b) for vertical runs in building riser shafts.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

Features

• High performance components and construction
• UL Listed in accordance with NEC sections 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
• Most rugged and easy to install cable design for enterprise cabling applications
• Core-Locked™ outer jacket design for installation survivability, long-term, trouble free service
• Ideal for use in long, vertical installations
• 2.5mm subcables can be direct-terminated with standard connectors (2.0mm and 2.9mm subcables also available)
• Subcabled fiber is environmentally and mechanically protected
• Ideal for use in point-to-point runs in adverse environments
• Direct termination to subcable provides additional strain relief for better connector retention during moves, adds, and changes
• Design is ideal for direct pulling with mesh grips
• Cable materials are indoor/outdoor - UV, water and fungus resistant
• Wide operating temperature range of -40ºC to +85ºC
• High performance 900 um tight buffered coating on each optical fiber for environmental and mechanical protection
• Interlocking armor can be applied to cables as an alternative to conduit installation
• 2 to 72 fibers

• Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary
• Easiest cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired

• Direct termination to subcable may eliminate the need for patch panels and patch cords and reduces connector loss
• 900 um buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
• High crush resistance may eliminate the need for innerduct

• UL 1651
• UL 1666
• GR-409-CORE
• ICEA-S-104-696
• ICEA-S-83-596
• TIA-568
• TIA-598

Specifications

Specifications

• Operating Temperature: -50ºC to +75ºC
• Storage Temperature: -55ºC to +85ºC
• Installation Temperature: -30ºC to +60ºC
• Flame Retardancy: >UL Listed Type OFNR (UL 1666) and FT4 (CSA C22.2 No. 232)
• Crush Resistance: 2,200 N/cm
• Impact Resistance: 1,500 impacts
• Flex Resistance: 2,000 cycles
