Description

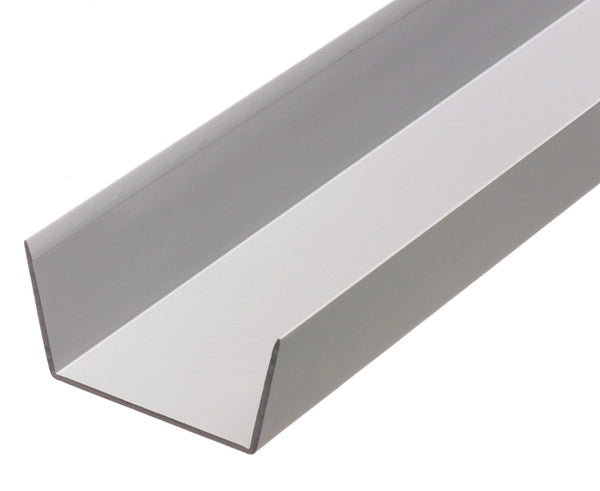

5 ft. Cable Runway Straight Tray
Our Cable Runway Straight Tray offers time-saving benefits that decreases installation time and saves you money. This Straight Cable Runway Tray makes running a Arlington's CableWay™ cable runway system as simple as attaching it to a bracket and using a coupler to join sections together. This Straight Tray meets UL E161207 and CSA standards.
Product QualityThis product is manufactured by Arlington Industries who is a leading manufacturer of quality electrical products, communication products, home theater products, and more since 1949. This product is UL listed as a cable support system, designed for power or low voltage cable.
Features
Features
- Secure, UL Listed as a cable support system
- For power or low voltage cable

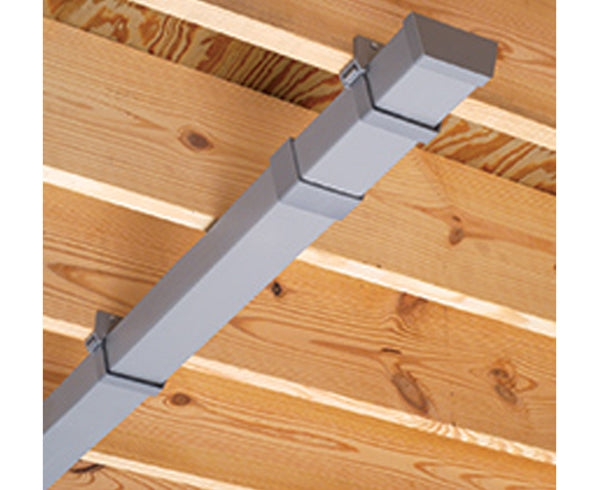

- Support brackets attach directly to framing members, without structural damage
- Time-saving system - no holes to drill through joists

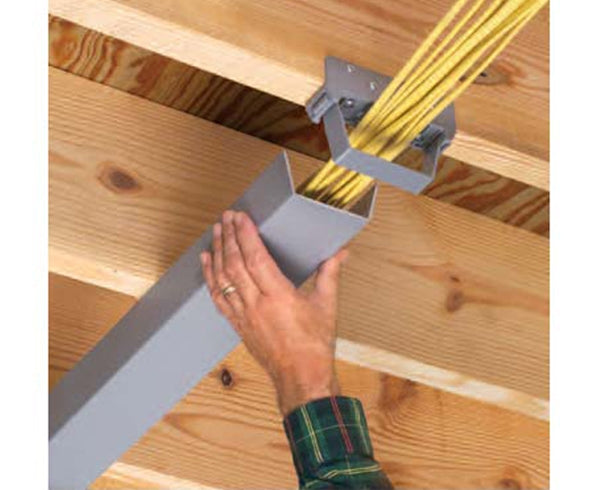

- Brackets hold cables in place - open the bracket for easier cable insertion

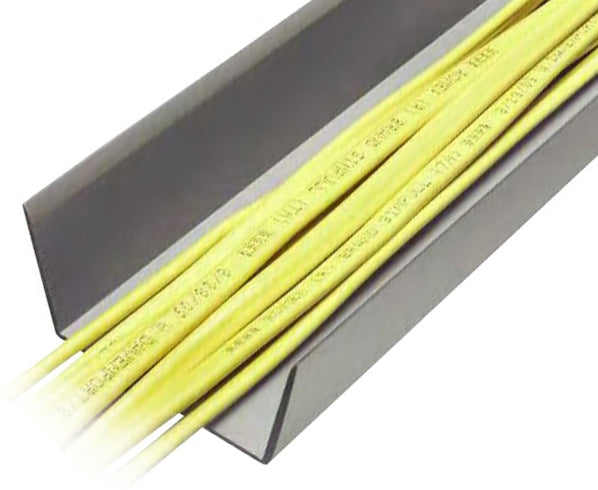

- Slide-on trough protects and covers cable
- Install additional trough sections as needed and join them together with couplings
- Push-on end caps complete the job
Specifications
Specifications
| Item Number |
Description | Dimension A | Dimension B | Dimension C | Dimension D |
|---|---|---|---|---|---|
| T205 | Wire Cable Tray in 5 ft. Lengths | 6.25 |
6.75 |
3.380 | 61.25 |
| T23A | Angle | 10.25 |
7.375 |
3.380 | 10.875 |
| T23C | Coupling | 6.5625 |
6.5625 |
6.5625 |
6.5625 |
| T23E | End Cap | 3.5 |
5.25 |
3.570 | 7.5 |
| T23F | Flat Surface Bracket | 7.875 |
10.875 |
3.600 | 11 |
| T23H | Support Bracket | 7.875 |
10.875 |
3.620 | 11 |
| T23T | Tee | 7.875 |
10.875 |
3.380 | 18.375 |
| T23W | Wall Mount Bracket | 10.25 |
7.375 |
5.970 | 10.875 |
Wire Fill Chart
Additional Information
CableWay™ Cable Support SystemWhat’s In The Box
What’s In The Box
- Qty 1 - Cable Runway Straight Tray
