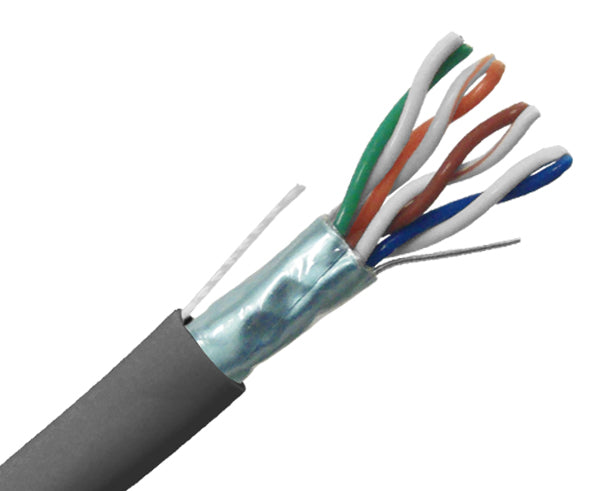

CAT5E Plenum Bulk Ethernet Cable, CMP, Shielded Solid Copper 24 AWG 1000FT

Description

Our CAT5E Shielded CMP Rated Plenum Cable is well-suited for your shielded indoor voice, data, video and security networking applications, providing an ideal solution whether you’re wiring your home, office, or entire campus.

This ETL Listed CAT5E Shielded Plenum Bulk Cable is the perfect fit for reliable installations where the cable will be used indoors. Featuring 8 conductors (4-Pairs) of solid bare copper with a FEP insulation, overall foil shielded (F/UTP) and a Low Smoke FR-PVC CMP rated RoHS Compliant jacket. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our Shielded Category 5E CMP Rated Cable is designed for indoor LAN applications, making it the ideal solution for indoor installation runs that require cable to be installed in plenum areas.

In our commitment to delivering high-quality bulk Ethernet cables, our cable have to meet and/or exceeds CAT5E ANSI/TIA-568.2-D standards. Our CAT5E CMP cable is also manufactured to meet current CAT5E guidelines and is verified by outside standards organizations including ETL and RoHS Compliant.

Why Shielded Cable?

The foil shielding protects the signal from outside EMI™s and also keeps the signal from emitting its own EMI. For example, a hospital has many electronic devices that emit Electromagnetic Interference so you would want to use a shielded cable to prevent EMI from both entering and exiting your cable.

Technical Diagram

Cat 5E Bulk Cable Options

Cat 6 Bulk Cable Options

Features

Features

• High-Performance Data Communications Cable for Noisy Environments
• Suitable for 350MHz High Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD CDDI
• Category-5E Foil Shielded Twisted Pair (F/UTP) Cable
• 4-pair, Easily Identified Color-Striped Pairs
• 24AWG Solid Bare Copper Conductors
• Excellent Attenuation and Crosstalk Characteristics
• Sequential Foot Markers on Jacket
• Exceeds ANSI/TIA-568.2-D Specifications
• Designed for Indoor Installations
• Flame Retardant Jacket, (FR-PVC)
• ETL Verified
• Supplied In 1000' Pull Boxes
• Category 5E CMP Rated Cable
• Designed for Indoor Plenum Rated Installations
• RoHS Compliant

Specifications

Specifications

Additional Information

Additional Information

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

To learn more about our UL Listed CAT5E Plenum Rated CMP Ethernet Cable please visit our product overview page.

Our CAT5E UL Listed Plenum Rated CMP Ethernet Cable is compatible with our:

• CAT5E Patch Cables
• CAT5E Modular Plugs
• CAT5E Keystone Jacks
• Blank Patch Panels
• CAT5E Patch Panels
• Wall Plates
• Tools
• Testers
• Cable Management Accessories

What’s In The Box

What’s In The Box

• 1000ft of CAT5E 350MHz Shielded F/UTP CMP Rated Ethernet Cable with 4 pairs of 24 AWG Solid Copper Conductors.
