Description

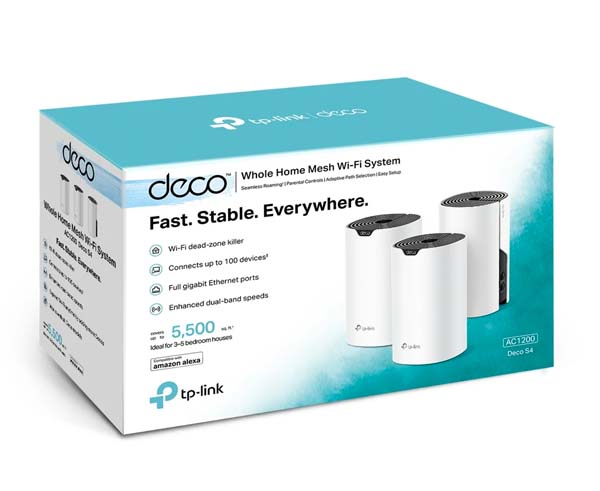

Deco S4 - AC12000 Whole Home Mesh Wi-Fi System
Deco Mesh uses WiFi nodes that work together to cast stronger, more reliable WiFi throughout your whole home, so you never lose your connection as you move from room to room.
Mesh routers work together so you can move freely from room to room on a single network and experience WiFi uninterrupted. Want more coverage? Simply add another Deco. It’s just that easy!
Range extenders can expand traditional routers’ coverage, but typically at the cost of limited performance and switching between multiple networks throughout your home.
Flexible and multifunctional, the Deco S4 includes a variety of features allowing it to serve as a router or access point. Just choose the mode for your actual network demands and experience the maximum wireless flexibility.
WiFi Dead-Zone KillerDeco S4 gives you a strong WiFi signal in every corner of your home up to 5,500 sq.ft (3-pack)†. Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
Plug-In CoverageThe Deco M3W makes complicated setup a thing of the past. Simply plug the compact M3W unit into a wall outlet, download the Deco app and follow the on-screen directions for quick and easy setup. If you need additional WiFi coverage, no problem. Simply add another Deco M3W, or another Deco product, to increase coverage at any time.
Works with All Deco RoutersDeco S4 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by simply adding more Decos.
Seamless Roaming with One WiFi NameDeco units work together to form one unified network with one single name and password. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience.
No More BufferingDeco S4 provides a lag-free connection to up to 100 devices†. Fast networking experience is guaranteed for all devices, and all applications including surfing, downloading, streaming and gaming.
Robust Parental Controls
Simple, intuitive parental controls make it easy to keep your children safe while they’re online.
Features
Features
-
Whole Home Coverage: Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage up to 5,500 sq.ft.†— eliminate weak signal areas once and for all! And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
-
TP-Link Mesh: With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
-
Fast Dual-Band WiFi: Deco S4 provides fast and stable connections with speeds of up to 1167 Mbps† and works with all internet service providers (ISP) and modems.
-
Connect More Devices: Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
-
Parental Controls: Parental Controls limit online time and block inappropriate websites according to unique profiles created for each family member.
-
Easy Setup: Setup is easier than ever with the Deco app there to walk you through every step.
Specifications
Specifications
| WIRELESS | ||
|---|---|---|
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
|
| Wi-Fi Speeds |
AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
|
| Powerline Speeds |
HomePlug AV2 1000 Mbps Powerline |
|
| Wi-Fi Range |
3-5 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
|
| Wi-Fi Capacity |
Medium Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients |
|
| Working Modes |
Router Mode Access Point Mode |
|
| HARDWARE | ||
|---|---|---|
| Processor | Qualcomm CPU |
|
| Ethernets Ports |
2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
|
| Buttons | Reset Button |
|
| DImensions (W x D x H) | 3.6 x 3.6 x 7.5 in (90.7 x 90.7 x 190mm) | |
| SECURITY |
||
|---|---|---|
| Wi-Fi Encryption |
WPA-Personal WPA2-Personal |
|
| Network Security |
SPI Firewall Access Control |
|
| Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
|
| SOFTWARE |
||
|---|---|---|
| Protocols | IPv4, IPv6 |
|
| Parentals Controls |
URL Filtering Time Controls |
|
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
|
| Quality of Services | QoS by Devices | |
| Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
|
| NAT Forwarding |
Port Forwarding UPnP |
|
| IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
|
| DHCP | Address Reservation DHCP Client List Server |
|
| DDNS | TP-Link | |
| Management | Deco App | |
| GENERAL |
||
|---|---|---|
| Certification | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS | |
| Package Contents |
Deco S4 (3-pack) 3 Deco S4R Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide Deco S4 (2-pack) 2 Deco S4R Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco S4 (1-pack) 1 Deco S4R Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
|
| System Requirements |
Android 4.4 or later iOS 9.0 or later |
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Additional Information
What's In The Box
What's In The Box
- (1) - Deco S4 Unit (3-Pack)
