5MP Security Camera, Facial Recognition, IR Varifocal Lens

5MP Security Camera, Facial Recognition, IR Varifocal Lens

by Primus Cable
$548.00
SKU: NPNB-BN8029AVAIRAI/NDAA
Various lead times may apply to this product. Please contact us for more details.

IP66 Rated  NDAA Compliant

Description

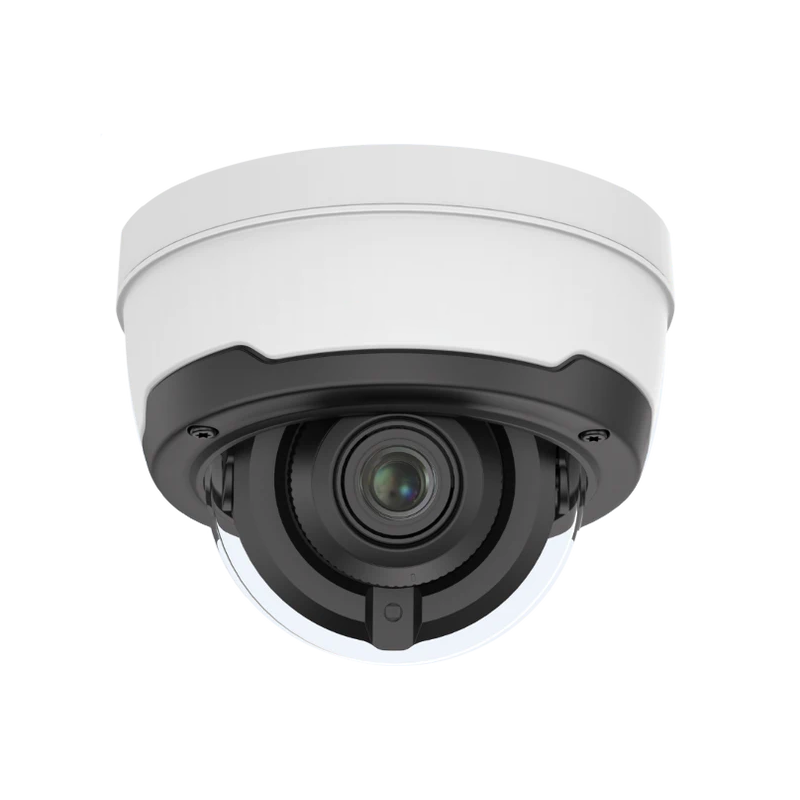

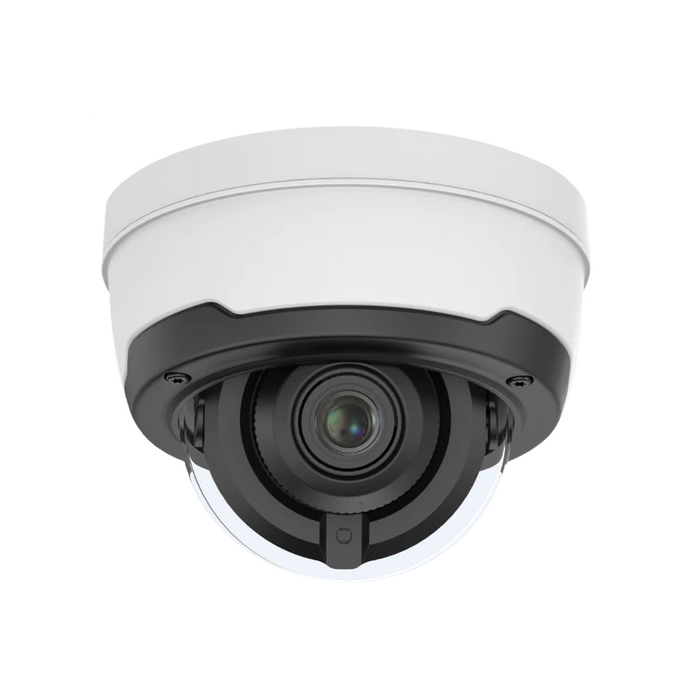

5MP Security Camera, Facial Recognition, IR Varifocal Lens

This 5MP security camera features an exceptional 2.7-13.5mm Motorized Lens Varifocal IP66 IR Vandal-proof Dome Camera, PoE, 12VDC, BNC Output, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 100ft, iPac AI Enabled with Facial Recognition System.

Features

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Lens Type: 2.7mm H.FOV: 92°
  • WDR: 120DB
  • System Compatibility: ONVIF 2.4, RTSP

Specifications

Specifications

Mechanical specifications
Image Sensor 1/3" Progressive Scan CMOS
Minimum Illumination 0.002Lux @(F1.2,AGC ON)
0 Lux with IR
Shutter Speed 1/5 s – 1/20,000 s
Lens Type 2.7 – 13.5mm
Lens Mount M12 / M14
Day and Night IR Cut Filter with Auto Switch
Dynamic Range Digital WDR
Digital Noise Reduction 3D DNR

Compression
Video Compression H.265 / H.264 / MJPEG
Image Resolution Up to 5MP ( 2592 X 1944)
Video Bit Rate 8Kbps ~ 8Mbps

Frame Rate

Main Stream: 5MP (2560 X 1944), 4MP (2592 X 1520),
3MP (2304 x 1296), 1080P (1920 x 1080),
720P (1280 x 720), 960H (1280 x 960)

Sub Stream: D1 (704 x 480) - VGA (640 x 480) - QVGA (320 x 240) @30 fps

Mobile Stream: VGA (640 x 480), QVGA (320 x 240), 50Hz: 25FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA, 60Hz: 30FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and Adjustable Browser
Day and Night Switch Auto / Schedule / Triggered by Alarm In

Interface
System Compatibility ONVIF (Profile S/G/T)
Interface 1 RJ45 10M / 100M Ethernet Interface
IR Distance Up to 98 ft.
POE Built-In PoE
Security Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering
Edge Recording Yes, Micro SD slot
Video Analytics Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection

Electrical
Power Supply 12 VDC ± 10%, POE (IEEE802.3af)
Power Consumption

3.5W / 4.5W (IR OFF), 7.5W / 9.5W (IR ON)
Operating Temp. -40 °F - 140 °F Humidity 95% or less (non-condensing)

Physical
Dimensions 5.78" x 4.6"
Net Weight 2.35 lb
Weather-Rating IP66 Rated

What's In The Box

What's In The Box

  • Qty 1 - Facial Recognition 5MP IR Varifocal Lens
