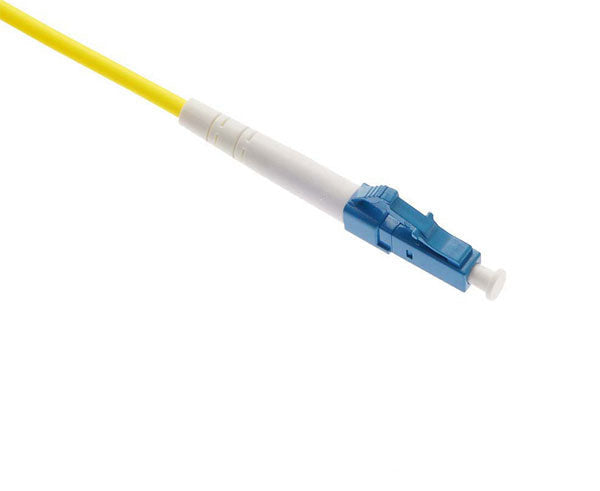

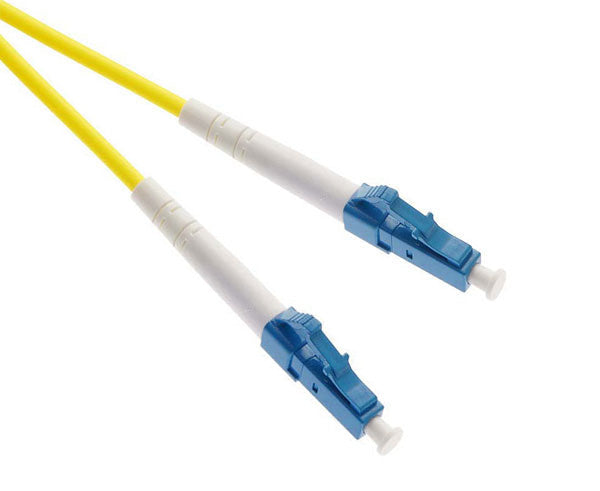

Fiber Optic Patch Cable, LC- LC Single Mode 9/125, Simplex

Description

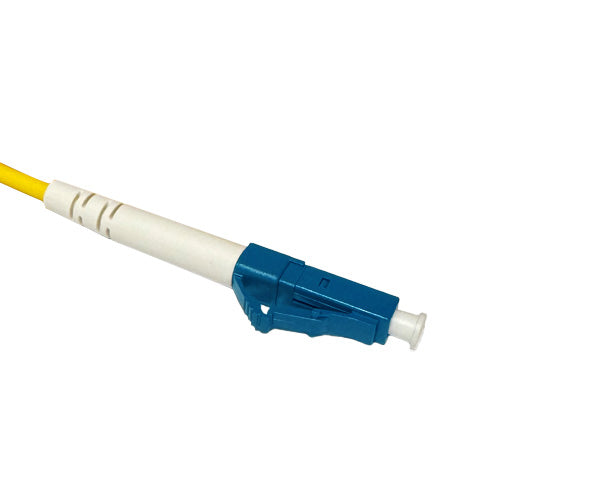

LC-LC/UPC Simplex Fiber Patch Cable with Single Mode 9/125

These high-speed single-mode 9/125µm simplex fiber optic patch cables are terminated with LC/UPC fiber optic connectors on both ends (LC/UPC-LC/UPC). Called Lucent Connectors, Little Connectors or Local Connectors, these snap-in connectors are typically used for high-density connections. They are compatible with plug-and-play devices such as SFP modules and XFP transceivers.

Our extensive fiber patch cable range is terminated with state-of-the-art connectors available in any combination of ST, SC, FC, and LC with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.

Features

• High-speed, single-mode
• Simplex fiber
• Snap-in connectors for easy installation.
• Small form factor LC connectors—ideal for high-density installations
• Ceramic zirconia ferrules

• UPC polish type to maximize signal transmission efficiency.
• Available in custom lengths and colors call for more info.

Specifications

Mode: Single Mode
Connector Style: Simplex
Connectors: LC to LC
Fiber: 9/125µm
Polish Type: LC-UPC, LC-UPC
Typical Insertion Loss: ≤ 0.02 dB
Maximum Insertion Loss: ≤ 0.13 dB
Maximum Return Loss: ≥ 55.3 dB

Additional Information

Your patch cable selection is important to the type of fiber optic network you are working on. Some are ideal for single mode, while others might be the right for a Multimode installation. Another factor to consider is polish type when using single mode cables.

While you patch cable choice is important, it is only one piece of the fiber optic network to choose from. Take a look at what's available in these other key product categories:

• fiber optic enclosures
• fiber channel testers
• splice trays
• fiber optic accessories

Connector Type Abbreviations:

SC - a snap-in style connector. Known for its excellent performance. Referred to as Subscriber Connectors, Square Connectors or Standard Connectors.

ST - a very popular choice connector for Multimode networks. Also referred to as Straight Tip connectors, they utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.

FC - was at one time the most popular single-mode connector type, but is now typically being replaced by SC and LC connectors. Also known as Ferrule Connectors, they utilize a screw-on coupling type to be used in high-vibration environments and are commonly used for datacom, telecom, measurement equipment and single-mode lasers.

LC - a small form factor connector—measuring half the size of an SC connector. This is a popular choice for single mode cables. Also referred to as Lucent Connectors, Little Connectors or Local Connectors, these snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.

Polish Type Abbreviations:

Note: The polish type affects the amount of back reflection, also known as reflectance.

PC - Physical Contact. Polished to create a slight dome at the end of the ferrule that helps to maximize the signal being transmitted.

UPC - Ultra Physical Contact. More extensive polishing than the PC type, a greater dome shape is created that further help to maximize the signal being transmitted.

APC - Angled Physical Contact. Polished at an angle rather than a dome shape. This is the most efficient polish type.
