Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, Single Mode)
by Jonard Tools
$554.95
SKU: FPL-5050
Description
Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, Single. Mode)

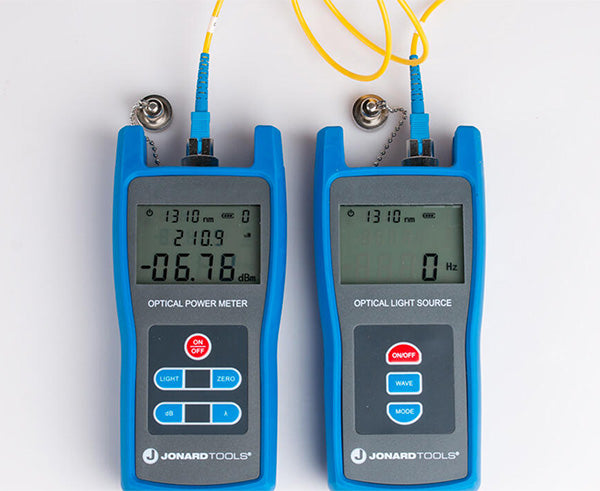

This tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing.
Features
Features

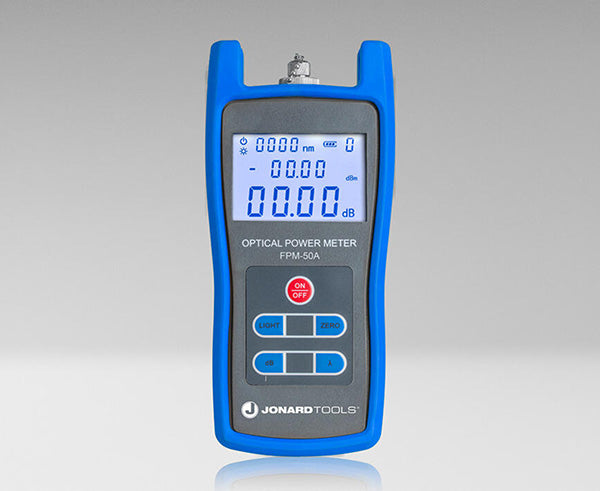

- The FPM-50A Fiber Optic Power Meter to measure wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
- Includes FC/SC adapters for APC/PC/UPC connectors and an LC adapter for PC/UPC connectors only

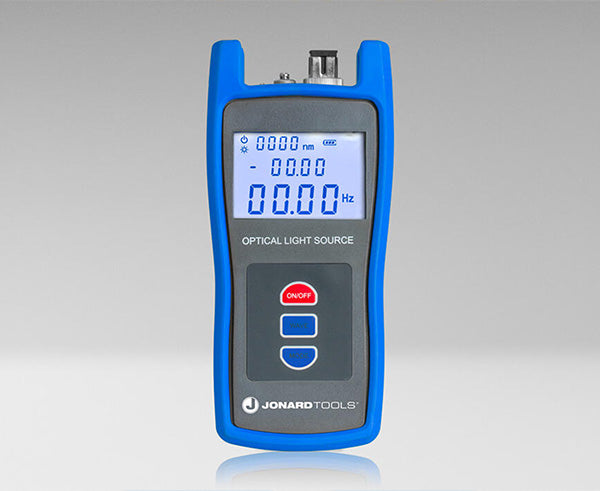

- The FLS-50 Fiber Optic Light Source to provide either 1310 nm or 1550 nm wavelengths for a stable light source for single-mode fiber measurements
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 nm and 1550 nm wavelengths
- Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
- A FREE BAG! The H-22 Rugged Carrying Case with Straps ($35 value)!
- Nylon Carry Case (FPM-50A)
- Protective Cover (FPM-50A)
- Storage Pouch (FLS-50)
- With both the FPM-50A and FLS-50
- Instruction Manuals
- (3) AA Batteries each (required for operation)
- (2) Cleaning Swabs each
- FC Adapter, LC Adapter, and SC Adapters
Specifications
Specifications
| Connector Types |
FC, SC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
| Power Meter Wavelengths |
850, 980, 1300, 1310, 1490, 1550, 1625, 1650 |
| Light Source Wavelengths |
1310, 1550 |
| Power Measurement Range |
-50 dBm to +26 dBm |
| Dimensions | 10.5 in x 8.5 in x 6 in (26.67 cm x 21.59 cm x 15.24 cm) |
| Weight | 3.5 lb (1589 g) |
| UPC # | 810053350492 |
Additional Information
Additional Information
What’s In The Kit
What’s In The Kit
| FPM-50A | Fiber Optic Power Meter (-50 to +26 dBm) with FC/SC/LC Adapters |
| FLS-50 | Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors |
| H-22 | Rugged Carrying Case with Straps |
