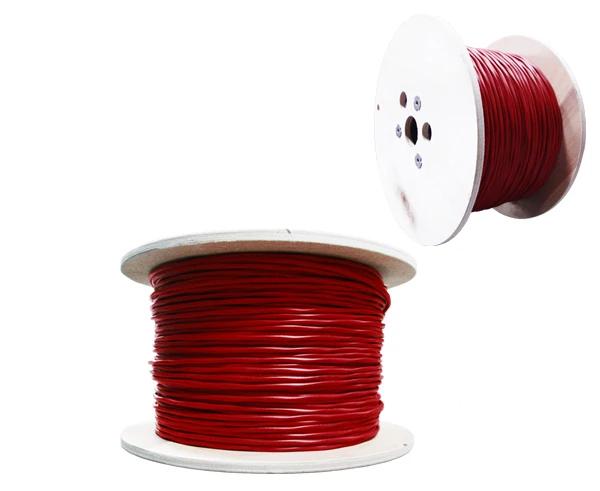

Fire Alarm Cable: FPLR Unshielded Riser - Data Grade, 16/2 AWG Solid Bare Copper Conductors, Red PVC Jacket, 1000 Feet Length
Commercial / Data Grade Addressable Systems FPLR Rated Unshielded
Description

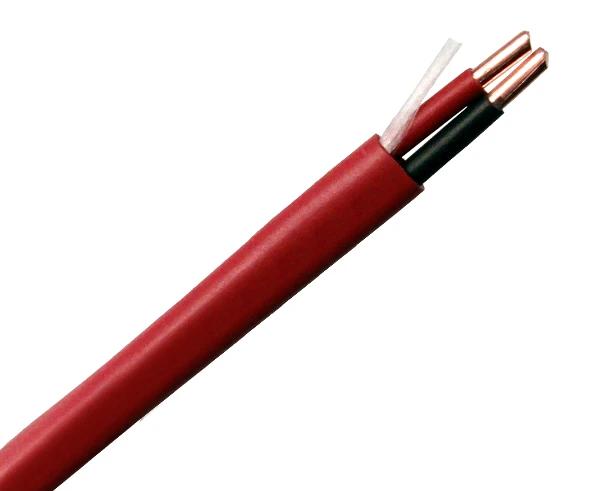

16/2 Riser (FPLR) Fire Alarm Cable
This FPLR-rated fire alarm cable contains unshielded solid bare copper conductors housed in a PVC jacket. The jacket, rated CMP FT6, has a voltage rating of 300 volts and accommodates two conductors, suitable for security systems, power-limited controls, intercoms, and sound systems.
Investing in top-tier fire alarm cables is paramount for safeguarding lives. As a reputable industry leader, we specialize in providing high-quality products exclusively. Fire alarm cables play a vital role during emergencies, facilitating the activation of sprinklers and smoke alarms for prompt evacuation. Choose a trusted source for utmost reliability when lives are at stake.
Fire Alarm Installation
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, siren alarm, fire alarm control panel, pull boxes, burglar alarms, and other fire alarm protection systems. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire System Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum, and Riser fire alarm cables, FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability, our cables are UL and ETL Listed, as well as RoHS Compliant. Plenum-rated alarm cables can be run in the area between floors, used as duct area or other air space. 'Plenum' refers to the material used in the jacket of the cable, which burns less than non-plenum cables.
Features
Features
- Fluoropolymer-insulated solid bare copper conductors
- Low Smoke Generating FPLR Riser Rated PVC Jacket
- Two 16 AWG Conductors
- Solid Bare Copper Conductors
- Sequential Footage Markings on Jacket
- ETL Listed
- RoHS Compliant
- Voltage Rating: 300V
- Temperature Rating: 75°C
- Made in USA
Applications
- Fire Alarm Wiring
- Fire Protection
- Signals
- Monitoring and Detection Systems
- Audio Circuits
- Notifications Circuits
- Control Circuits
- Initiating Circuits
Conductor Insulation Colors
- Black
- Red
Specifications
Specifications
Physical Construction |
|
---|---|
Inner Conductor | Solid Bare Copper |
Conductor Size | 16 AWG |
Insulation | Low Smoke PVC |
Nominal OD | 4.57mm |
Outer Jacket Diameter | .381mm |
Jacket | PVC |
Jacket Color | Red |
Shielding | N/A |
Electrical Characteristics |
|
---|---|
Temperature | 75°C |
Voltage Rating | 300V |
Color Mode | Black Red |
Additional Information
Additional Information
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
What's in the Box
What's in the Box
- Fire Alarm Cable, Shielded Riser, FPLR, Data Grade, 16/2AWG, Solid BC, Red PVC Jacket
- 1000 Ft.
