Description

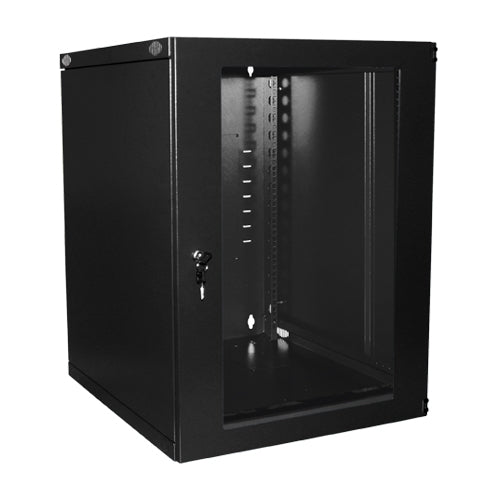

9U Single Fixed Wall Mount Cabinet, 18.11"x 21.26” x 23.62”
Our Fixed Wall Mount Cabinet is a perfect solution for a variety of networking, AV, and security installations. Compatible with all standard 19-inch EIA equipment, these cabinets are packed with features that make setting up and maintaining equipment a breeze, including a lockable, removable, and reversible front door, removable side panels, and a removable 12" x 12" rear panel for in-wall cable entry.
Constructed of cold rolled and powder-coated 19-gauge steel, these fixed wall mount cabinets have a maximum load capacity of 132 lbs. Ships unassembled and flat packed for easy on-site handling.
Security & Protection- Locking doors and side panels prevent unauthorized access to equipment
- Doors and side panels are grounded to the cabinet frame
- Multiple cable entry options provide greater flexibility during installation
- Mounting rails are adjustable to match a variety of equipment sizes
- Front door and side panels are removable for convenient access to equipment
- Available in three sizes to fit in a variety of environments where space is limited
- Top and bottom panel vents to optimize cooling of equipment
- Adaptable for use in network, security and audio/video installations
Features
Features
- Cable entry on top, bottom and back
- Lace points to reduce cable clutter
- Lockable acrylic front door is removable and reversible
- Removable back panel and side panels
- Item ships unassembled
Specifications
Specifications
Product Type |
Fixed Wall Mount Cabinet |
Frame Material |
Heavy Gauge Cold Rolled Steel |
Finish |
Black Powder Coat |
Rack Unit Quantity |
9U |
Dimensions (HxWxD) - |
18.11"x 21.26” x 23.62” |
Front Door |
Removable, Reversible, & Lockable Steel Frame With Full Panel Acrylic Window, Opens Full 180º |
Rear Panel |
12" x 12" Removable Panel, Wall Mounting Keyholes Spaced 16" Apart, Multiple Lace Points |
Side Panels |
Solid, Full Height & Removable |
Top Panel |
Ventilation Holes For Optional Fan Unit (6) Knock-Out Cable Entry Holes Located at Back: (2) 3/4, (2) 1", and (2) 2" Knockouts |
Bottom Panel |
Ventilation Holes for Optional Fan Unit (6) Knock-Out Cable Entry Holes Located at Back: (2) 3/4, (2) 1", and (2) 2" Knock-Outs |
Equipment Support |
Adjustable Rail Depth (3.25"), 1.75" RU Spacing, Marked & Numbered on Rails; 19" W, EIA-310-D |
Grounding |
14 AWG Ground Wire Connects Doors & Side Panels To Cabinet Frame |
Static Loading Capacity |
132 lbs |
Compliance & Standards |
ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
Installation and Assembly
Installation and Assembly
What’s In The Box
What’s In The Box
- Qty (1) - Front Door Panel
- Qty (1) - Rear Panel
- Qty (2) - Side Panels
- Qty (1) - Top Panel
- Qty (1) - Bottom Panel
- Qty (1) - Usage Instructions
- Qty (48) - 10-32 Mounting Screws & Washers
- Qty (15) - M5x10mm Screws
- Qty (1) - M4x10mm Screw & Guide Piece
- Qty (4) - M5 Nuts
- Qty (2) - M5x14mm Screws
- Qty (2) - Keys
- Qty (4) - Baffles
- Qty (1) - Label
