Gigabit 48VDC Passive PoE Adapter

by TP-Link
$13.99
SKU: POE4824G
Various lead times may apply to this product. Please contact us for more details.
FCC Verified logo CE Verified logo RoHS Compliant PoE Capable

Description

Gigabit 48VDC Passive PoE Adapter

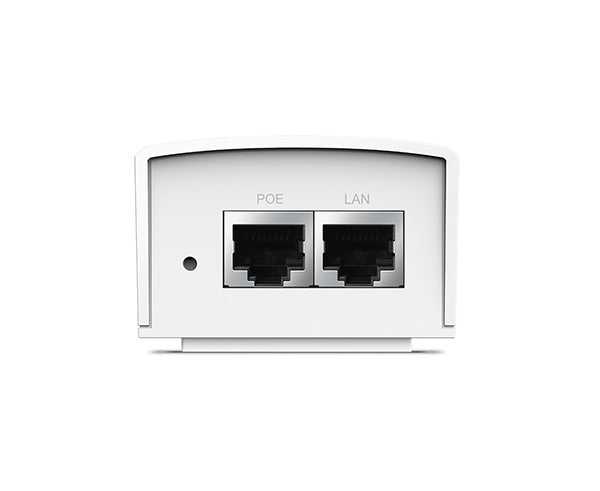

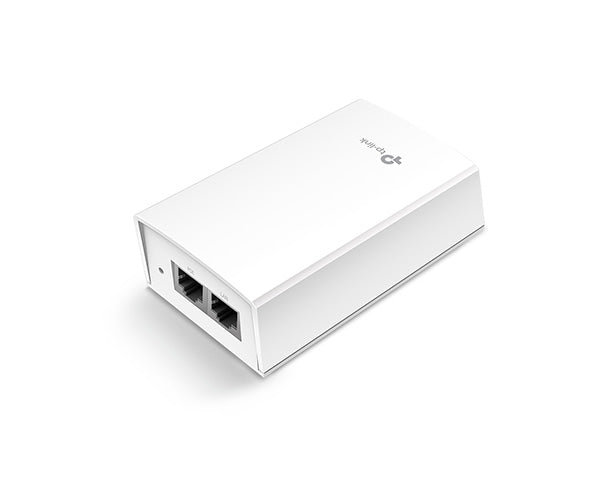

Use the 2-Port Gigabit 24W, 48 VDC Passive PoE Ethernet Adapter to add PoE-compatible devices to your office network. Designed for select TP-Link devices, such as access points and powered antennas, this wall-mountable adapter features two Gigabit Ethernet ports. One connects to your router while the other connects to devices, delivering up to 24W, 48 VDC of passive PoE power. The adapter automatically detects the necessary amount of power, so no manual configuration is required. A wall mount is included for quick installation.

Power Your Devices

Use the passive PoE adapter TL-POE4824G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design

TL-POE4824G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices

TL-POE4824G is recommended to offer power supply to TP-Link’s passive PoE products which as follows.

Features

Features

  • Gigabit network ports
  • 48VDC passive PoE injector
  • Auto-detect and auto-supply the necessary power required
  • Plug-and-Play, requires no configuration

Specifications

Specifications




HARDWARE FEATURES
Interface 2 x 10/100/1000Mbps RJ45 Port
Auto Negotiation/Auto MDI/MDIX

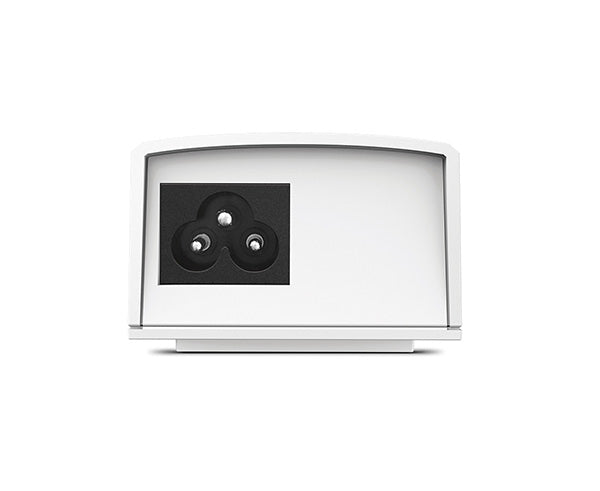

1 100~240V / 50~60Hz AC Power Input Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

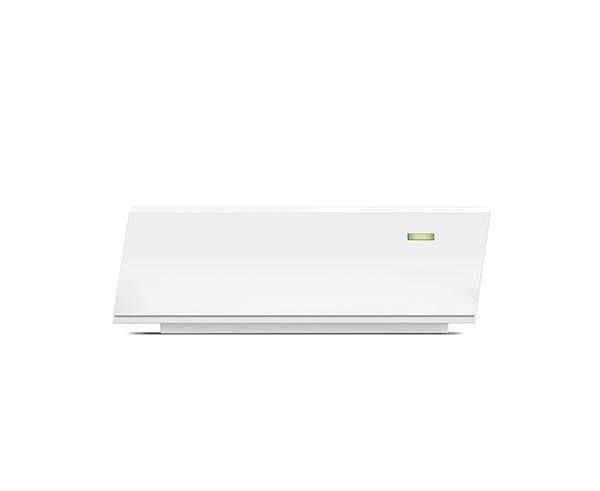

LED Indicator PWR
Dimensions ( W x D x H ) 4.3 × 2.3 × 1.5 in.
(110×57×38.8 mm)
OTHERS
Certification FCC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing


What's in the box?

What's in the box?

  • 48V, 24W Passive PoE Adapter TL-POE4824G
  • Power Cord
  • Wall Mounting Kits
