This unit requires a SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.
Description

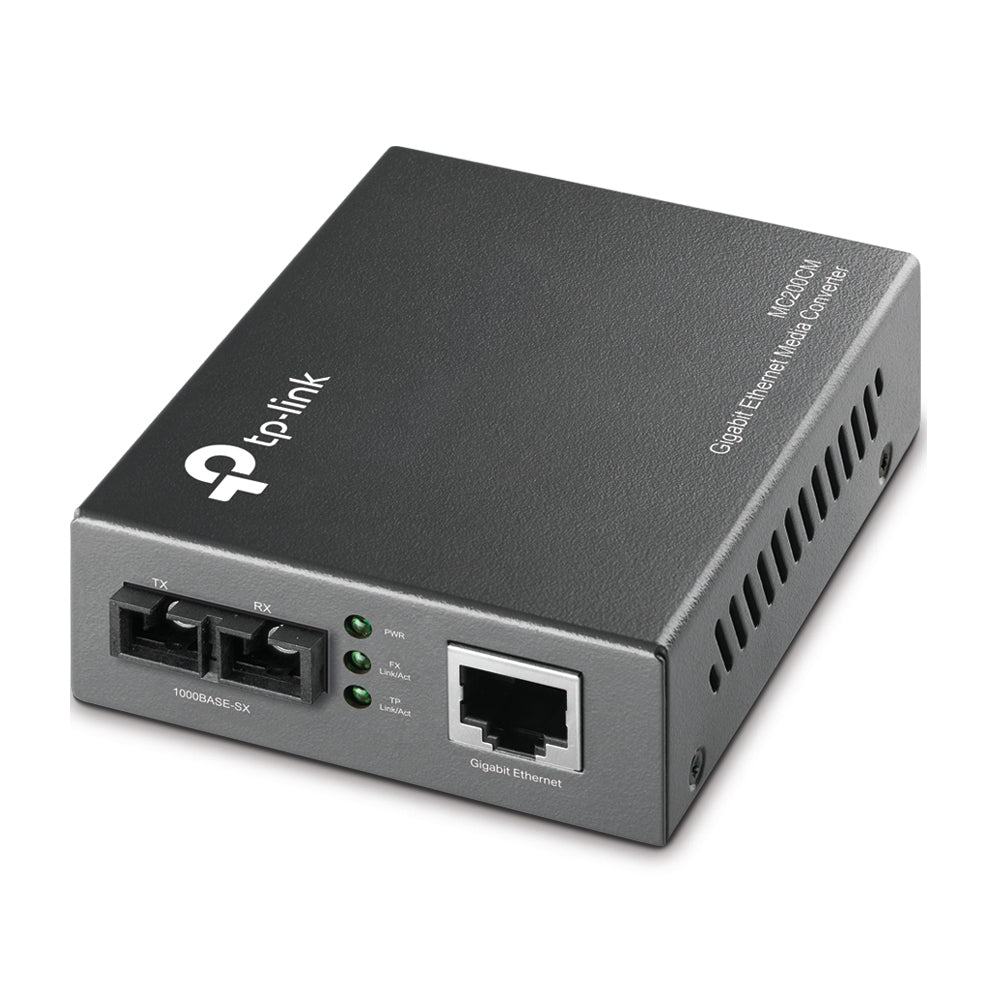

Gigabit Multi-Mode Media Converter
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data
Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
Features
- 1 10/100/1000Mbps Auto-negotiation RJ45 Port Supporting Auto-MDI/MDIX
- Auto-negotiation of Half-duplex / Full-duplex Transfer Mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends Fiber Distance up to 1,800 ft.(550m)
Specifications
MEDIA CONVERTER & MODULE | ||
---|---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
Basic Function |
Auto-negotiation of Half-duplex / Full-duplex Transfer Mode Extends Fiber Distance up to 1,800 ft (550m) Using 50/125um Fiber Extends Fiber Distance up to 720 ft (220m) Using 62.5/125um Fiber |
|
Ports |
1 x 1000M Dual SC/UPC Port 1 x 10/100/1000M RJ45 Port (Auto MDI/MDIX) |
|
Wave Length | 850nm |
|
Network Media 100BASE-SX | Multimode Fiber | |
Network Media 100BASE-T |
UTP Category 5, 5e Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |
|
LED Indicators | PWR, Link/Act | |
Dimensions (W x D x H) | 3.7 x 2.9 x 1.1 in (95 x 73 x 27 mm) | |
Power Supply | External Power Supply | |
Max Power Consumption | 1.6W | |
Safety & Emission | FCC, CE, RoHS | |
Package Contents |
Media Converter MC200CM Power Adapter Installation Guide |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
What's in the Box
What's in the Box
- Media Converter MC200CM
- Power Adapter
- Installation Guide
