This unit requires a SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.
Description
What This Product Does
How This Product Works

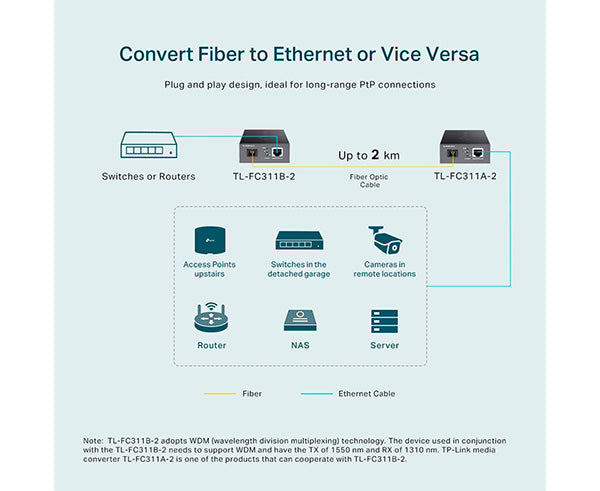

FC311B-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. FC311B-2 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the FC311B-2 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter FC311A-2 is one of the products that can cooperate with FC311B-2.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Features
- 1× 10/100/1000Mbps Auto-negotiation RJ45 Port Supports Auto-MDI/MDIX
- Auto-negotiation of Half-duplex/Full-duplex Transfer Mode

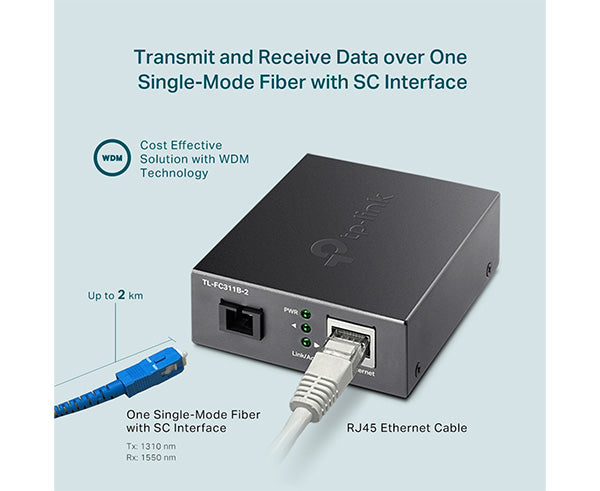

- Adopts WDM Technology, Transmitting and Receiving Data on One Single Fiber
- Extends Fiber Distance up to 2 km
Specifications
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH Non-condensing |
| Storage Humidity | 5% to 90% RH Non-condensing |
| HARDWARE FEATURES | |
|---|---|

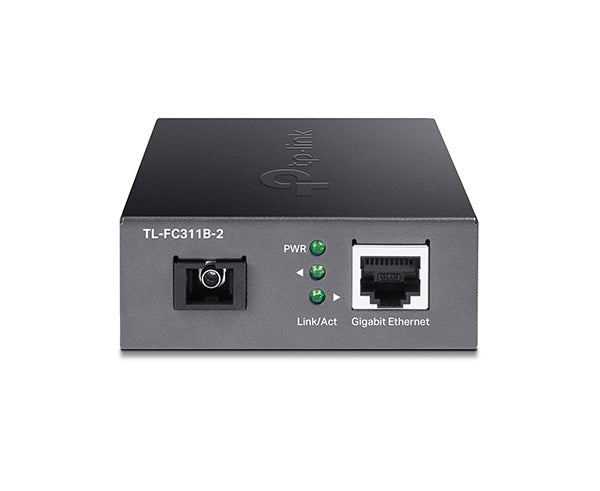

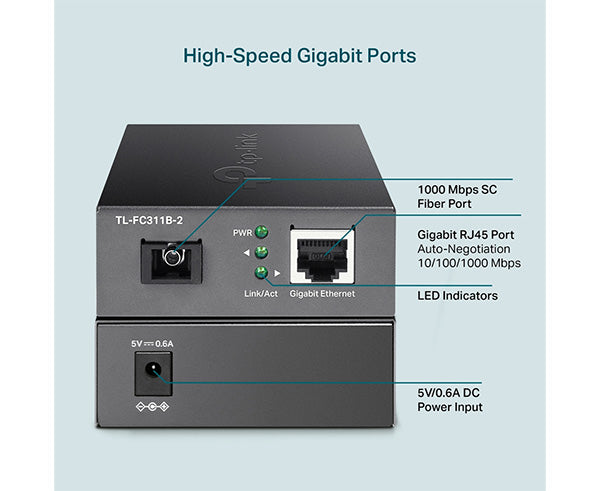

| Interface | • 1× Gigabit SC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single Mode Fiber • UTP Category 5, 5e cable (Maximum 100m) |

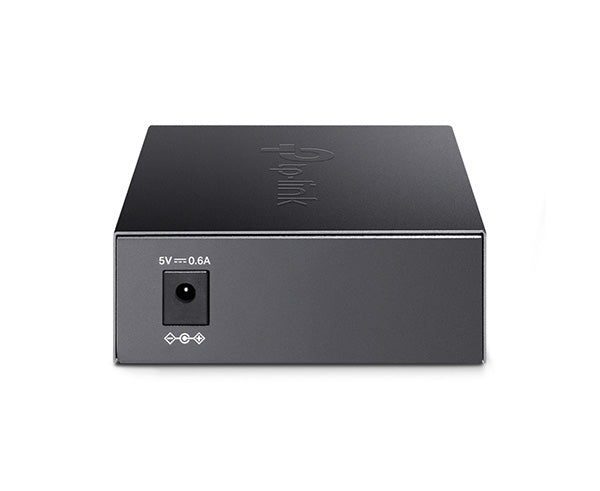

| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7 × 2.9 × 1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | • 1310 nm TX • 1550 nm RX |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Fiber Type | 9/125 μm Single Mode Fiber (≤2 km) |
What's in the Box
What's in the Box
- Media Converter FC311B-2
- Power Adapter
-
Installation Guide
