HDMI 2.0 2-Way Splitter (1-in/2-out) 4K at 60Hz

$55.00
SKU: AV8-4265SP2
Various lead times may apply to this product. Please contact us for more details.
RoHS Compliant HDMI logo Bullets_4Kx2K_full_hd Supports 3D Video

Description

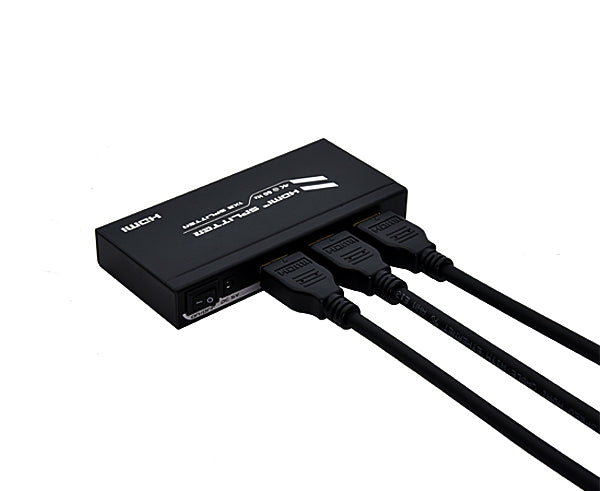

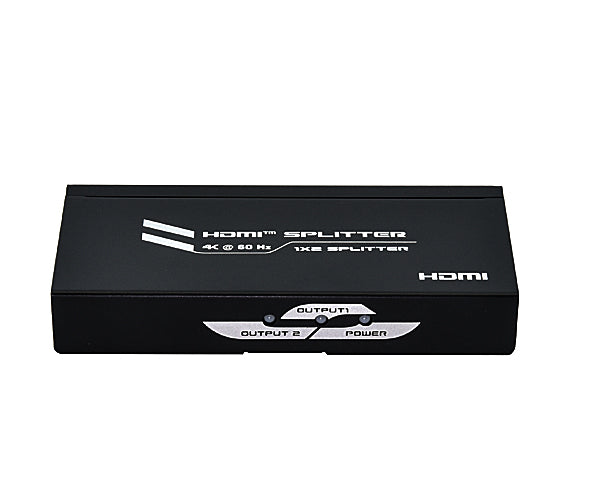

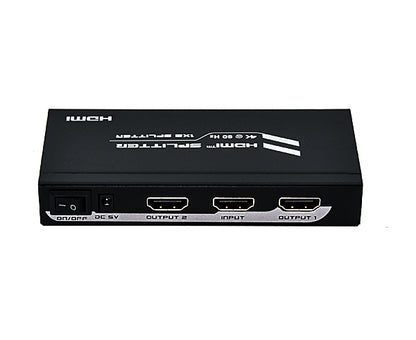

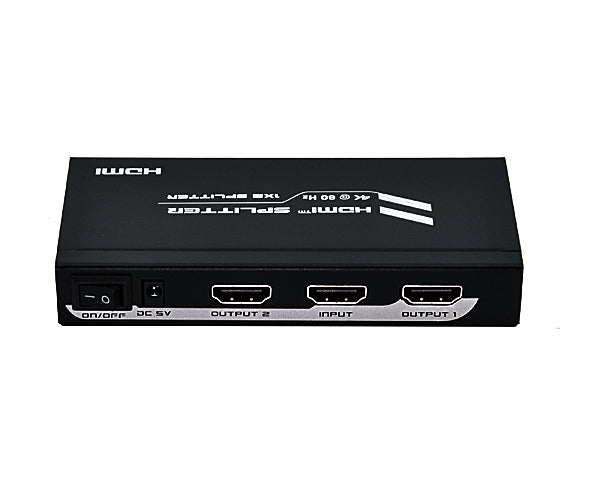

HDMI 2-Way Splitter (1-in/2-out) 4K at 60Hz

Our 1x2 HDMI Splitter distributes the input of the HDMI signal into 2 identical outputs simultaneously. Supporting 4K at 60Hz, the splitter will assure you amazing picture quality four times the resolution of 1080p at 60Hz. Even though it is a 4K HDMI Splitter, it is backward compatible with older revisions such as 108p/720p. Perhaps you are wanting to display a game on multiple TVs at a family event. Using this HDMI Splitter allows you to display the game on multiple devices coming from a single source (cable box, satellite box, blu ray player).

Features

Features

  • 1-in / 2-out HDMI splitter
  • No need to set up, plug, and play
  • Supports HDMI 3D 4K x 2K at 60Hz (Standard HDMI High Speed with Ethernet 28AWG cable)
  • Backward compatible with 720p and 1080p
  • Works with HDMI or DVID, HDCP-enabled HDTV
  • EDID Supported
  • Bandwidth up to 18Gbps
  • Support HDCP 2.2 and HDCP 1.4
  • Metal casing design and over all shielding without signal interference
  • LED light indicates signal and power mode
  • Supports audio formats: DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolbt-AC3 and DSD
  • RoHs compliant

Applications:

AV8-4294SP2 Diagram

Specifications

Specifications:

HDMI Source Input Port 1
Display Device Output Ports 2
Source Port Connector 19 Pin HDMI
Display Port Connector 19 Pin HDMI
HDCP Compliant Yes
Single Link Range 3840*2160
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 Volts P-P(TTL)
Deep Color 36 Bit
HDMI Version HDMI 2.0
Bandwidth Up to 600MHz
Signal Speed Up to 18Gbps
Weight 0.761lbs.
Cable Standard 26AWG HDMI 2.0
Vertical Frequency Range 60Hz
Power Consumption 2.5 Watts Maximum
Operation Temperature 0C-70°C
Working Voltage DC 5 Volts
Power Adaptor 5V 1A
Dimensions Length = 19" (482mm)
Width = 14.5" (368mm)
Height = 6" (152mm)

Additional Information

Additional Information

To learn more about our Amplifiers and Splitters here is a link to a page containing more information on our premium Amplifiers and Splitters.

For more info on HDMI, see below.

HDMI Type Max Resolution Transmission Rate HDR Audio Support
1.4 4K x 2K at 30Hz 10.2 Gb/s No
ARC, Dolby TrueHD, DTS-HD
2.0 4K at 60Hz 18 Gb/s
Yes
HE-AAC, DRA, 32 audio channels
2.1 8K at 30Hz
48 Gb/s
Yes
eARC

What's in the Box?

What's in the Box?

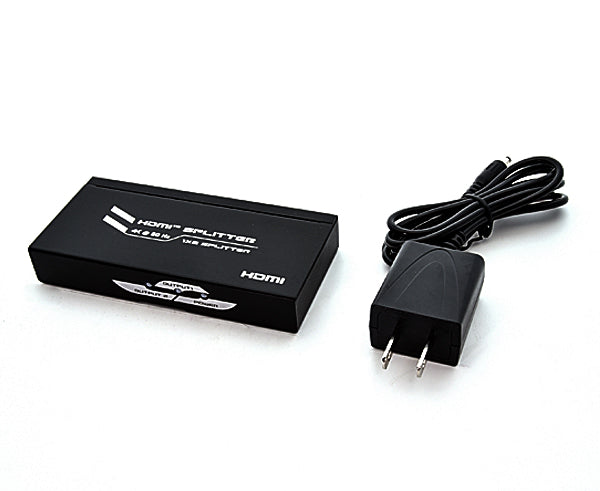

  • (1) - HDMI 2.0 2-Way (1-in/2-out) Splitter
  • (1) - 5V DC Power Adapter
  • (1) - Instruction Manual
