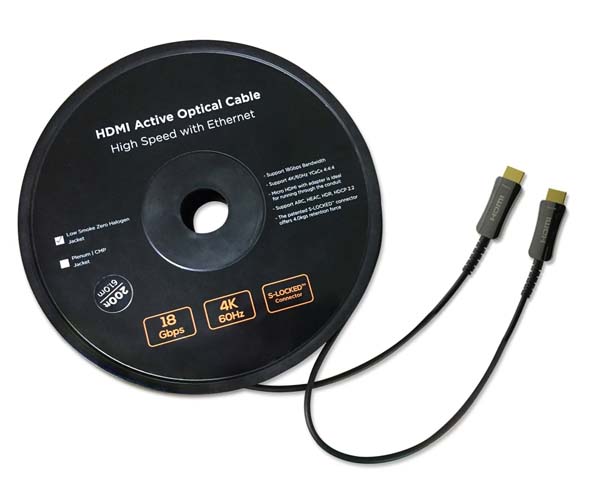

HDMI 2.0 Active Fiber Optic Cable, M to M, 4K/60Hz, 75FT, 100FT, 125FT, 150FT, 175FT, 200FT, 250FT, 330FT LSZH Jacket
Description
HDMI 2.0 Active Fiber Optic Cable, M to M, 4K/60Hz, LSZH Jacket
The Fiber Optical Hybrid HDMI cables are designed for commercial, studio, and residential use. Unlike conventional copper HDMI cables, these Fiber Optic Hybrid HDMI cables have an advanced chipset that enables the cables to maintain full 4K @ 60Hz HDMI signal integrity during long distance runs, making them the perfect solution for long distance HDMI connectivity.
This cable has a LSZH (Low Smoke, Zero Halogen) Jacket. This allows the cable to be installed in more areas and used in more applications because it will not produce toxic gases if it were to burn.
NOTE: Fiber Optic HDMI cables are different from ordinary HDMI copper cables. They supports single direction installation only, so they must be installed in the correct direction: "Source" label on HDMI end is connected to source devices like a computer, DVD and Xbox, etc.; "Display" end is connected to display devices like a TV, projector, etc.
| Jacket Type | In-Wall Installation | Flame Resistant | Wattage Rated | Ventilation Installation |
| Regular | N/A | N/A | N/A | N/A |
| CL2 | Yes | Yes | 150 Watts | N/A |
| CL3 | Yes | Yes | 300 Watts | N/A |
Features
Features
- Supports 18Gbps Bandwidth
- Supports 4K/60Hz YCbCr 4:4:4
- Supports ARC, HEAC, HDR, HDCP 2.2
- No External Power Supply Required
- Cable Diameter: OD4.6mm (±0.2mm)
Specifications
Specifications
Additional Information
Additional Information
Please visit our Understanding HDMI Page to learn more about our HDMI cables and HDMI Technology in general.
| HDMI Type | Max Resolution | Transmission Rate | HDR | Audio Support |
| 1.4 | 4K x 2K at 30Hz | 10.2 Gb/s | No |
ARC, Dolby TrueHD, DTS-HD |
| 2.0 | 4K at 60Hz | 18 Gb/s |
Yes |
HE-AAC, DRA, 32 audio channels |
| 2.1 | 8K at 30Hz |
48 Gb/s |
Yes |
eARC |
What's in the Box
What's in the Box
- (1) - Active Fiber Optic Cable HDMI 2.0 Cable 4K/60Hz, LSZH Jacket
