MTP/MPO, APC Polish, Fiber Optic Cable, 12 Strand, Single-Mode 9/125, OS2, Plenum, Female-Female, Method C
No exchanges or refunds.
All MTP/MPO Cables are custom made and have up to a 10 day lead time.
Description

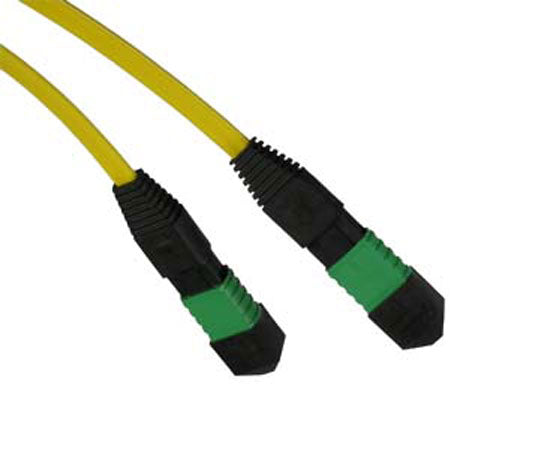

Plenum MTP®/MPO Fiber Optic Cables, Single-Mode 9/125 OS2, 12 Strand, Female to Female
These high speed Single-Mode 9/125um OS2 Polarity Type C Fiber Cables are terminated with MTP® fiber optic connectors on both ends (MTP-MTP). The MTP® ("Multifiber Termination Push-on") connector is a multifiber connector developed by USConec that contains up to twelve optical fibers within a single ferrule.
Each one of the MTP® cables contain 12 fibers channels in a connector smaller than most duplex connections in use today. MTP® fiber cables are designed as a high-performance version of the MPO style cable and will interconnect with MPO connectors.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Available in three polarity types:
- Type-A (Straight Through)
- Type-B (Cross, Flipped)
- Type-C (Cross Pair, Rollover)
Features
- High speed plenum Single-Mode 9/125um OS2 fiber cables
- Terminated with MTP® fiber optic connectors on both ends (MTP-MTP)
- APC Polish Type
- Available in multiple lengths from 1 Meter to 50 Meters
- Method C Polarity (Cross Pair, Rollover)
