NDAA Compliant 4K Outdoor 4-Channel Multi-Sensor Camera
by Primus Cable
$4,998.00
SKU: NPNB-BN9108R/NDAA
Description

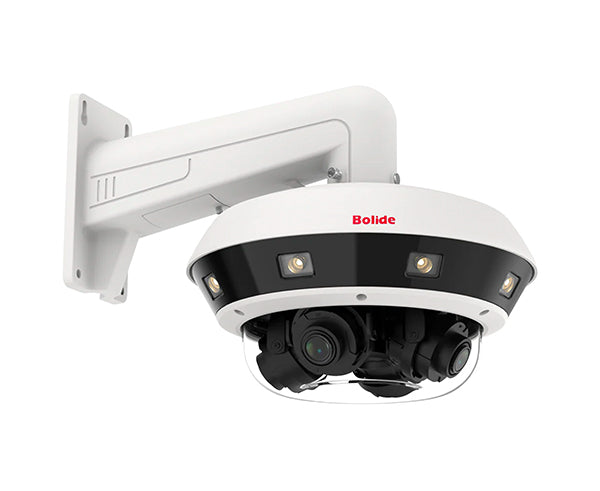

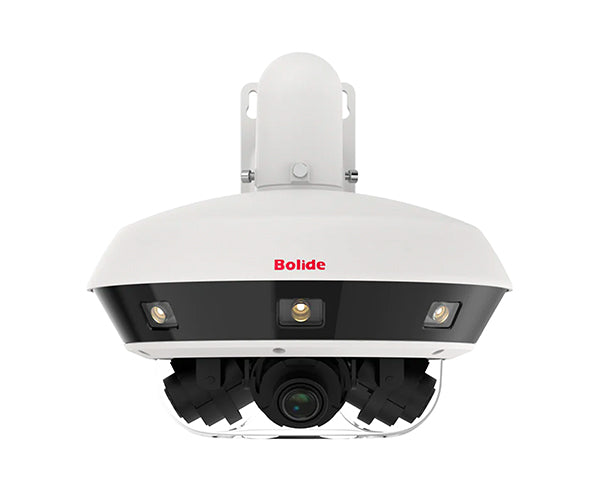

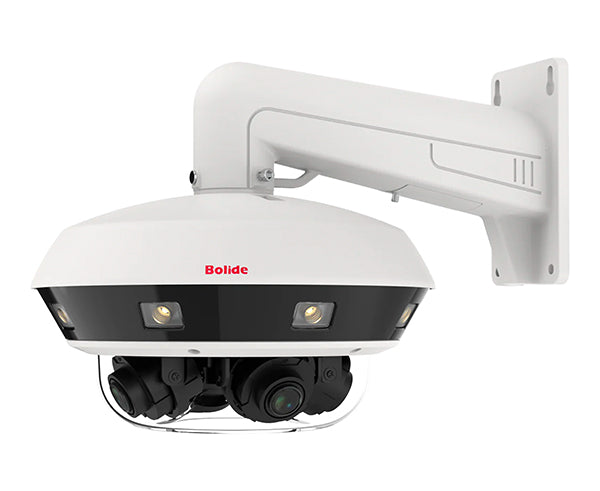

NDAA Compliant 4K Outdoor 4-Channel Multi-Sensor Camera
The new NDAA Compliant 4K Outdoor 4-Channel Multi-Sensor Camera features a 4-Channel Steam Output, and Each Channel Can Output Max. 8MP (3840x2160) @ 25/30FPS. These 4 Adjustable Lenses In One Camera Can Cover Up to a 360° Field of View.
Features
Features
-
4 Adjustable Lenses In One Camera Cover Up to 360° Field of View
-
4-Channel Steam Output, and Each Channel Can Output Max. 8MP (3840x2160) @ 25/30FPS
-
4-Channel Starlight and 120Db WDR
-
All-in-One, Design IP, Multi-Channel, Multiple Use
-
The Intelligence Functions of 4 Channels Can Be Enabled At The Same Time
-
Built-in Dual Source Illuminator ( IR & Warm light )
-
IP67 / IK10 Water Resistant and Vandal-Proof, Preventing Water Ingress for Outdoor Use
Specifications
Specifications
|
Mechanical Specifications |
|
|---|---|
| Image Sensor | 1/1.8" Progressive CMOS (EA) |
| Max Resolution | 8MP 3840 (H) × 2160 ( EA ) |
| Min. Illumination | Color 0.006Lux @ F1.2 ( AGC ON ); B/W 0.002 lux @ ( F1.2, AGC ON ); 0 Lux with IR On / White Light On |
| Shutter Time | 1/5s – 1/20,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Four Flexible Lens in One Track, Slide range: -60° to 60°, Tilt: 0° to 90°, Rotate: 0° to 355° |
| Lens | 2.8 ~ 12mm, Varifocal Motorized Lens |
| Field of View | Horizontal FOV: 48° to 112° Vertical FOV: 27° to 58° Diagonal FOV: 55° to 138° |
| Lens Mount | 16.7 |
| Aperture | Max. F1.30 |
|
Illuminator |
|
| Supplement Light Type | IR and Warm Light |
| Supplement Light Range | Up to 98Ft (IR) / 49Ft ( Warmlight ) |
| IR Wavelength | 850nm |
| Smart Supplement Light | Yes |
|
Video |
|
| Resolution | Main Stream: 50/60Hz: 25FPS 8MP (3840x2160) 5MP (2592x1944, 3072x1728) 4MP (2592x1520) 3MP (2304x1296) 1080P(1920x1080) 960P (1280x960) 720P(1280x720) Sub Stream: 50/60Hz: 25FPS 720P(1280x720) VGA (640x480), QVGA (320x240) |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 8Kbps to 16Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | Yes |
What's In The Box?
What's In The Box?
- Qty 1 - NDAA Compliant 4K Outdoor 4-Channel Multi-Sensor Camera
