Network Relay Rack, 2 Post, 42U, 45U, 48U, Aluminum or Steel
by Primus Cable
$170.00
SKU: TR-4916-45US
Description

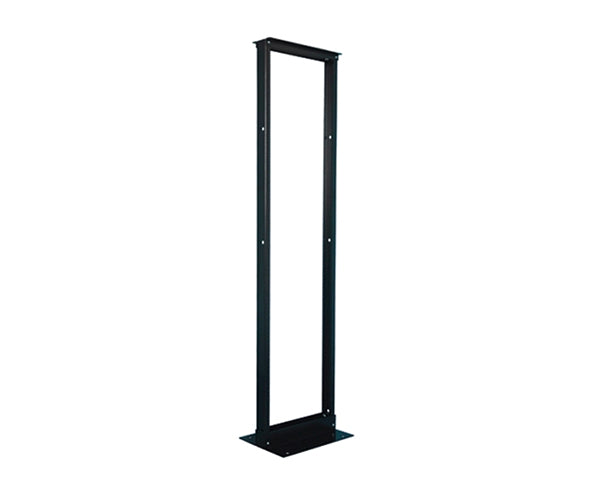

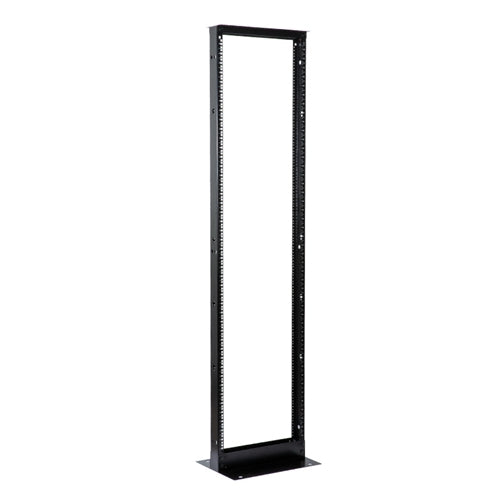

Network Relay Rack, 2 Post, 42U, 45U, 48U, Aluminum or Steel
Primus Cable 2 Post Relay Racks are designed to work in a variety of rack system environments where a strong, stable, and durable relay rack is desired. The racks made of Steel or Aluminum options, and with a small footprint that saves floor space, this 2 Post Relay Rack provides unrestricted airflow for maximum ventilation and easy access to cables for moves, adds, and changes.
Our racks are offered in either high grade aluminum or steel and support up to 1,000 lbs. of standard 19 Inch EIA equipment. Available in multiple heights, these racks include 10-32 tapped holes and RU markings on both sides for fast and convenient equipment mounting.
Features
Features
- 1,000 lb. load capacity
- Durable 4mm aluminum or steel construction
- RU markings on rails simplify equipment installation
- Base plates are pre-drilled for mounting to floor
- Small footprint
- Flat packed and easy to assemble
Specifications
Specifications
|
Network Relay Rack, 2 Post, 42U, 45U, 48U |
||
|---|---|---|
| Product Type |
Steel Relay Rack |
Aluminum Relay Rack |
| Frame Material |
Cold Rolled Steel |
4mm Aluminum |
| Equipment Support |
1.75” RU Spacing, Marked and Numbered on Rails; 19”W, EIA-310-D Universal Hole Spacing; 10-32 Threaded Holes / Square Cage Holes. |
1.75” RU Spacing, Marked and Numbered on Rails; 19”W, EIA-310-D Universal Hol e Spacing; 10-32 Threaded Holes |
| Finish |
Black Powder Coat |
Black Powder Coat |
| Rack Unit Quantity |
42U, 45U, 48U |
42U, 45U, 48U |
| Included Accessories |
(48) 10-32 Mounting Screws & Washers, (48) Cage Nuts, (1) Assembly Instructions |
(48) 10-32 Mounting Screws & Washers, (1) Assembly Instructions |
| Optional Accessories |
Double Sided Center Mount Shelf, 2U; 42U, 45U or 48U Vertical Finger Duct Cable Manager; Horizontal D-Ring Cable Manager- 5 Rings, Plastic, 1U; Horizontal Finger Duct Cable Manager- Steel, 1U; Steel Ring Cable Manager, 1U; 12”, 14”, or 16” Depth Cantilever Shelf, 2U |
Double Sided Center Mount Shelf, 2U; 42U, 45U or 48U Vertical Finger Duct Cable Manager, Horizontal D-Ring Cable Manager- 5 Rings, Plastic, 1U; Horizontal Finger Duct Cable Manager- Steel, 1U; Steel Ring Cable Manager, 1U |
| Compliance & Standards |
ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
Additional Information
Additional Information
- Open design provides exceptional airflow and fast / easy access to equipment
- Available in multiple sizes to fit individual needs
What's in the Box?
What's in the Box?
- Qty 1 - 2-Post (Aluminum or Steel) Relay Rack + Included Accessories
