Cable Standoff w/Lock

$0.40
SKU: PP6-4958-CS7
UL Listed Made in USA CSA

Description

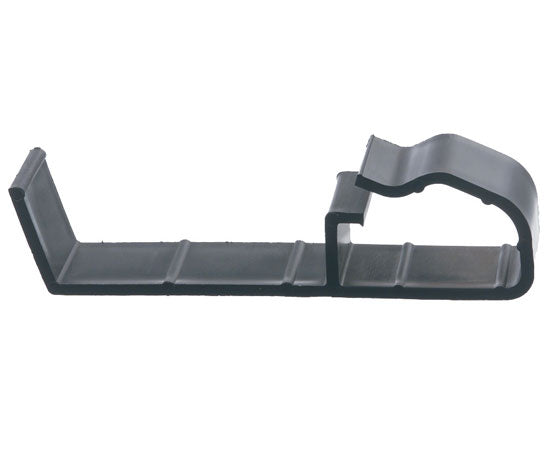

Cable Standoff w/Lock

Our cable standoffs position non-metallic, flat or round sheathed cable, phone/data cable, and coaxial cable at a safe distance from a nailing surface. This product installs with a screw or nail, featuring a positive lock to keep cables in place.

Product Quality

This product holds up to 5 runs of 12/2 non-metallic sheathed cable, up to 8 runs of CAT5 cable, up to 4 runs of CAT6 cable, up to 5 runs of coaxial cable.

Features

Features

  • Positions cables at a safe distance from nailing surface
  • Positions cable 2" from a furring strip or 2x4 stud
  • Features a positive lock to keep cables in place
  • Positions both flat and round NM cables
  • Complies with 2005 NEC Article 300-4d

Supports

  • Up to five runs of 12/2 non-metallic sheathed cable.
  • Up to eight runs of CAT5 cable.
  • Up to four runs of CAT6 cable.
  • Up to five runs of coaxial cable.

Specifications

Specifications

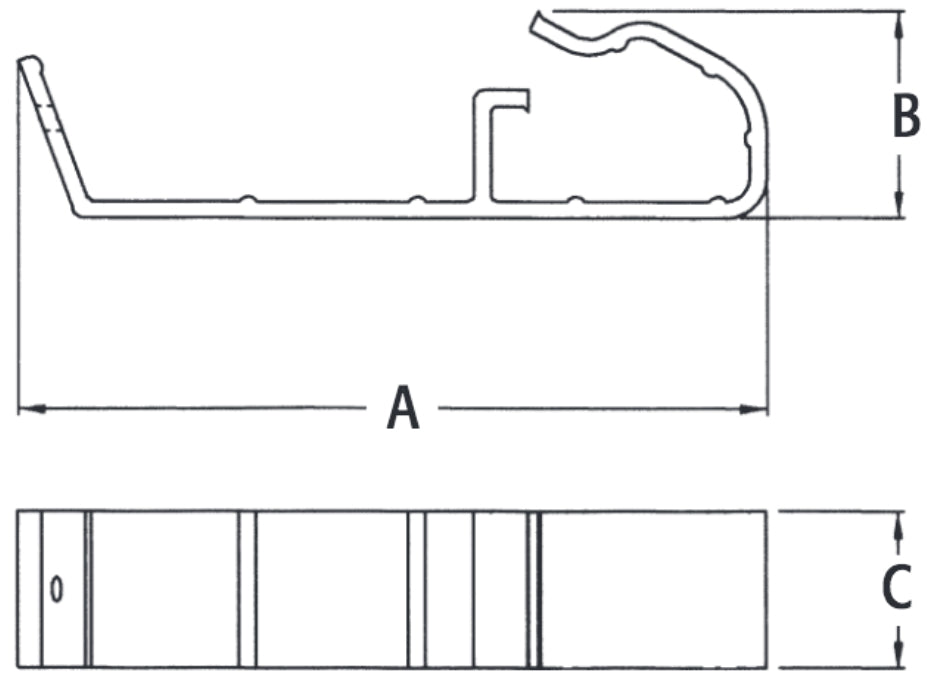

Item Number DIM A DIM B DIM C
CS7 10.875
3.9375
7.375

What's in the box?

What's in the box?

  • Qty 1 - Non-metallic Cable Standoff w/Lock, Black
