Description

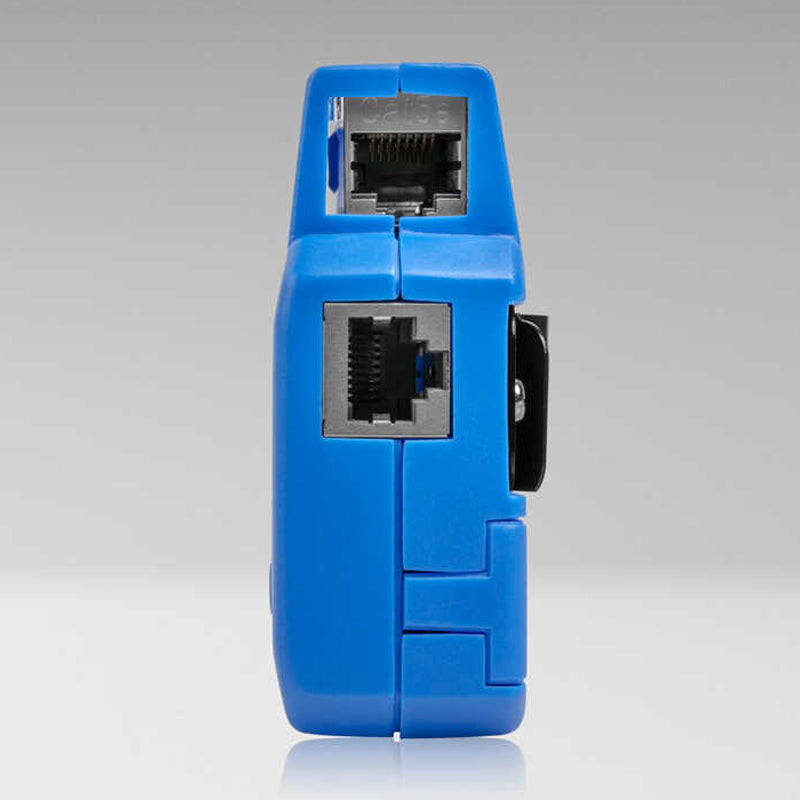

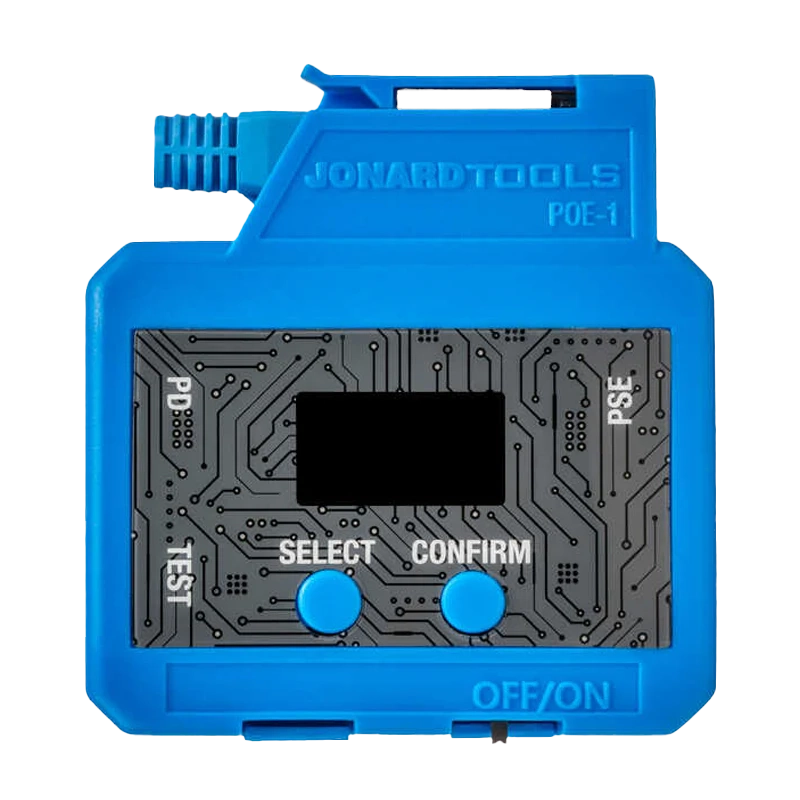

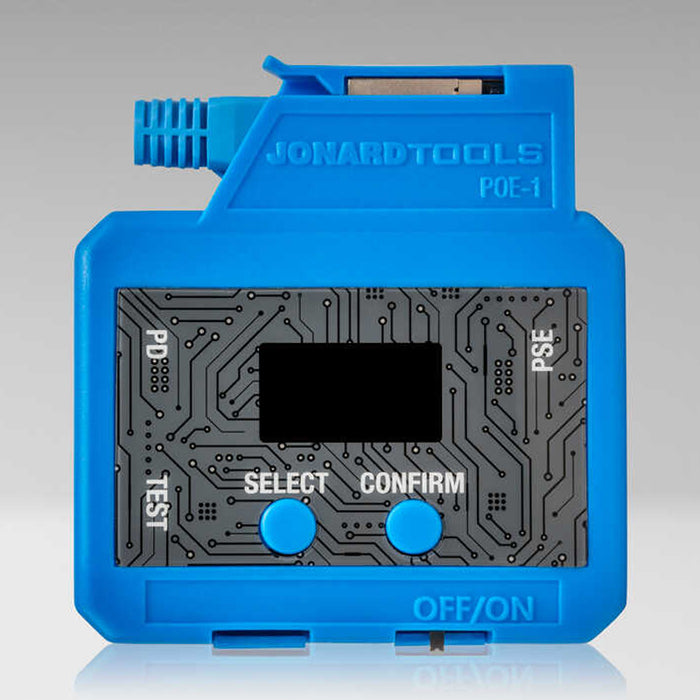

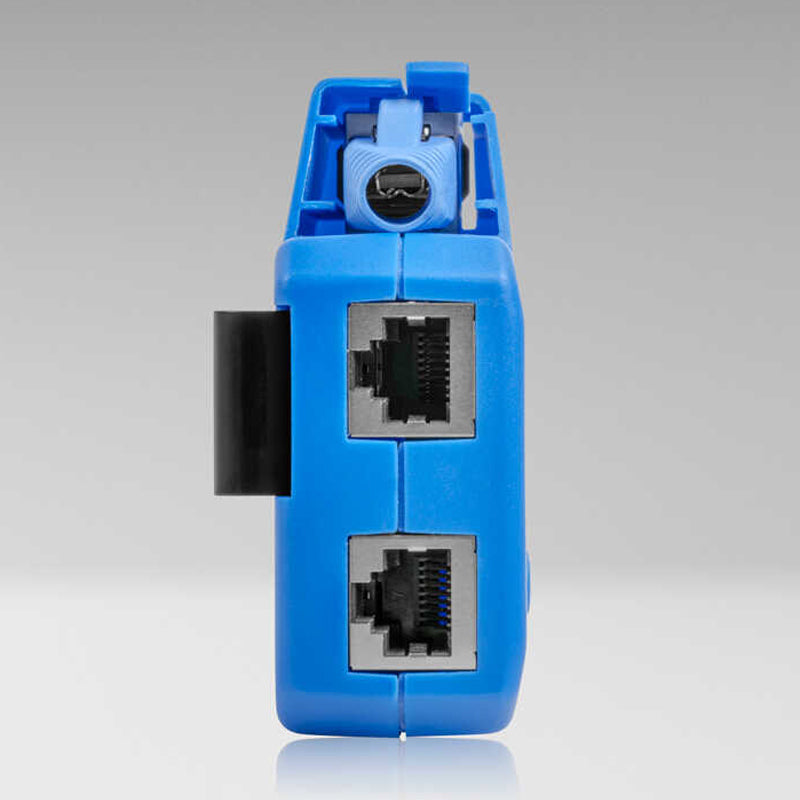

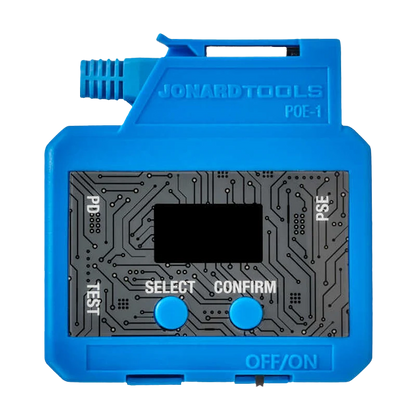

PoE & Cable Testing Tool
Engineered to tackle the dual challenges of PoE testing and network cable continuity verification, our all-in-one PoE tester is a game-changer for network technicians and professionals.
Features
Features

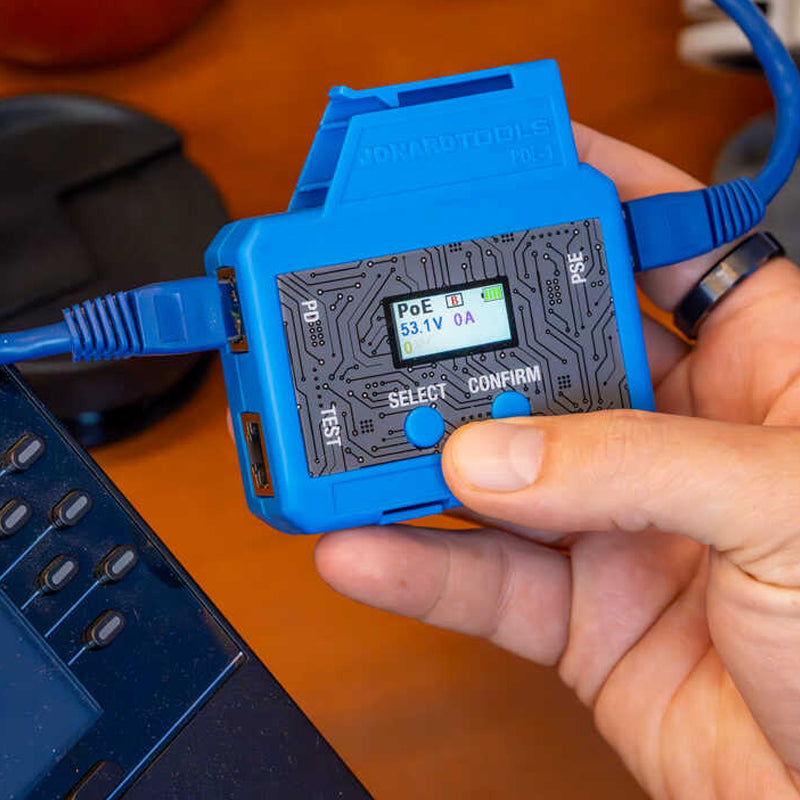

- Instantly verify the presence of PoE and determine the Voltage, Amperage, and standards of Ethernet cables, supporting Passive, 802.3af, 802.3at, and 802.3bt standards

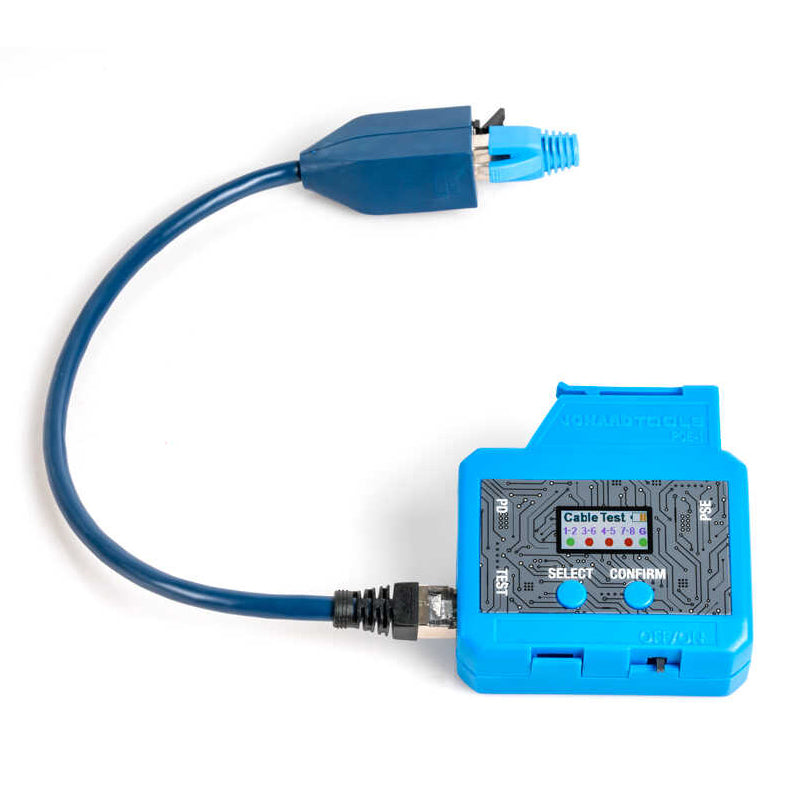

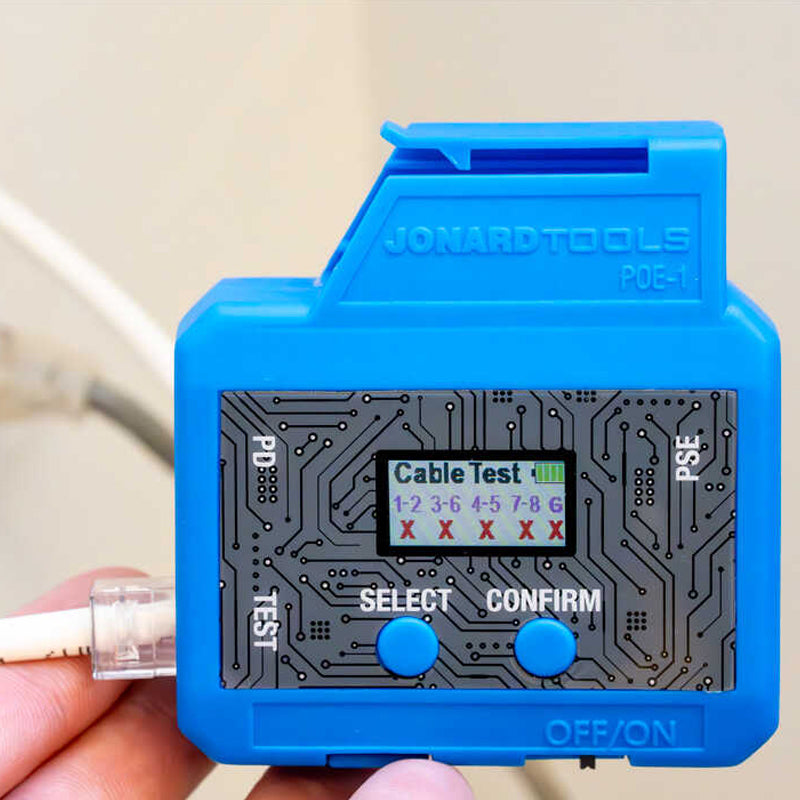

- Ensure flawless data transmission by measuring the resistance and verifying the continuity of Cat5, Cat5e, Cat6, and Cat6a network cables
- PoE tester can be used without a battery, using the PoE to power the device
- Can be used to test the resistance and continuity of unpowered network cables using an AA battery as the power source
- Durable construction built to withstand endure challenging environments, ensuring reliable performance wherever the job takes you
- Compact and lightweight design with included belt clip makes this highly portable for on-the-go use
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CONNECTOR TYPE | RJ45 |
| TEST TYPE | POE, CONTINUITY |
| POE RANGE | 12 TO 57 VOLTS, 0 TO 1500 MA |
| POE METHOD | PASSIVE (SIMULATED 802.3AF) |
| POE STANDARD | 802.3AF/AT |
| POE STANDARDS SUPPORTED | PASSIVE, 802.3AF, 802.3AT, 802.3BT |
| DIMENSIONS | 3.15 IN X 2.96 IN X 1.49 IN (8 CM X 7.52 CM X 3.78 CM) |
| WEIGHT | 0.21 LB (95.34 G) |
| UPC # | 810132437410 |
Additional Information
| Product Videos | |
|---|---|
POE & CABLE TESTING TOOL (POE-1) |
HOW TO USE A POE AND CABLE TESTING TOOL (POE-1) |
What's In The Box
What's In The Box
- Qty 1 - PoE & Cable Testing Tool
