Pre-Terminated Assembly - 2 Strand Micro-Core, Coiled Steel Armored SM, Indoor Plenum, 18" Breakout, SC/SC, Pull Eye On One End - 350FT

Pre-Terminated Assembly - 2 Strand Micro-Core, Coiled Steel Armored SM, Indoor Plenum, 18" Breakout, SC/SC, Pull Eye On One End - 350FT

by Primus Cable
$315.00
SKU: FB1A-082-SC/SC-350FT
Strand Count
Length

If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.
This product has a minimum $50 associated cut fee applied to the shipping cost

Made in USA UL Listed RoHS Compliant Made with Corning Glass

(We do not offer credits or returns for this item, it is sold as is.)

If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleyes please call or email us.

Description

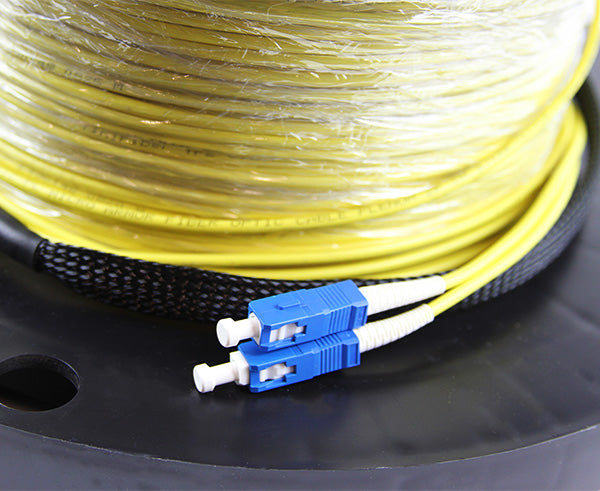

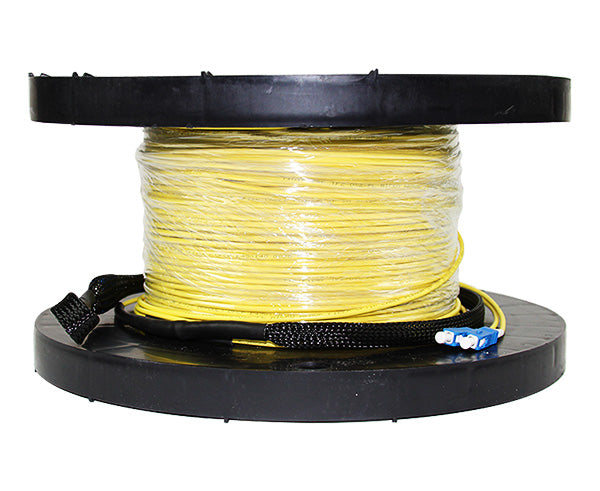

Pre-Terminated Assembly - 2 Strand Micro-Core, Coiled Steel Armored SM, Indoor Plenum, 18" Breakout, SC/SC, Pull Eye On One End - 350FT

Micro-Core Plenum Armored Fiber Optic Cable offers the smallest diameter of any conventional armored cable. This is the lightest and smallest armored fiber with superior flexibility. It easily fits through conduit and tight spaces. Micro-Core armored fiber is 65% smaller and 75% lighter than conventional AIA (Aluminum Interlocking Armor.)

Both crush and rodent resistant, micro-core armored fiber is the most durable while offering the maximum bend radius and tensile strength. Manufactured with Corning® ClearCurve® Optical Fibers and made in the USA.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

  • 9/125um OS2 SingleMode 18" Breakout
  • Encased in Stainless Steel Coiled Tubular Armor
  • Durable OFNP Plenum Jacket.

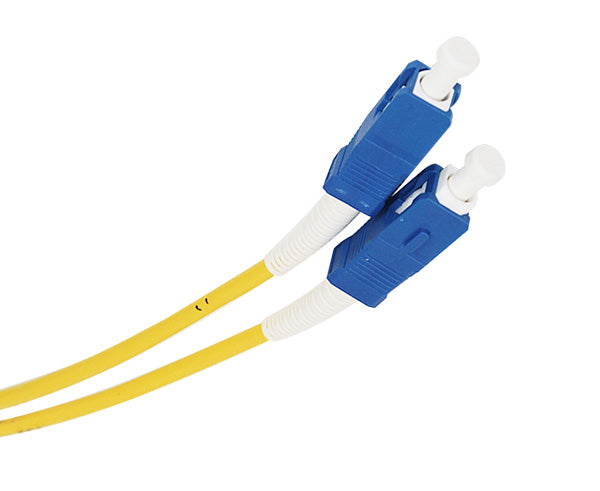

  • Terminated with SC/SC Connectors at Both Ends
  • Exclusive use of Corning® ClearCurve® Optical Fibers.

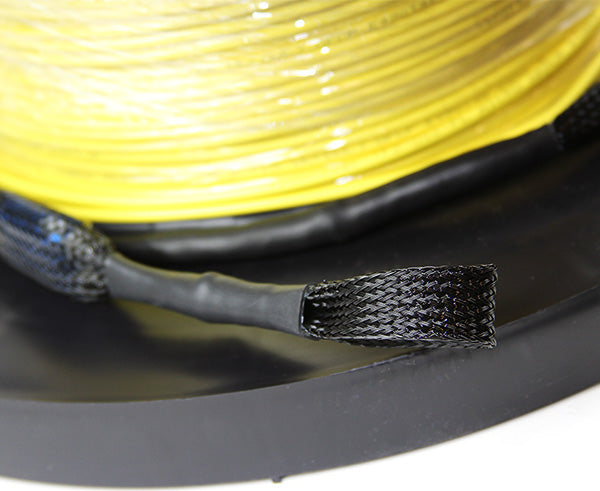

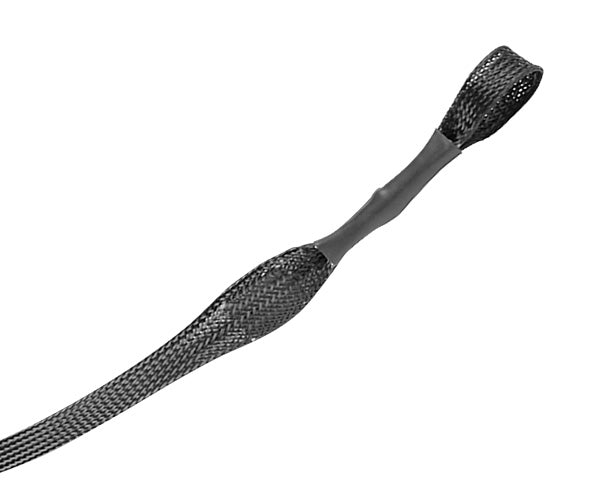

  • Pull Eye On One End
  • Durable Jacket Offers Added Protection During Installation and in Rugged Use Applications.

Applications

  • Indoor Premise
  • Duct
  • Conduits
  • Patch

Specifications

Single Mode Fiber Information

Single Mode Fiber Cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width.

Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
