Description

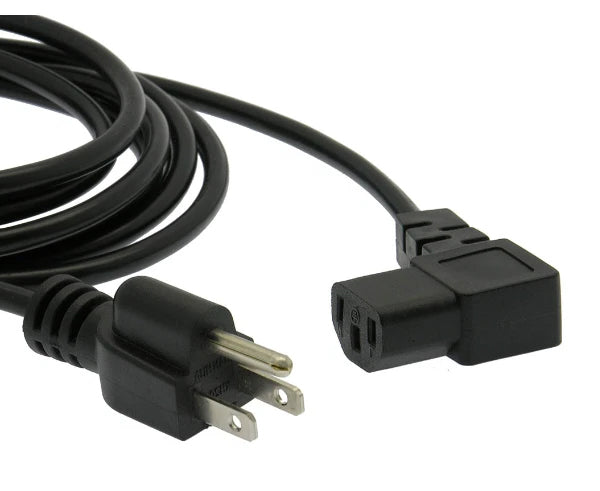

Right Angle Computer Power Cable
Our Right Angle Computer Power Cables are a great choice for applications that require a new or replacement power cable. This power cable is compatible with North American products such as computers, monitors, printers, projectors and HDTV's. Keep your cables neat and tidy by purchasing the lengths you need. 18AWG is a standard gauge cable and will work perfectly in most applications. These cables are designed to carry up to a 10 amp, 125 volt load. They are safe, strong and reliable.
Features
Features
- NEMA 5-15P plug end to a IEC-320 C13
- AC125V 10A 1250W
- Right Angle Connector Types
- 18AWG / 3
- UL CSA Approved
- RoHS compliant
Specifications
Conductor
AWG |
Resistance Maximum |
#18 (41/0.154) |
at 20ºC ≤ 22.4 ohms/km, at 25ºC ≤ 22.8 ohms/km |
Insulation
Minimum Thickness |
Diameter |
Length of Lay |
0.33mm |
2.0 ± 0.1mm |
44M |
Jacket
Minimum Thickness |
Average Thickness |
Overall Diameter |
0.61mm |
0.76mm |
6.3 ± 0.1mm |
Electric Testing
Voltage Rating |
Plug (SF-31) Rated Power |
Plug (SF-82) Rated Power |
Wire |
Power |
AC ≥ 1500V/S |
125V 10A UL-E94923 CSA-LR62202 |
125V 10A UL-E94923 CSA-LR62202 |
SVT 18/3 Rated |
300V 10A UL-E313867 CSA-LL95737 |
Additional Information
Computer Power Cable Accessories
With the wireless revolution in full swing, it's sometimes easy to forget that actual physical power cords are still in use. Your laptop or desktop has plenty of built-in wireless capabilities, but it requires a dependable stream of power. Our PC power cords and computer power cords combine first-rate performance with affordable value. The PC power cable isn't going away anytime soon, so make sure your equipment has the best power source available.
To learn more about our Computer Power Cables please visit our overview page. Our Computer Power Cables can be combined with a wide array of products such as:
What's in the box?
What's in the box?
- Qty 1 - Right Angle Computer Power Cord
