Security Alarm Cable - Plenum (CMP) - 18/12 AWG, CL3P, Stranded (7 Strand), Shielded, 1000ft, White
Description
18/12 Shielded Alarm Cable for Residential & Commercial Security Systems

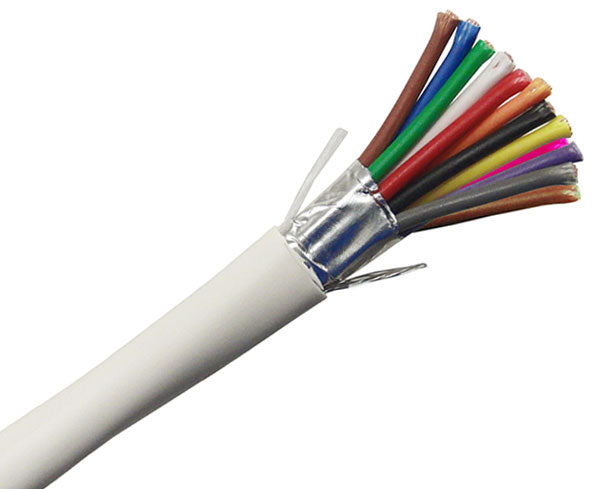

Our Bulk Security Alarm Cables, or alarm wire, are custom-made to fulfill alarm system installation needs. This plenum alarm cable features twelve 18-gauge bare copper conductors with 7 strands, coupled with a low smoke CMP jacket for fire safety and aluminum mylar shielding to protect against external electromagnetic interference. Proudly crafted in the USA, this security cable is specifically designed for installation in security systems, intercom systems, power-limited controls, and sound/audio systems.
Product Quality
We stock a wide variety of high quality alarm cables to meet all your needs. Our bulk security cables come with both riser and plenum rated jacket. Be sure to check the building code requirements before purchasing alarm cable. The alarm cable also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.
Applications
A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.
Why Plenum?
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
Features
Features
- 18 AWG 12 Conductors
- Plenum Rated
- 7 Stranded Bare Copper Conductors
- Low Smoke PVC Insulation
- Shielded
- Low Smoke White PVC Jacket
- Sequential Footage Marking
- CL3P/FPLP Rated
- ETL Listed
- RoHS Compliant
- NEC Articles
- 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
- 14-12 AWG: FPLP, CL3P
Conductor Jacket Color
- Black
- Red
- White
- Green
- Brown
- Blue
- Orange
- Yellow
- Purple
- Gray
- Pink
- Tan
Residential or Commercial Applications
- Security Systems
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 18 AWG |
| Insulation | Low Smoke PVC |
| Nominal OD | 7.85mm |
| Outer Jacket Diameter | .457mm |
| Jacket | Low Smoke PVC |
| Jacket Color | White |
| Number of Strands | 7 |
| Conductor Insulation | .009" PVC |
Electrical Characteristics |
|
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300V |
Additional Information |
|
|---|---|
| Standards | ETL | RoHS | CMP |
| Applications | Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls |
| Jacket Printing | 18 AWG 12C SHIELDED TYPE CL3P/FPLP c(ETL)us TYPE CMP 3054355 |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
What's in the Box
What's in the Box
- Security Alarm Cable - Plenum (CMP) - 18/12 AWG, CL3P, Stranded (7 Strand), Shielded, White
- 1000 Ft
