Description

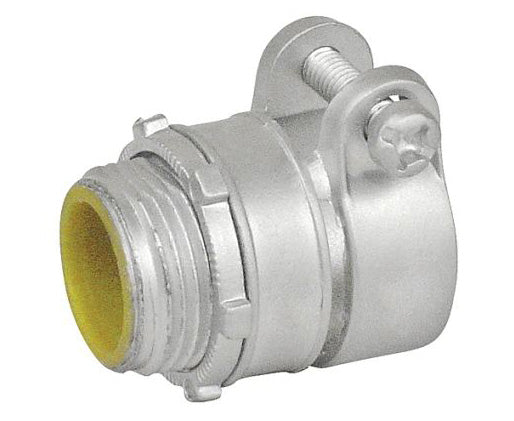

Straight Squeeze Type Connector

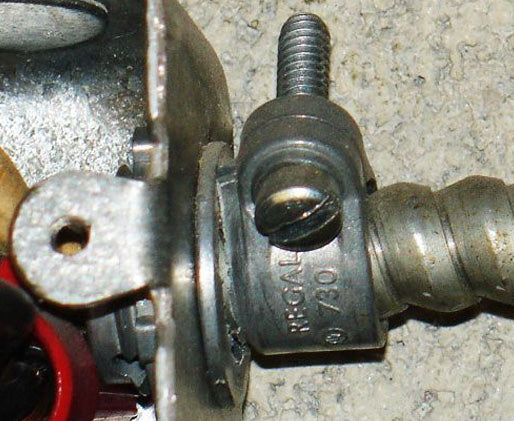

Straight squeeze type connectors with insulated throats are used in dry locations to bond flexible metal conduits to boxes or enclosures. Primus Cables' rugged metallic construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Their insulated plastic throat prevents wires from being cut or skinned by sharp edges when being pulled through conduits.
Features
Features
- Used in dry locations to bond flexible metal conduits to boxes or enclosures
- Rugged metallic construction maintains solid grounding of the conduit to the designated electrical box
- Insulated plastic throat prevents wires from being cut or skinned by sharp edges when being pulled through conduits
Specifications
Specifications
| Part Number | Trade Size |
| NPNB-SQZ38i | 3/8" |
| NPNB-SQZ50i | 1/2" |
| NPNB-SQZ75i | 3/4" |
| NPNB-SQZ100i | 1" |
| NPNB-SQZ125i | 1-1/4" |
| NPNB-SQZ150i | 1-1/2" |
| NPNB-SQZ200i | 2" |
| NPNB-SQZ250i | 2-1/2" |
| NPNB-SQZ300i | 3" |
| NPNB-SQZ350i | 3-1/2" |
| NPNB-SQZ400i | 4" |
What's in the box?
What's in the box?
Qty= 1 - Straight Squeeze Connector w/ Insulated Throat
