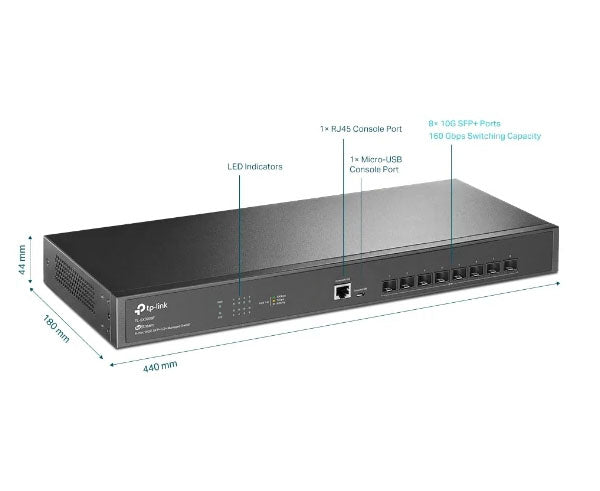

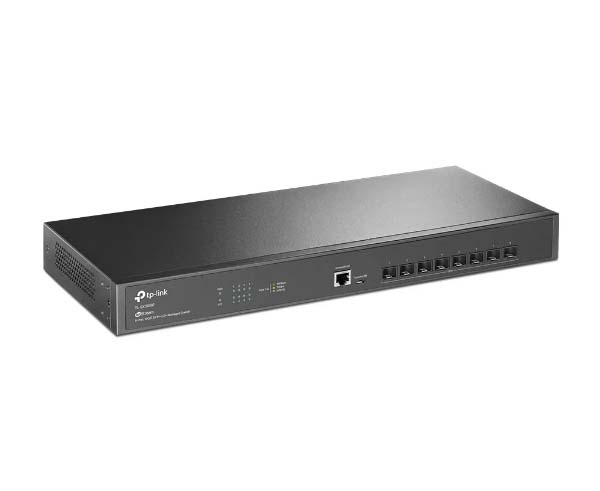

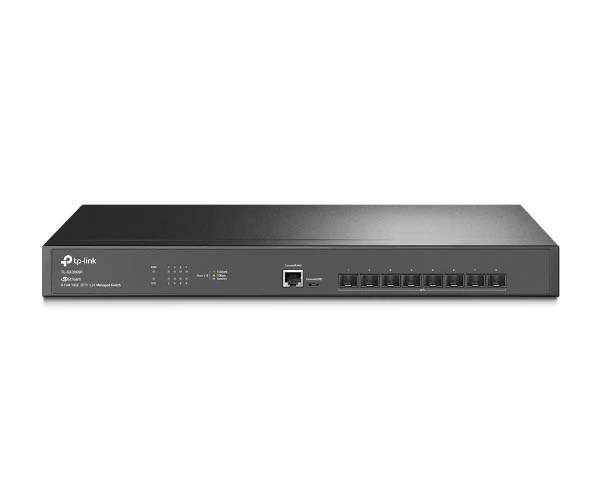

SX3008F TP-Link|Omada JetStream 8-Port 10GE SFP+ L2+ Managed Switch
Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link SX3008F—a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced QoS
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
Features
Features
-
10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Easy and convenient management with cloud access and Omada app.
- Static Routing: Route internal traffic for the efficient use of network resources.
- Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.
- Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
-
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifications
Specifications
| HARDWARE FEATURES |
||
|---|---|---|
| Interface | 8 x 10 GE SFP+ Slots | |
| Fan Quantity | Fanless | |
| Power Supply | 100-240VAC, 50/60Hz | |
| Dimensions (W x D x H) |
17.6 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
|
| Max Power Consumption | 15.46 W (220V/50Hz) | |
| Max Heat Dissipation |
52.75 BTU/hr (220 V / 50 Hz) |
|
| PERFORMANCE |
||
|---|---|---|
| Switching | 160 GBPS | |
| Packet Forwarding Rate | 119.04 Mpps | |
| MAC Address Table | 32 K | |
| Packet Buffer Memory | 16 Mbit | |
| Jumbo Frame | 9 KB | |
| GENERAL |
||
|---|---|---|
| Certification | CE, FCC, RoHS |
|
| Package Contents |
TL-SX3008F Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. | |
| Environment |
Operating Temperature: 0–45 ℃ (32–113 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our switches please visit our overview page. Our Switches can be combined with a wide array of products.
What's In The Box
What's In The Box
- Qty 1 - SX3008F
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Resource CD
- Qty 4 - Rubber Feet
