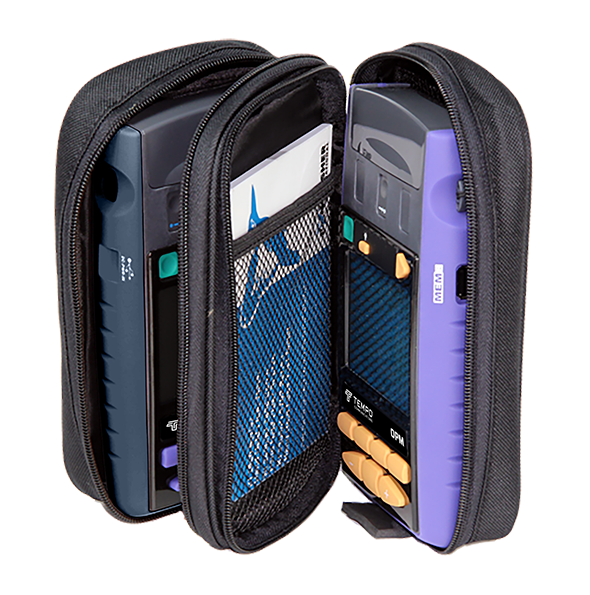

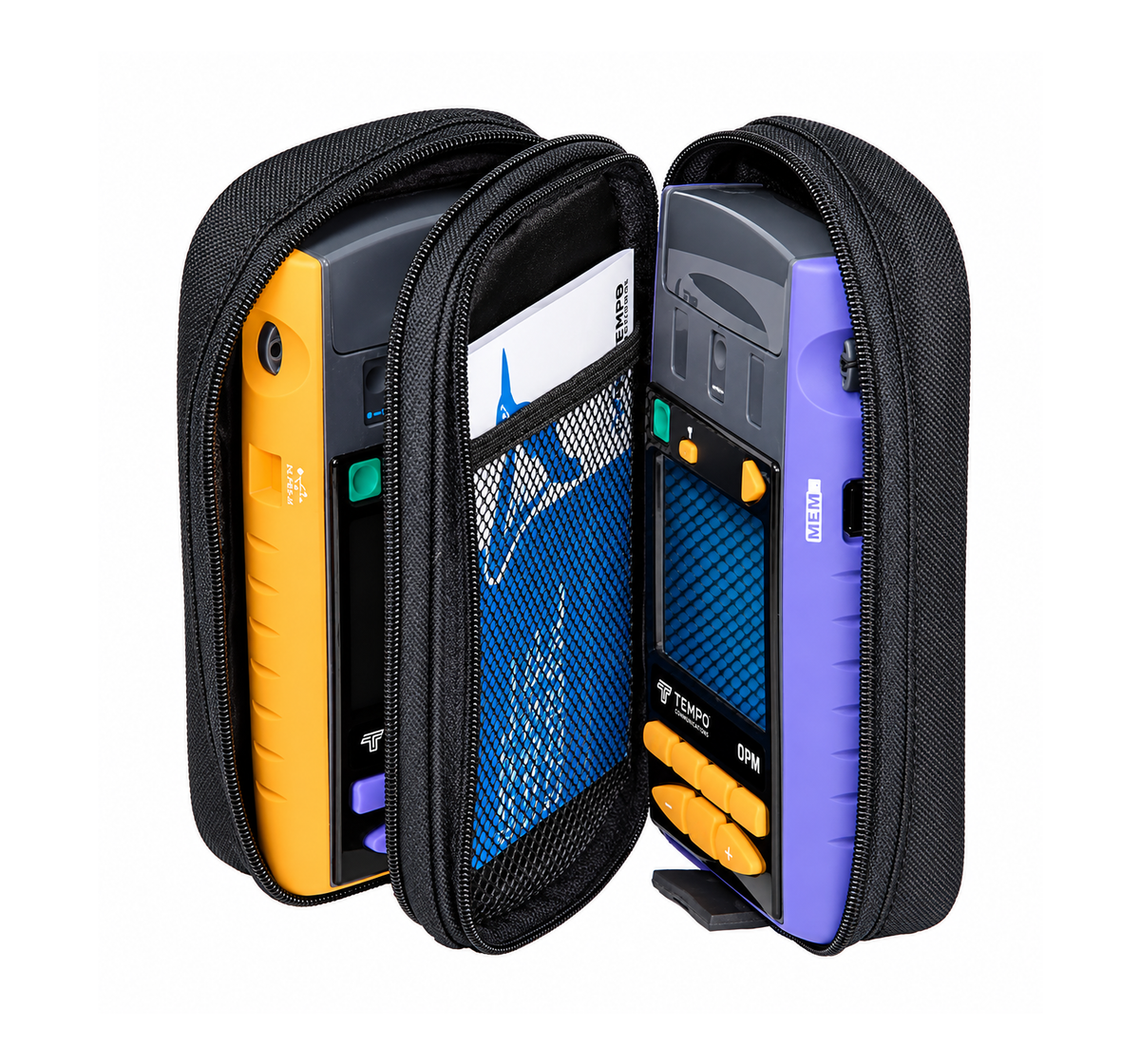

A fiber testing kit with an optical power meter and light source, effective for low to medium test volume on single mode & multimode systems.
Description
Typical Testing Applications
- Optical power at 25 calibrated wavelengths, -60 to +15 dBm range.
- Optical loss on SM fiber 1310 / 1550 nm, 60 dB range.
- Optical loss on MM fiber 850 / 1300 nm, 40 dB (@ 62.5um) range, EF compliant.
- Loss testing automation & reporting with AutoTest and KITS™ software.
- Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 50 dB range.
- Generally meets safety regulations & standards based test procedures.
Connector & Battery Summary
SC interchangeable connector adapters. Meter accepts PC & APC polish. Source accepts PC polish. Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging. Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Features
Features

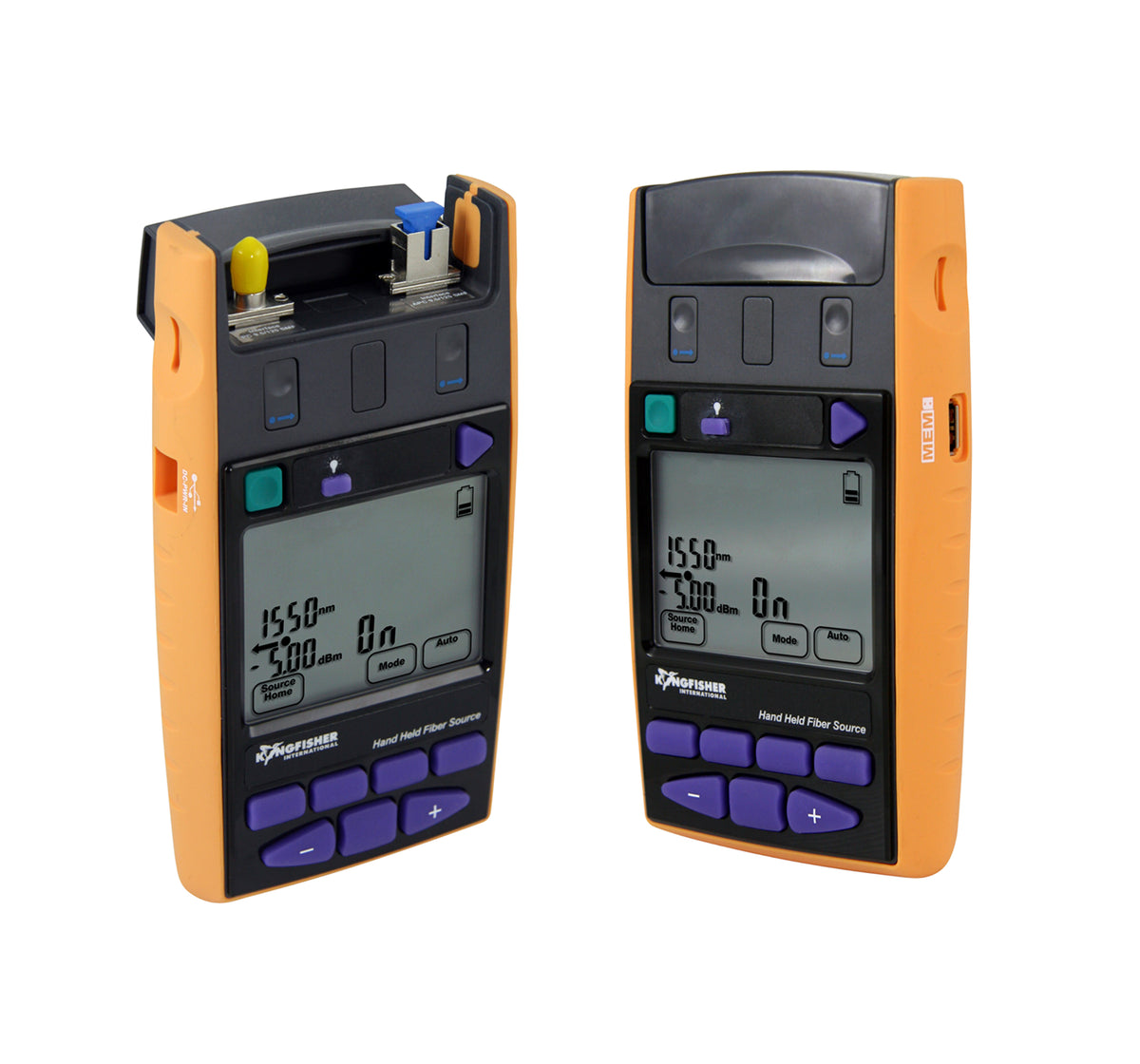

- LED & LASER QUAD OPTICAL TEST SOURCE T2824

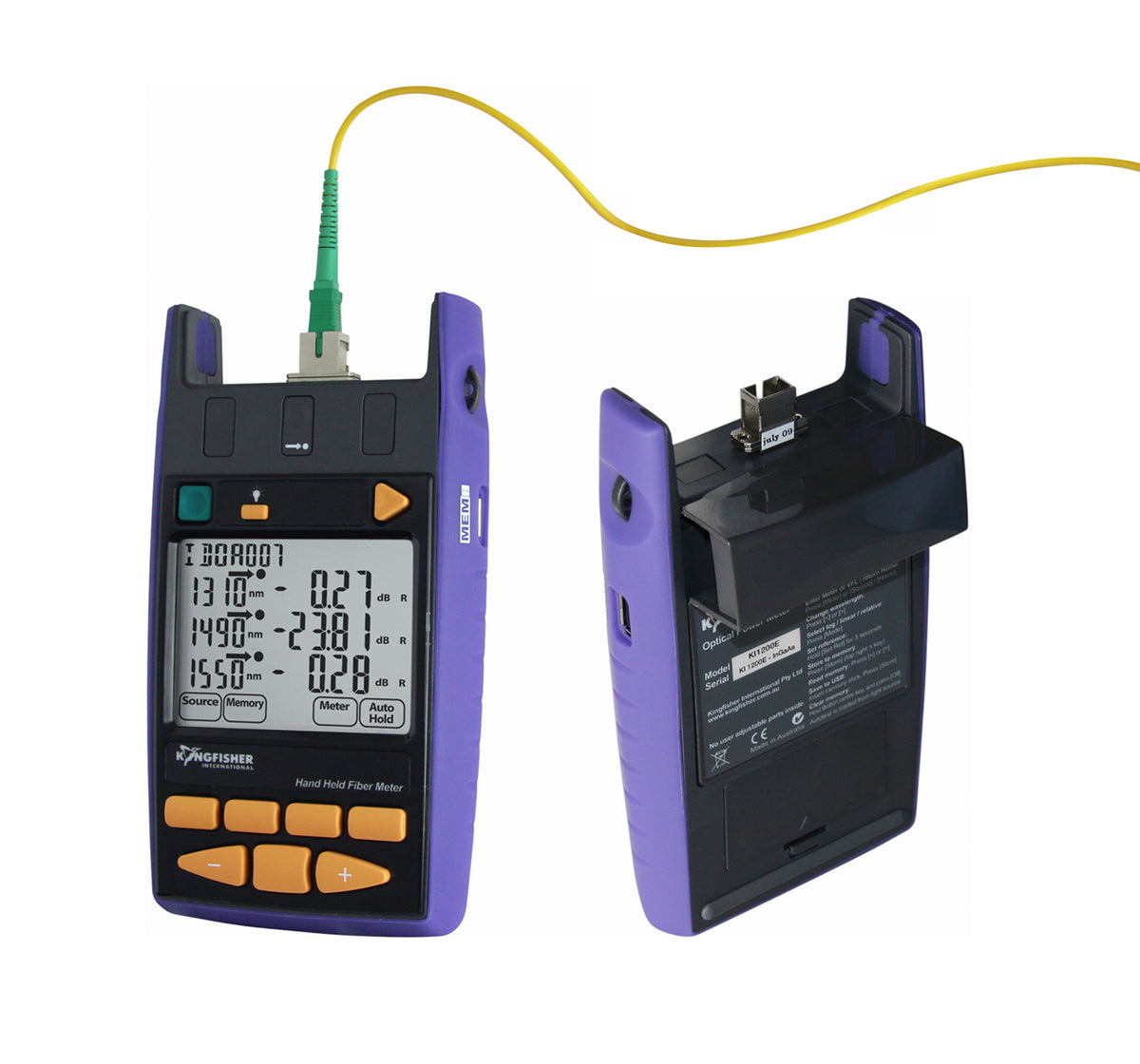

- HANDHELD OPTICAL POWER METER T2600
- PADDED CANVAS CARRY POUCH OPT149
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| HANDHELD OPTICAL POWER METER T2600 | |
| DETECTOR TYPE | INGAAS |
| CALIBRATION ACCURACY | 1% (0.06 DB) |
| RESPONSE WAVELENGTH | 600 ~ 1700 NM |
| CALIBRATION WAVELENGTHS | 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 NM |
| POWER RANGE | +10 ~ -60 DBM (FOR 780 ~ 980 NM) / +10 ~ -70 DBM (FOR 1270 ~ 1650 NM) |
| MID-RANGE LINEARITY | 0.04 DB (TYPICAL) |
| TOTAL UNCERTAINTY | 0.3 DB (MAX) |
| WAVELENGTH SENSITIVITY (± 30 NM) | 0.03 DB (TYPICAL) |
| ID TONE DETECTION & AUTOTEST SENSITIVITY | UP TO -50 DBM |
Additional Information
| Product Videos | |
|---|---|
FIBER OPTIC LOSS TESTING TUTORIAL: HANDHELD TESTERS & FIBER TRAINER |
What's in the Box
What's in the Box
- LED & Laser Quad Optical Test Source (T2824)
- Handheld Optical Power Meter (T2600)
- Padded Canvas Carry Pouch (OPT149)
