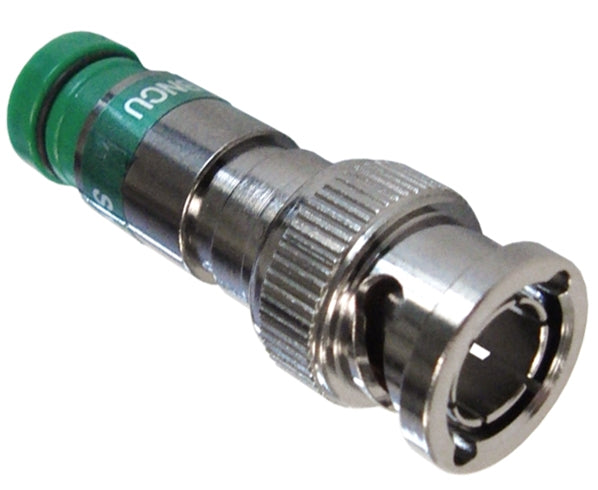

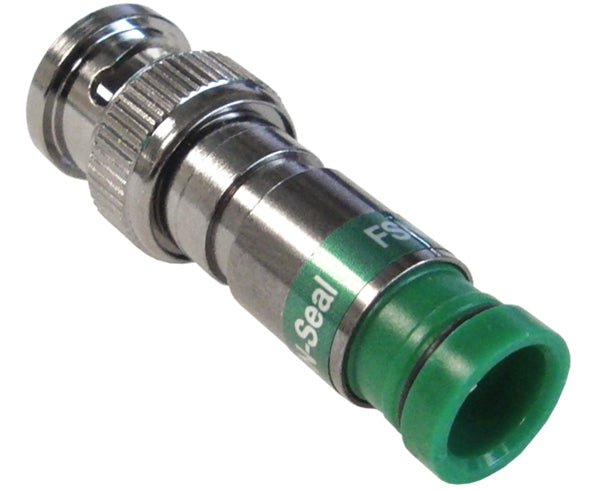

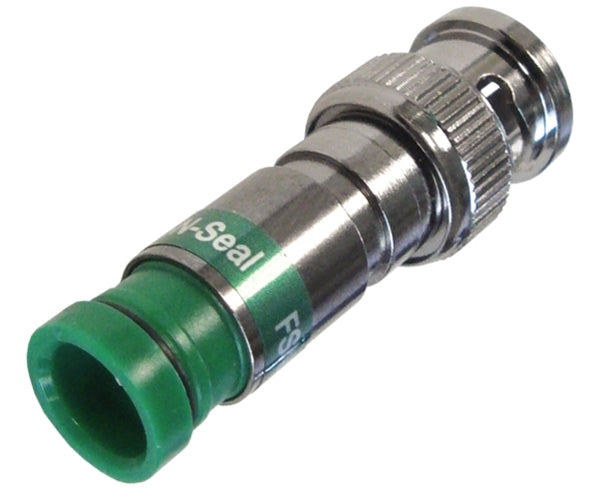

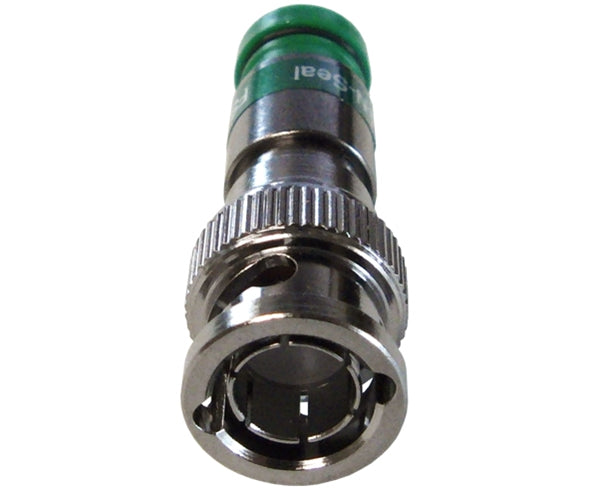

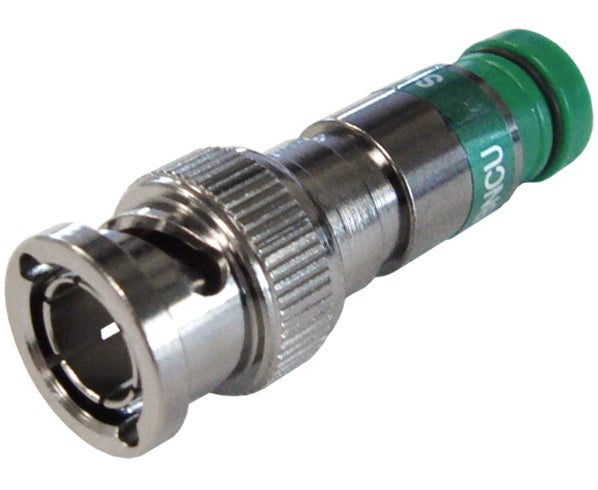

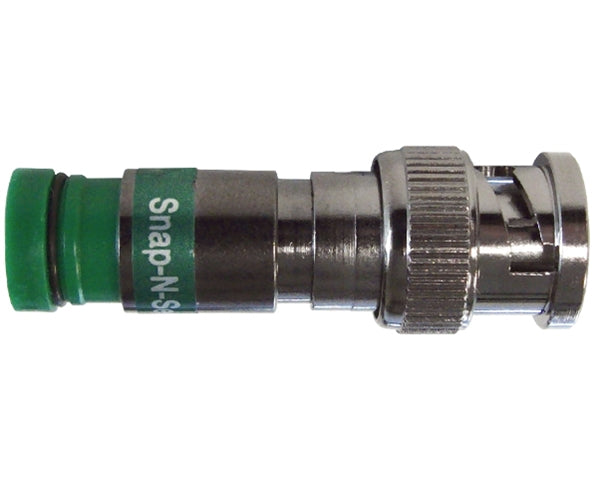

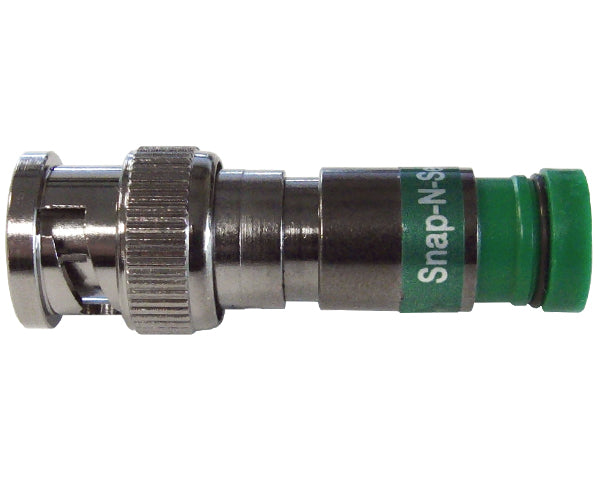

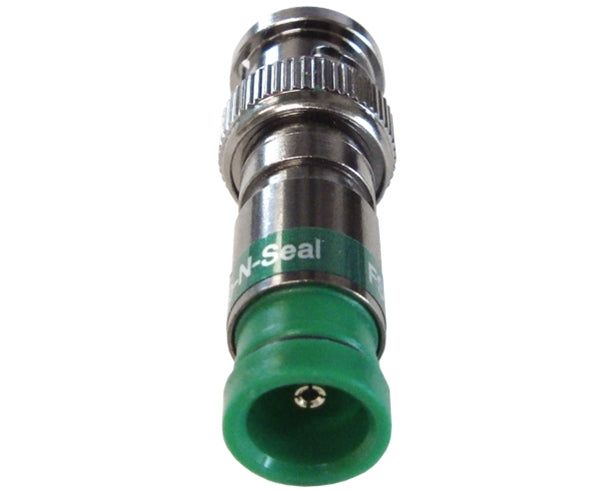

Pro Snap N Seal® RG6 BNC Coax Cable Connector
The Pro Snap N Seal® RG6 Universal BNC Connector incorporates a patented 360-degree floating pin basket, enhancing the accuracy of cable conductor insertion. Positioned at the connector's rear, it facilitates simpler and more precise conductor insertion. This design promotes correct alignment, initiating compression around the cable center conductor through an outer plastic sleeve.
Where to use Coaxial Cable
A broad range of applications exists for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV) and TV Cable Wire, Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras and GPS Systems.
Applications
Coaxial cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors, allowing the cable to be installed next to metal objects without power loss. Coaxial Cables also provide protection of the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distribute cable television signals.
Features
Features
Pro Snap N Seal® RG6 Universal BNC Series 6 Connector for Standard and Quad Shield, Green Ring
- RG6 BNC compression connector featuring TRUE 360º compression, providing superior RF shielding.
- Nitin finish and UV-resistant plastic make this an environmentally sound and durable product.
- Fits a standard shield & quad shield.
- Non-blind cable entry for easy cable insertion.
- Plastic compression sleeve provides the industry's lowest handle compression force.
- 75 Ohm Impedance
- Meets or exceeds all SCTE standards.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MECHANICAL CHARACTERISTICS | |
| CONNECTOR SYSTEM COMPATIBILITY | COAX |
| CONNECTOR INTERFACE TYPE | BNC |
| GENDER | MALE - PLUG |
| CONNECTOR SERIES NAME | PROSNS |
| COLOR BAND | GREEN |
| LOCKING | NO |
| TOOL COMPATIBILITY | CPLCCT‑SLMR OR CPSNSCT‑596 (COMPRESSION), PSA59/6 (STRIP) |
| TERMINATION TYPE | COMPRESSION |
| CABLE CENTER CONDUCTOR DIAMETER LIMITS | .0399 - .0418 INCH |
| CABLE DIELECTRIC DIAMETER LIMITS | .180 - .193 INCH |
| CABLE OUTER JACKET DIAMETER LIMITS | .265 - .305 INCH |
| CABLE INSERTION FORCE | 20 LBF |
| CABLE RETENTION FORCE | 40 LBF |
| MATERIALS | |
| NUT | NICKEL/TIN PLATED BRASS |
| O‑RING | ETHYLENE PROPYLENE |
| BODY | NICKEL/TIN PLATED BRASS |
| CONTACT | GOLD PLATED |
| ELECTRICAL CHARACTERISTICS | |
| NOMINAL CHARACTERISTIC IMPEDANCE | 75 OHM |
| RETURN LOSS | ≥ -32 DB UP TO 1 GHZ TYPICAL |
| TEMPERATURE RANGE | |
| OPERATING TEMPERATURE RANGE | -40°F (-40°C) TO 140°F (60°C) |
| STANDARDS | |
| RG TYPE | 6 |
| APPLICABLE ENVIRONMENTAL AND OTHER PROGRAMS | |
| ENVIRONMENTAL SPACE | INDOOR/OUTDOOR |
| EU CE MARK | YES |
| SUITABILITY | |
| SUITABILITY - INDOOR | YES |
| SUITABILITY - OUTDOOR | YES |
| PLENUM / NON-PLENUM | |
| PLENUM (Y/N) | NO |
