Description

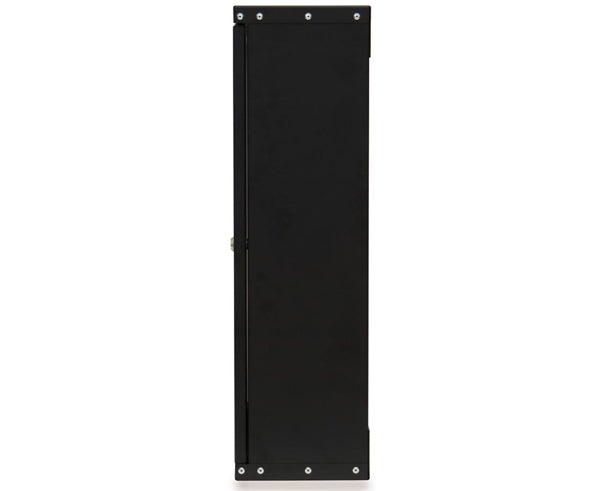

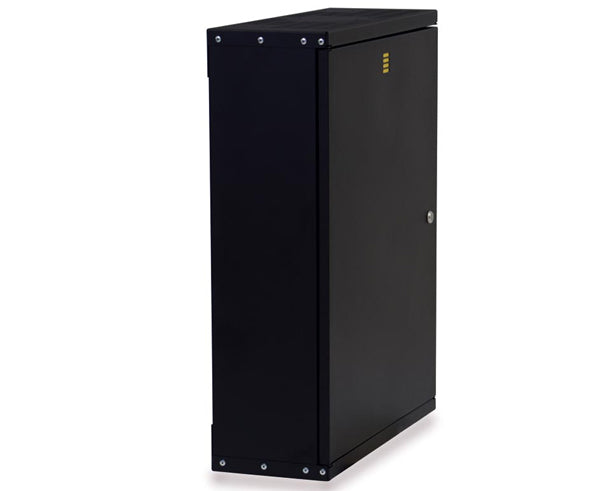

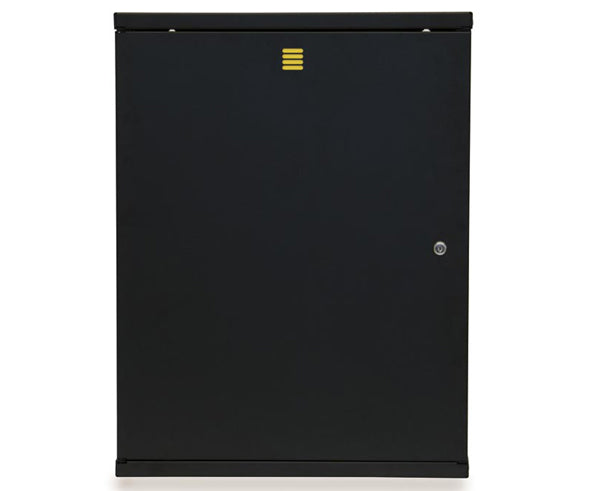

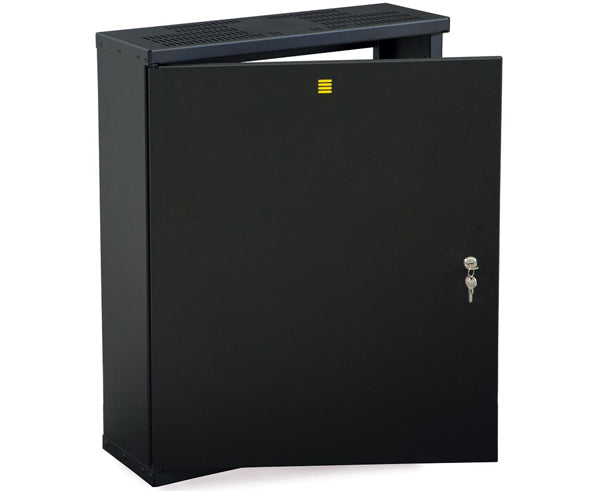

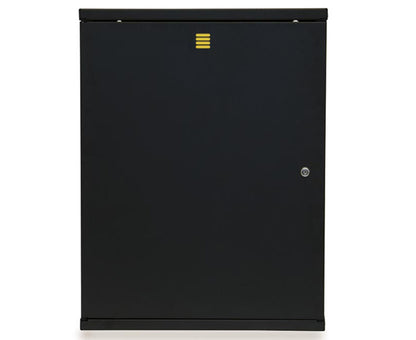

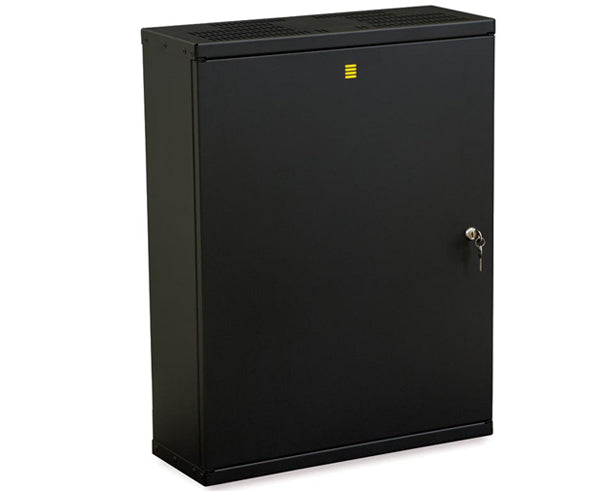

Enclosed V-Rack Cabinet, Network Rack, 3U / 6U
The Kendall Howard Enclosed V-Rack Cabinets are the perfect solution for tight spaces, network closets, and small network rooms. The open back design can fit over most pre-terminated network equipment and is offered in two sizes (3U & 6U). Keep your equipment protected in a Kendall Howard Enclosed V-Rack Cabinet
- 150 lbs. weight capacity
- Adjustable vertical and horizontal mounting rails and vertical sliding rails
- 6" maximum usable depth
- Locking front door
- Solid sides
- Hanging bracket for ease of installation
- Welded frame construction
- Made in the USA
- Limited Lifetime Warranty
Features
Features
- Solid, Secure Enclosure - Made of Cold Rolled Steel and has a welded frame. Solid side panel and a locking front door.
- Cable Knockouts - Two cable knockouts on top and two cable knockouts on the bottom panel.
- Fan Knockout - Knockouts on top and bottom to accommodate a 120 MM fan.
- Adjustable Rails - Includes adjustable horizontal and vertical mounting rails, and vertical sliding rails to easily access mounted equipment
- Easy to Hang on the Wall - Hanging bracket included making it easy for a one person install. Hanging bracket is to help assist mounting to the wall. See instruction manual.
Specifications
Specifications
3U
|
Width |
21.41 |
|
Depth |
8.0 |
|
Height |
27.99 |
|
Weight |
33.00 lbs |
|
Material(s) |
CRS (Cold Rolled Steel) |
|
Color/Finish |
Textured Black Powder Coat |
|
UPC |
879447005745 |
|
Warranty |
Limited Lifetime Warranty |
6U
|
Width |
21.41 |
|
Depth |
13.906 |
|
Height |
27.99 |
|
Weight |
41.00 lbs |
|
Material(s) |
CRS (Cold Rolled Steel) |
|
Color/Finish |
Textured Black Powder Coat |
|
UPC |
879447005752 |
|
Warranty |
Limited Lifetime Warranty |
Additional Information
Fixed Wall Mount Enclosure AccessoriesWall mount racks and enclosures are a cost effective solution for protecting your server equipment from physical damage, as well as protecting it from tampering. We offer a variety of fixed wall mount racks and adjustable rail kits to help you protect and organize your data network.
To learn more about our Fixed Wall Mount Enclosures please visit our overview page. Kendall Howard's Server Enclosures can be combined with a wide array of products such as:
What's in the Box?
What's in the Box? 3U
- Qty 1 - Hanging Bracket
- Qty 2 - Vertical Mounting Rail
- Qty 2 - Horizontal Mounting Rail
- Qty 2 - Vertical Slide Out Rail
- Qty 12 - 10-32 x 0.375 Button Head
- Qty 24 - 10-32 x 0.750 Rack Screws
What's in the Box? 6U
- Qty 1 - Hanging Bracket
- Qty 2 - Vertical Mounting Rail
- Qty 2 - Horizontal Mounting Rail
- Qty 2 - Vertical Slide Out Rail
- Qty 12 - 10-32 x 0.375 Button Head
- Qty 25 - 10-32 x 0.750 Rack Screws
